MIC Aseptic Syringe Filling Equipment ( 2000 Syringes/h )
MIC Aseptic Syringe Filling Equipment ( 2000 Syringes/h )
MIC Aseptic Syringe Filling Equipment ( 2000 Syringes/h )
MIC Aseptic Syringe Filling Equipment ( 2000 Syringes/h )
MIC Aseptic Syringe Filling Equipment ( 2000 Syringes/h )
  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY
Accurately fill and control bubbles when plugging. Automatic operation, full monitoring. In addition to normal liquids, it is also suitable for filling prefilled, oral, aseptic syringe (BD tube).


5 synovial fluid filling nozzle. 4 sets of servo motors (Jingchuan, Japan), accurate filling and plugging in the filling process, reliable and accurate line-by-line movement.

S/S rotary pump. Filling volume settings and precision adjustments operate on the touch screen without any tools.
Siemens color touch screen. Real-time monitoring and display of various operating conditions, vacuum pressure, nitrogen pressure, C/A pressure, fault alarm and position indication, fault indication and recording. Multi-language display.
Use MVS (Machine Vision System) to monitor plug quality to ensure greater acceptability (optional).
Process parameters can be printed, stored and retrieved in a timely manner.
All contact parts are made of SUS316L and medical silicone rubber. The machine is coated with SUS304 and 6061 oxidized aluminum alloy.

The pre-filled syringe filling machine is an automatic pre-filled pre-sterilized syringe produced by BD, BG and major suppliers in China. The process flow is: syringe sleeve feeding, paper cover opening/polishing, vacuum filling, vacuum insertion. The plug and the barrel are discharged.


Automatic plug feeding system


     plug feeding cage with vibrating pate is connected to a pipe that carries the plug ,They automatically arranges the plug and deliver the plug into the filling machine

    In this way, reducing the manual contact with the plug, and ensuring plug hygiene,At the same time, labor costs are reduced

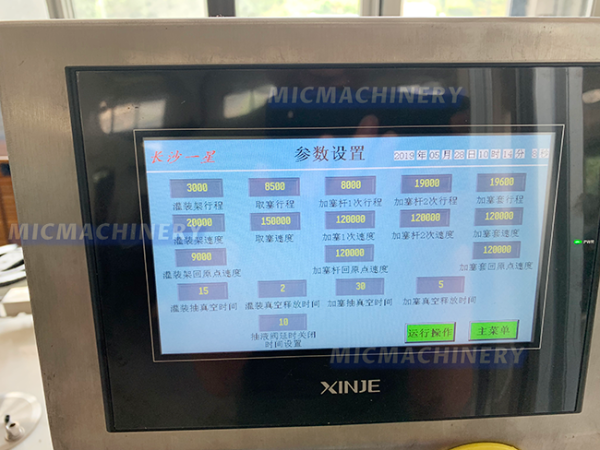

Control panel

The control panel on the filling machine is the core of the machine,it consists of touch screen,power switch, emergency button You just need to press the corresponding button and the machine will follow the correct program.

    An Alarm Screen will also be included on automatic filling equipment to notify packagers when there is an issue with the filling equipment or the packaging line in general. In addition to notification, the screen can assist with identifying the issue if the same is not immediately obvious.

If you want to know more models of filling machine, you can refer to the table below:




Syringe Filling Machine

model

SGJ

SGJ-1

SGJ-2

SGJ-3

application

medicine, chemistry, biology,etc

Packing type

various syringes, boosters, injection tubes,etc

speed

5000pcs/h

20-30pcs/min

800-1000pcs/h

800-1000pcs/h

Filling arrange

0.5-50ML

5-100ML

0.5-50ML

0.5-50ML

power

3.5KW

2KW

2KW

2KW

size

2500*1350*1600mm

1380*1030*1800mm

1800*800*1700mm

1800*800*1700mm

weight

1500KG

390KG

450KG

450KG


    In addition to,If you're looking for syringe filling machine,pre filled syringe filling machine manufacturers,syringe filling equipment,pfs filling machine,automatic syringe filler,syringe filling machine manufacturer,automatic syringe filling machine,syringe filling machine manufacturers,prefilled syringe filling machine,prefilled syringe machine,oral syringe filling machine,aseptic syringe filling equipment,sterile syringe filling machine,prefilled syringe machine manufacturers,syringe filling machine price.You can browse our product website more.

    If you are more than interested in the machine ,you can contact us at market@micmachinery.com


    In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Applicable specifications
1-10ML glass tube
Production
2000 hours per hour
Filling pump
3 sets of ceramic rotary valve pumps
Filling accuracy
±5‰
Passage pass rate
≥98%
Rotary rod pass rate
≥98%
Electric power
6kw, 380v, 50hz
Total mass
1300kg
Dimensions
3200x1750x2000 (mm)

Servo motor, driver
LG Touch screen
Pro-face
Motion controller
Beckhoff Germany
Circuit breaker, contactor
SIEMENS
Miniature relay
Panasonic
Switching power supply
Taiwan meanwell
Photoelectric detection switch
Autonics
Protective cover
Organic glass
Vacuum pump and vacuum system
Come with the machine
Surface of the machine
304 stainless steel
Filling and plugging nozzle
316 stainless steel
