Title: Streamlining Corrosive Liquid Filling: The Precision of the 16-Heads Linear Filling Machine
In industries where corrosive liquids are handled, precision, efficiency, and safety are paramount considerations. The 16-heads linear filling machine stands as a beacon of excellence in this regard, offering unparalleled performance in filling corrosive liquids while ensuring utmost accuracy and safety. Let's delve into how this equipment excels as an anti-corrosive liquid filling machine, corrosive liquid filling machine, and automatic corrosive liquid filling machine.

Maximizing Performance with the 16-Heads Linear Filling Machine
Efficiency Amplification: With sixteen heads, this filling machine operates with exceptional efficiency, enabling rapid and simultaneous filling of multiple containers with corrosive liquids. This multi-head configuration significantly enhances production throughput, reducing downtime and maximizing resource utilization.

Precision Engineering: The linear filling mechanism ensures precise dosing of corrosive liquids into each container. Advanced control systems and precision dosing mechanisms maintain consistent fill levels, enhancing product quality, and minimizing wastage while mitigating the risk of spills or leaks.

Safety Features: Built with materials resistant to corrosion and equipped with stringent safety measures, the 16-heads linear filling machine prioritizes operator safety and environmental protection. Robust construction and specialized components safeguard against chemical reactions or equipment damage, ensuring a secure production environment.

Serving as an Anti-Corrosive Liquid Filling Machine, Corrosive Liquid Filling Machine, and Automatic Corrosive Liquid Filling Machine
Anti-Corrosive Liquid Filling Machine: Engineered specifically for handling corrosive substances, this machine is designed with corrosion-resistant materials to ensure safe and reliable filling operations. Its robust construction and specialized components protect against degradation, preserving both equipment integrity and product quality.

Corrosive Liquid Filling Machine: Tailored for corrosive liquid filling applications, this machine facilitates accurate dispensing of corrosive liquids into various containers. Its high-speed operation and precision dosing mechanisms ensure consistent fill levels, minimizing product wastage and maximizing efficiency.

Automatic Corrosive Liquid Filling Machine: Offering fully automated operation, this machine streamlines the filling process, minimizing operator intervention and maximizing efficiency. Programmable settings and intuitive controls enable seamless integration into automated production lines, optimizing workflow and productivity.

Conclusion
In industries handling corrosive liquids, the 16-heads linear filling machine represents the pinnacle of precision, efficiency, and safety. Whether serving as an anti-corrosive liquid filling machine, corrosive liquid filling machine, or automatic corrosive liquid filling machine, it plays a crucial role in maintaining operational integrity and meeting regulatory requirements. By investing in this advanced equipment, manufacturers can optimize their processes, enhance safety standards, and ensure consistent product quality, even in the most challenging environments.

This gravity filling machine is suitable for:

Bleach, pesticide, chemical liquid with chloridoid other similar products.


This machine function is:

1.      Automatic bottle sensing system and filling

2.      No bottle no filling

3.      Filling error is control within 1‰

4.      Machine is PP material for anti-corrosive function.

5.      Automatic filling with diving system to avoid liquid foam.

6.      Can be customized for different bottle and caps.

7.      Can be equipped with cleaning system.


This machine filling system is made for Bleach, pesticide, chemical liquid with chloridoid other similar products., easy clean and changes.

It is a practical machine for production and clean, 24 hours runs none stops, hardly have machine break down once well adjusted.

Machine filling accuracy max is at +/-1%, filling is controlled by timer, so volume is as client needed.


This machine is mechanical transmission, it is well developed machine, use life more than 15 years.


This machine is guaranteed for one year and you can extent your guarantee easily by discuss with our sales.

Which you might be interested, under guaranteed, machine parts got broken by daily use, we will replace it once we are informed by free DHL.

7. Having a stable and reliable operation, high production efficiency, strong adaptability.

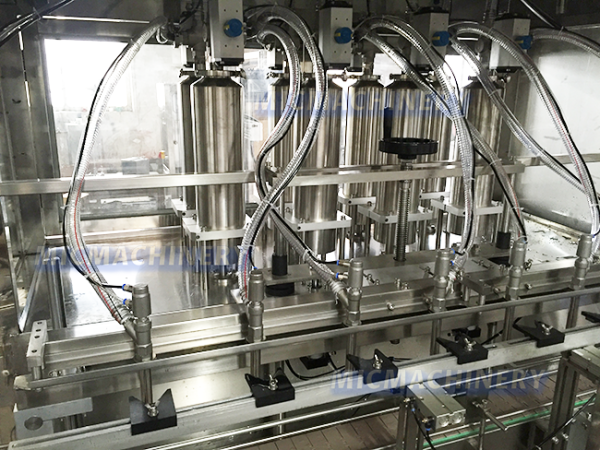

filling head

    The Bleach is put into the material cylinder, the piston to pump the Bleach into the measuring cylinder. Then the piston moves up to send the Bleach to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.

    (Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrels mouth)

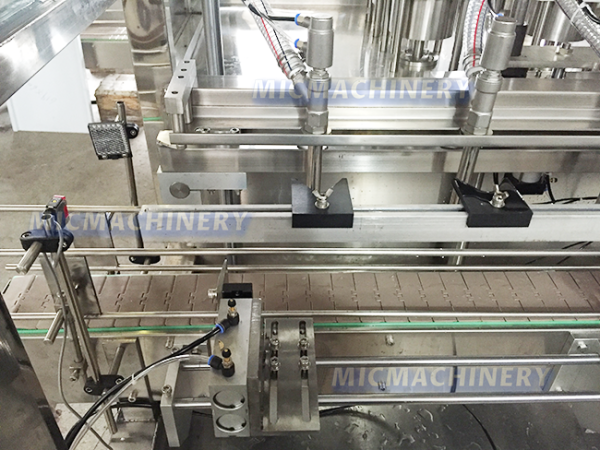

Conveyor belt

    When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.

    This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

    on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap

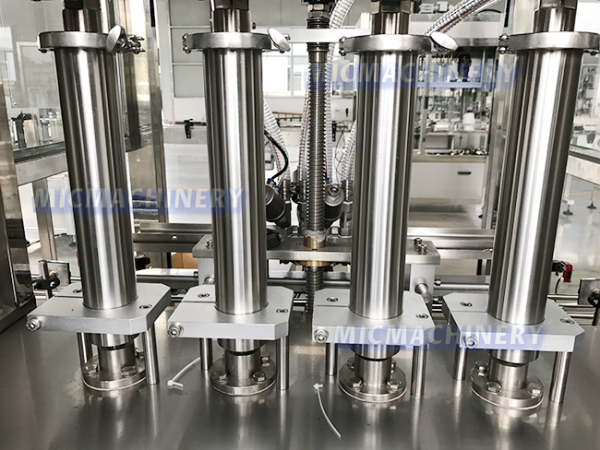

Measuring cylinder

   The function of measuring cylinder cylinder is mainly quantitative filling, its use can make your filling accuracy higher, driven by servo motor, control the movement of the piston rod, the Piston moving down extract the material from the material cylinder to the measuring cylinder cylinder, and then the piston moves up to the dose of the cylinder cylinder in the material to the filling pipeline.


   (The size of dose cylinder can be customized according to your needs)

If you want to know more models of filling machine, you can refer to the table below:


Model

MIC V01

MIC-ZF4

MIC-ZF6

MIC-ZF8

MIC-ZF12

MIC-ZF16

MIC-ZF20

Application

High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On

Packing Type

Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc

Speed

(basis on 50-500ml)

1500 B/h

2000B/h

2500B/h

3000 B/h

4000B/h

5000 B /h

6000 B/h

Filling Arrange

10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)

Power

30W

3.5Kw

3.6kw

3.7kw

3.8kw

3.9Kw

4.0Kw

Size

1000*480*700

mm

1400*1450*2270

mm

1400*1450*2270

mm

1700*1450*2270

mm

2000*1450*2270

mm

2300*1450*2270

mm

2600 *1450*2270

mm

Weight

35 Kg

500kg

600kg

700kg

800Kg

900 kg

1000 kg


in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Filling Head
16heads
Speed
4000BPH (base on1L)
Filling Volume
1-2L
Suitable Bottleneck Diameter
Ф40mm-Ф100mm
Votage
220V/380V
Power
1kw
Metering Error
≤±0.5‰
Working Pressure
0.55Mpa-0.65Mpa
Dimension
2000mm × 1000mm× 2200mm
Weight
700 kg

Name

Brand

Touch Screen

Canada Xinjie Color

PLC

Schneider

Optoelectronic System

OPTEX

Micro Differential Pressure Switch

JOHNSON CONTROLS

Solenoid Valve

Taiwan  Airtac

Air Cylinder

Taiwan Airtac

Air Source Treatment

Taiwan  Airtac

Pneumatic Valve

VAA

Transducer

Schneider

Switching Power Supply

Taiwan Meanwell

Machine Material

Using PVC polypropylene acid alkali resistance anticorrosive material
