This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.


1. Adopt PLC programmable control system with touch screen interface.


2. Automatic bottle feeding, automatic filling, automatic bottle.


3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.


4. Adopt double-ball screw rod filling the filling nozzle dive


5. It can be used with capping machine, labeling machine supporting the formation of the production line


6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.


7. Having a stable and reliable operation, high production efficiency, strong adaptability.


filling head


    The disinfectant is put into the material cylinder, and the piston to pump the disinfectant into the measuring cylinder. Then the piston moves up to send the disinfectant to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.

     (Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrels mouth)

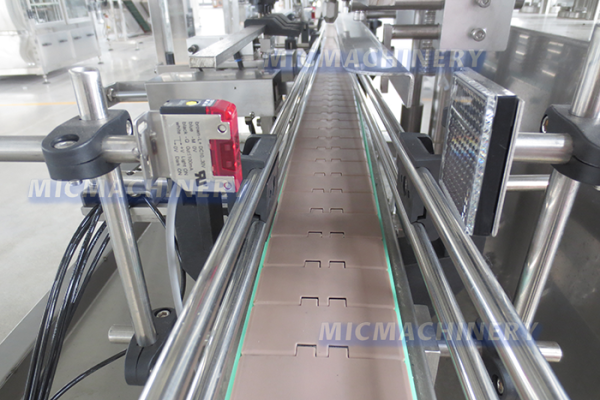

Conveyor belt

    When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.

    This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

on the side of the conveyor is equipped with sensors that can     automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap

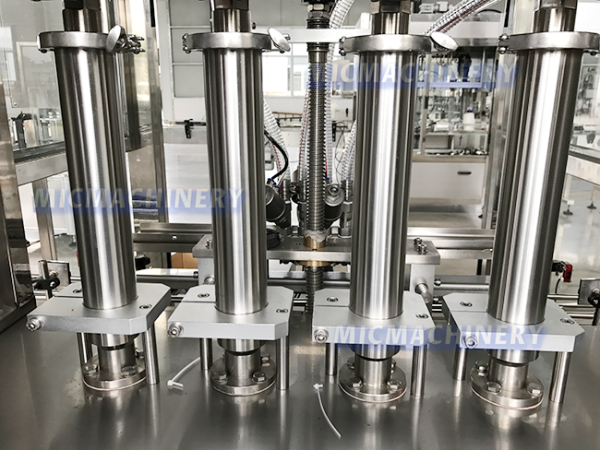

Measuring cylinder

   The function of measuring cylinder cylinder is mainly quantitative filling, its use can make your filling accuracy higher, driven by servo motor, control the movement of the piston rod, the Piston moving down extract the material from the material cylinder to the measuring cylinder cylinder, and then the piston moves up to the dose of the cylinder cylinder in the material to the filling pipeline.


   (The size of dose cylinder can be customized according to your needs)


If you want to know more models of filling machine, you can refer to the table below:


Model

MIC V01

MIC-ZF4

MIC-ZF6

MIC-ZF8

MIC-ZF12

MIC-ZF16

MIC-ZF20

Application

High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On

Packing Type

Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc

Speed

(basis on 50-500ml)

1500 B/h

2000B/h

2500B/h

3000 B/h

4000B/h

5000 B /h

6000 B/h

Filling Arrange

10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)

Power

30W

3.5Kw

3.6kw

3.7kw

3.8kw

3.9Kw

4.0Kw

Size

1000*480*700

mm

1400*1450*2270

mm

1400*1450*2270

mm

1700*1450*2270

mm

2000*1450*2270

mm

2300*1450*2270

mm

2600 *1450*2270

mm

Weight

35 Kg

500kg

600kg

700kg

800Kg

900 kg

1000 kg







    In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Filling Head

8 heads

Filling Volume Range

50-1000ml(Use 1000ml piston cylinder)

Production Speed

1800 Bph basis on 1000ml bottle

Voltage

220v/380v

Power

3kw

Suitable Bottle’s Diameter

Ф40mm-Ф100mm

Filling Error

≤±1

Work Pressure

0.55Mpa-0.65Mpa

Size

2000mm × 1400mm× 2500mm

Weight

1000kg

Touch Screen

Canada xinjie color

PLC

Schneider

Solenoid Valve

Taiwan Airtac

Optoelectronic System

OPTEX

Micro Differential Pressure Switch

Netherlands

Servo Motor

Taiwan TECO

Air Source Treatment

Taiwan Airtac

Button and Low Voltage Electric Appliance

Schneider

Ball Screw

Taiwan

Reducer

Taiwan VGM

Switching Power Supply

Taiwan meanwell

Material

Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel
