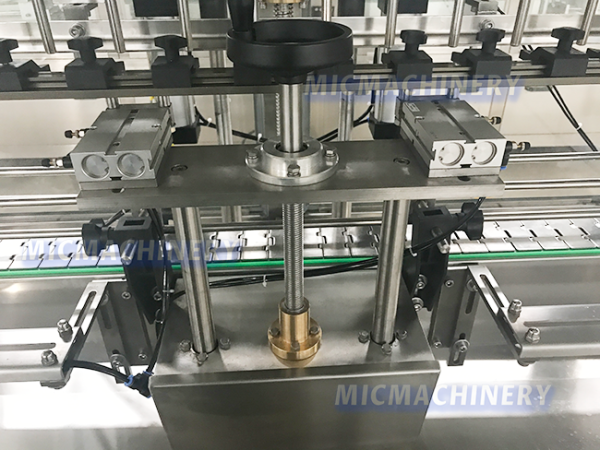

This ZF16 Automatic Bottle Filling Machine adopts serve ball-screw system to drive the piston cylinder. It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Syrup, Detergent, Honey, Shampoo, Lotion, Lubricant oil, etc.

The machine adopts PLC control, according to the filling bottle, fixed discharging mouth, the rest all operation can be finished on a touch screen. In addition to have common automatic servo piston filling machine advantages, also the widened the range of filling material. Such as filling material contains particles, long strips of solid content, also can be a very effective filling.

The installation can be provided by the we Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with we Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer to the customer for operation and maintenance procedure.

Introducing the Cutting-Edge 16 Heads Linear Filling Machine: Revolutionizing Plastic Bottle Filling and Packing

In the dynamic landscape of modern manufacturing, the demand for efficient and precise packaging solutions has never been higher. Enter the state-of-the-art 16 Heads Linear Filling Machine – a game-changer in the realm of plastic bottle filling and packing. This innovative machinery embodies excellence through its distinct product characteristics, versatile applications, and advanced mechanical principles.

Product Characteristics:
At the heart of this marvel is its 16-head linear design, a testament to efficiency and speed. The machine's precision-engineered filling heads ensure a seamless and uniform filling process, making it an ideal choice for industries demanding accuracy and reliability. Crafted with cutting-edge technology, the plastic bottle filling machine boasts a robust construction that guarantees durability and longevity, making it a sound investment for businesses aiming for sustained productivity.

Product Application:
Versatility lies at the core of this machine's appeal. Tailored for the packaging needs of a diverse range of products, it is particularly adept at filling plastic bottles with various contents. From savory sauces to golden honey and creamy yogurt, this 16 Heads Linear Filling Machine adapts seamlessly to the unique viscosity and requirements of each substance. It caters to the dynamic demands of industries ranging from food and beverage to pharmaceuticals, offering a multifaceted solution for different production lines.

Mechanical Principle:
Understanding the inner workings of this machine unveils its mechanical brilliance. The 16-head configuration operates in a linear fashion, synchronizing the filling process with unparalleled efficiency. The precision-engineered nozzles ensure that each bottle is filled to perfection, eliminating wastage and ensuring consistency in every batch. This linear filling mechanism not only enhances speed but also minimizes downtime, a crucial factor for businesses striving for optimal productivity.

In conclusion, the 16 Heads Linear Filling Machine represents a pinnacle in plastic bottle filling and packing technology. With its robust product characteristics, versatile applications, and advanced mechanical principles, it stands as a beacon of efficiency in the ever-evolving landscape of manufacturing. Whether you're in the business of sauces, honey, or yogurt, this machine is poised to elevate your production processes to new heights of precision and reliability.


Conveyor belt

When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.

This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap

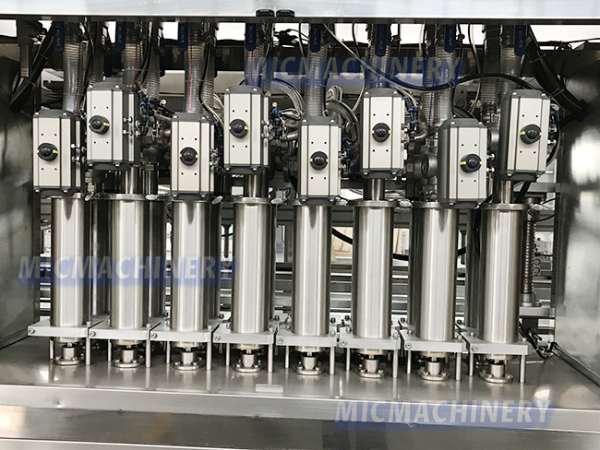

the three-way valve and Measuring cylinder

the three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.

Measuring the effect of cylinder is primarily a quantitative filling, it allows you to have higher filling accuracy,

Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling.



Bottle block air cylinder

When the bottle can reach a certain number, there is a special infrared sensor on the bottle track to receive the induction, and then automatically stuck behind the bottle, in front of the bottle after the bottle filling, and then let the behind the bottle to fill the vacancy, so as to achieve no bottle no filling




If you want to know more models of filling machine, you can refer to the table below:


Model

MIC V01

MIC-ZF4

MIC-ZF6

MIC-ZF8

MIC-ZF12

MIC-ZF16

MIC-ZF20

Application

High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On

Packing Type

Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc

Speed

(basis on 50-500ml)

1500 B/h

2000B/h

2500B/h

3000 B/h

4000B/h

5000 B /h

6000 B/h

Filling Arrange

10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)

Power

30W

3.5Kw

3.6kw

3.7kw

3.8kw

3.9Kw

4.0Kw

Size

1000*480*700

mm

1400*1450*2270

mm

1400*1450*2270

mm

1700*1450*2270

mm

2000*1450*2270

mm

2300*1450*2270

mm

2600 *1450*2270

mm

Weight

35 Kg

500kg

600kg

700kg

800Kg

900 kg

1000 kg



In addition to,we have edible oil filling machine,olive oil filling machine,cooking oil filling machine,vegetable oil filling machine,olive oil bottling machine.

If you are more than interested in the machine ,you can contact us at market@micmachinery.com

in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Filling head

16?heads

Filling type

Gravity

Filling capacity

100ml-5000ml

Production speed

It can achieve 3200 bottles per hour

Power supply

220V/380V Single-phase

Power

2Kw

Suitable bottle size

Ф40mm-Ф100mm

The measurement error

≤±0.5%

Working pressure

0.55Mpa-0.7Mpa

Dimension

2440mm × 1240mm × 2350mm

Gas consumption

0.9m3/min

Machine weight

700 kg

Touch screen

Canada Xinje color screen

PLC programmable

Schneider France

Solenoid valve

Taiwan Yadeke

Photoelectric system

Japan stately

Differential switch

Holland

Source

Taiwan Yadeke


Button and other low-voltage
electrical appliances


France Schneider

Reducer

Taiwan VGM

Alarm

Real-time fault alarm and emergency stop automatically

Material


Use 316 stainless steel in contact with the material,
the other main parts are made of 304 stainless steel


Sealing ring


Use of carbon PTFE fiber materials,
anti-corrosion,wear resistance, good sealing
