MIC-L40 Bottling Line (Speed 20-40 Bottles/m)
MIC-L40 Bottling Line (Speed 20-40 Bottles/m)
MIC-L40 Bottling Line (Speed 20-40 Bottles/m)
MIC-L40 Bottling Line (Speed 20-40 Bottles/m)
MIC-L40 Bottling Line (Speed 20-40 Bottles/m)
  • Feature
  • Parameter
  • Configuration
Title: Elevate Your Small-Scale Production with Our Bottling Line Solution

Description:
Maximize efficiency and productivity in your small-scale production with our comprehensive Small-Scale Bottling Line solution. Engineered for exceptional performance and versatility, this innovative system is designed to streamline your operations and optimize output.

Effortlessly handle the entire bottling process from start to finish with our integrated solution. Our Small-Scale Bottling Line includes a range of equipment tailored to your needs, from bottle washing and filling to capping and labeling, ensuring seamless production from start to finish.

Experience seamless integration and operation with our user-friendly interface and customizable settings. With adjustable fill volumes, capping pressures, and labeling options, you have complete control over every aspect of the bottling process, ensuring precise and consistent results.

Boost productivity and minimize downtime with the reliability and durability of our Small-Scale Bottling Line. Built to withstand the demands of small-scale production, our equipment delivers exceptional performance, ensuring consistent output and superior product quality.

Invest in performance, versatility, and reliability with our Small-Scale Bottling Line solution. Stay ahead of the competition and meet the demands of today's market with ease. Contact us now to discover how this comprehensive solution can transform your small-scale production process.

Introduction

1. The work process: bottle / bottle - bottle (optional) - filling - plus dropper / (plus Nesse - on the cover) - screw cap - labeling / sets of standard Optional) - code / code (optional) - box (optional).

2. The machine uses a mechanical hand screw cap, equipped with automatic sliding device to prevent damage to the cap.

3. Peristaltic pump or piston pump filling, accurate measurement, easy to operate.

4. Filling system has suction function, liquid no drip.

5. Color touch screen display, PLC control system, no bottle is not filling (peristaltic pump) / no inner plug / not on the cover.

6. The whole line of small and exquisite, fast, high degree of automation, significant savings in labor costs.

7. The machine is the main electrical components are well-known brands.

8. The whole shell made of 304 stainless steel, easy to clean, the machine meets GMP requirements.

This machine is suitable for 2-50ML various kinds of circular flat plastic or glass bottle of eye drops filling. The machine by the high-precision cam indexing mechanism to provide sub-sub-disc positioning on the plug cover; acceleration cam drive to provide rotation Capping the head of the lift; constant torque screw cap; peristaltic pump metering filling; touch screen control. No bottle is not filling, no inner plug, cover. With precise positioning, smooth transmission, protective cap, measurement standard.



Filling head

When the bottle through the conveyor belt was sent to the location of the chuck, automatic identification of sensors, control by internal program to send signals for filling station, when the bottle comes under the filling head, cylinder head began to move down the drive filling, filling process without dripping, do not waste material, also can ensure the bottle clean and tidy, convenient after labeling.

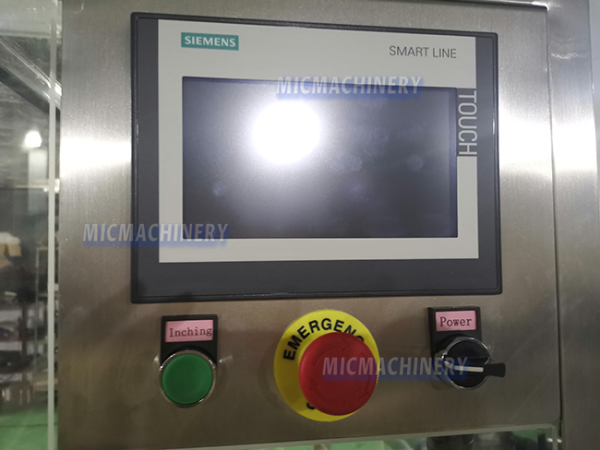

Control panel by Siemens touch screen

The control panel on the filling machine is the core of the machine,it consists of touch screen,power switch, emergency button You just need to press the corresponding button and the machine will follow the correct program.

An Alarm Screen will also be included on automatic filling equipment to notify packagers when there is an issue with the filling equipment or the packaging line in general. In addition to notification, the screen can assist with identifying the issue if the same is not immediately obvious.

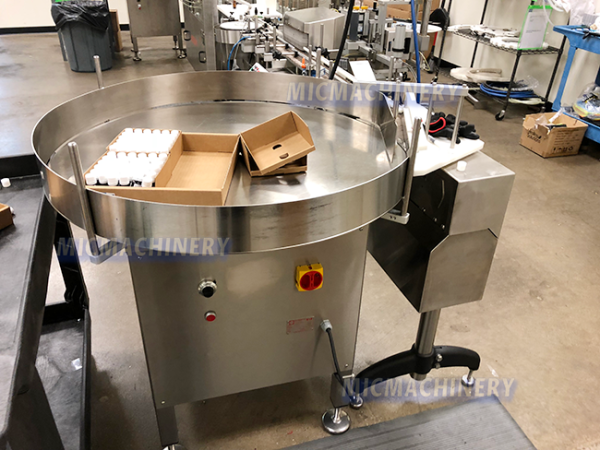

Automatic sorting device for the lid

 Its main role is going to filling the bottle, hand put the bottle to the machine, open the bottle on the button on the touch screen, start automatically on the bottle, the bottle to the filling machine by the conveyor belt This process greatly save labor costs, and its work efficiency is very high, save time and effort.



If you want to know more models of filling machine, you can refer to the table below:


Vial Filling Machine

model

FC-30

FC-X40

FC-P35

FC-P40

FC-T30

FC-N25

FC-E35

FC-Z40

application

cosmetics, daily chemical and pharmaceutical industries such as nail polish, e-liquid, eye drop,etc

Packing type

various round and flat glass and plastic bottles,etc

speed

23-30

pcs/min

30-50

pcs/min

30-40

pcs/min

25-30

pcs/min

20-30

pcs/min

15-25

pcs/min

30-40

pcs/min

30-50

pcs/min

Filling arrange

50-250ML

10-100

ML

10-100

ML

10-100

ML

30-120

ML

2-30

ML

10-100

ML

20-150

ML

power

5kw

2KW

2KW

5KW

2KW

2KW

2KW

2KW

size

2000*1000*1700mm

1800*1000*1500mm

1800*1000*1500mm

1800*1000*1500mm

1800*1000*1500mm

1800*1000*1500mm

1800*1000*1500mm

2000*1000*1500mm

weight

650KG

550KG

650KG

650KG

650KG

650KG

650KG

600KG



In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.


Technical Parameters:

Filling Volume

5-250ml

Two filling heads

Output

20-40bottles/min

According to the size of bottle

Filling Precision

≤±1%

/

Power Supply

380V/50Hz

According to customer’s requirement

Capping Rate

≥99%

/

Stoppering rate

≥99%

/

Air Supply

1.3 m3/h  0.4-0.8Mpa

/

Power

2.0Kw

/

Weight

650 kg

/

Dimension

1800*1000*1500mm

/




No.

Name

Brand

1

Press-button

Schneider

2

Magnetic Contactor

Schneider

3

Relay

Omron

4

Frequency transformer

TEC

5

Motor

JSCC made in Germany

6

Air cylinder

CNCO

7

Solenoid valve

Airtac

8

Speed reducer

JIAHE

9

Bearing

NSK

10

PLC

Siemens

11

Touch screen

Siemens

12

Fibre-optical

Sick

Product Catalog
