This machine is a pre-filling machine specially developed for laboratory filling pre-filling syringes.Suitable for filling and filling 1-20ml glass, prefilled, oral, aseptic syringe (BD tube).
Function introduction:
Mixer syringe artificially by chute automatic filling into the thumbwheel: syringe by rows of slide down the chute, dial wheel intermittent rotation, a feeding wheel a syringe, and bring them to the corresponding work station (also can use the automatic feeding mechanism, by artificial once a hive of syringes, automatic feeding machine again, with another fee).

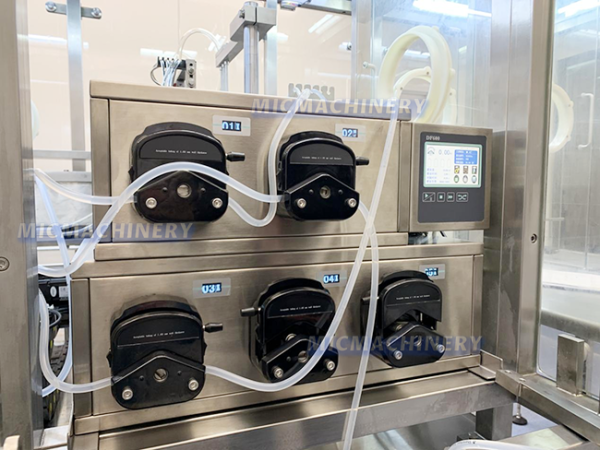

◆ filling of syringe: the syringe is carried to the filling station by the rotary wheel, and a single liquid filling needle is inserted into the syringe to fill and rise at the same time. During filling, the syringe is sealed for vacuuming, and the filling pump is filled with ceramic pump.
Syringe vacuum gasser: after filling syringes by dial wheel rotation to stoppering station, after finishing the oscillator stopper is go through the track to the top of the syringe, by a stoppered rod first stopper in gasser stem head, gasser rod and a vacuum body, at the same time press the syringe after sealing vacuum, then through gasser rod to the injector of liquid surface.
◆ release of finished products: after filling and filling the finished product of syringe, it can be manually collected after sliding out through the suspension of a slide.
Features:
This machine is driven by servo motor without traditional mechanical transmission.
The machine is simple in operation and reliable in operation.
Filling speed and finishing adjustment, plugging vacuum degree and time can be adjusted, suitable for various viscosity of oil, gel filling plug.
Touch screen can save multiple specifications of production procedures, after the replacement of specifications, directly call the corresponding program screen.
The machine occupies a small area and is easy to move. It is very suitable for laboratory or small batch production.

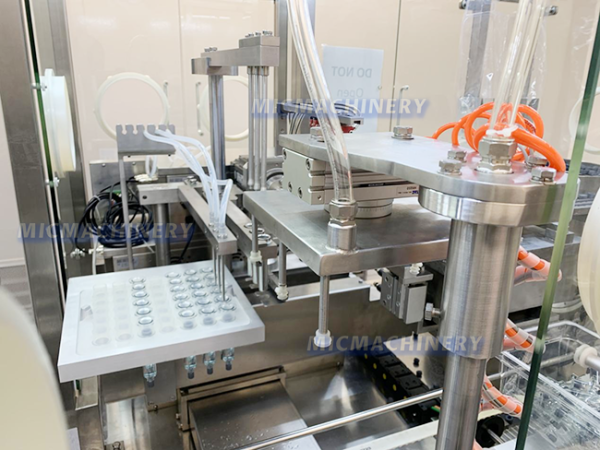

Syringe container filling head
The syringes are arranged neatly in the matching slot, and the filling starts row by row when they reach the designated position. This machine can ensure accurate filling and no drip leakage. Accurate filling during the filling process, reliable and accurate line by line movement.
cap station
vacuum cap to avoido air bubbles inside
Syringe Filling Machine |
||||
model |
SGJ |
SGJ-1 |
SGJ-2 |
SGJ-3 |
application |
medicine, chemistry, biology,etc |
|||
Packing type |
various syringes, boosters, injection tubes,etc |
|||
speed |
5000pcs/h |
20-30pcs/min |
800-1000pcs/h |
800-1000pcs/h |
Filling arrange |
0.5-50ML |
5-100ML |
0.5-50ML |
0.5-50ML |
power |
3.5KW |
2KW |
2KW |
2KW |
size |
2500*1350*1600mm |
1380*1030*1800mm |
1800*800*1700mm |
1800*800*1700mm |
weight |
1500KG |
390KG |
450KG |
450KG |
