This machine is mainly designed for packing plastic bags with suction nozzles. It is suitable for filling and screwing caps of water agents and viscous materials. PLC programmable control, with touch screen man-machine interface system, automatic filling, automatic capping. Servo motor drive, double screw drive, control the movement of piston rod to ensure the stability of filling, higher filling accuracy, optical, mechanical, electrical, gas in one. The utility model is an integrated filling and capping machine with convenient operation. It has stable and reliable operation, high production efficiency and strong adaptability.

Main Features
1.This machine adopt PLC programmable control, with touch screen man-machine interface system .
2. Automatic filling, automatic cap loading and capping .
3. Adopt servo motor drive, double screw rod drive to control the movement of the piston to ensure the stability of filling, filling accuracy is higher.

4.Stable and reliable operation, high production efficiency, strong adaptability .

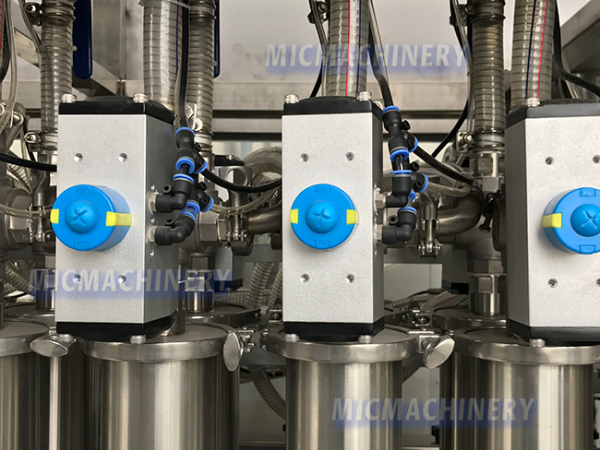

the three-way valve

the three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.

Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling

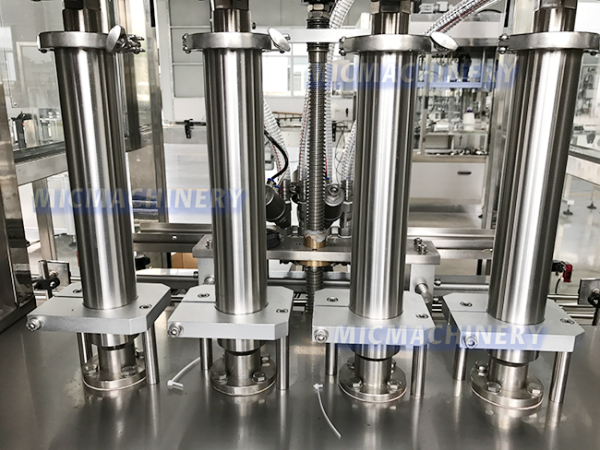

Measuring cylinder

The function of measuring cylinder cylinder is mainly quantitative filling, its use can make your filling accuracy higher, driven by servo motor, control the movement of the piston rod, the Piston moving down extract the material from the material cylinder to the measuring cylinder cylinder, and then the piston moves up to the dose of the cylinder cylinder in the material to the filling pipeline.

(The size of dose cylinder can be customized according to your needs)

In addition to,If you're looking for detergent filling machine,liquid detergent filling machine,detergent liquid filling machine,laundry detergent filling machine,Please feel free to visit our website

In short, we will try our best to provide you with satisfactory service,the following is our customer feedback:

About the machine use problem, after the sales,
we will take video for:
1. how to connect the power
2. how to operate the machine
3. how to maintain the machine and how often to do it
4. how to adjust machine to different bottle or material.
Thank you for the reading this article,
you can also check for:
→ Application ←
→ QC Adjustment ←
→ Manual ←

Filling Range	250-2000ml
Voltage	220v/380v
Power	4KW
Filling Precision	99%
Filling Nozzles	8 nozzles
Filling Speed	3000 BPH
Dimension	380015002200mm
Weight	1000kg
Material	SS304

Touch screen	Xinjie
PLC	Schneider
Solenoid valve	AirTAC
Optoelectronic system	AUTONICS
Differential switch	Netherlands
Air source treatment	AirTAC
Switching power	MingWei
Button and other low-voltage electrical appliances	Schneider
Alarm system	Real-time fault alarm, important fault can automatically stop
Servo motor	TECO
Ball screw	Taiwan
Function	Filling the count
Material	316 stainless steel is used in contact with material, 304 stainless steel is used in other main parts.
Sealing ring	It is made of carbon tetrafluoro fibers with good anticorrosion, wear resistance and sealing.
AC contactor	Schneider
Thermorelay	Schneider
Transducer	Schneider
Double clutch	Custom
Precision relief valve	Lark
Screw cap form	Automatic cap sorting and capping
One camera dual use	Fillable Water Agent or Thickener Formula
