Basic USES:
This device is a round bottle and conical bottle labeling machine, which is specially used for circular labeling. It can be labeled with single label and double label. The distance between front and back double label can be adjusted flexibly.With tapered bottle labeling function;The perimeter location detection device can be used to label the designated position on the perimeter surface.

Scope of application:

◆ applicable label: sticker labeln-drying film, etc.
◆ applicable products: round bottles with diameters between 150mm and 400mm.
Application: widely used in medicine, food, toy, daily chemical and other industries.

Working process:

* core principle: products from a location in labeling machine conveyor belt, sensors detect the product after, back to the signal to the labeling control system, card bottle agencies will bucket stuck and high-speed rotation, when the color standard photoelectric detecting control system to control the corresponding motor send labels and attached with a stay in product labeling position, at the same time scale, a label attached.
* operation process: put the product conveyor belt (line can be connected) -- > product conveying -- > bucket handle -- > product testing -- > product positioning -- > labeling and re-labeling -- > collection of labeled products.

Features:

◆ simple adjustment, configuration before and after, left and right and up and down directions, plane inclination Angle, vertical inclination Angle adjustment seat, different barrels switch without dead Angle, simple and quick adjustment;
◆ touch screen control, man-machine interaction interface with operation and teaching functions, straightforward parameter modification, simple switch of various functions;
◆ intelligent control, automatic photoelectric tracking, with no marking, no marking automatic correction and automatic label detection functions, to avoid waste labels and missing labels;
◆ solid and hygienic, mainly made of stainless steel and senior aluminum alloy, with solid quality, in line with GMP production requirements;
◆ with automatic shutdown function, production counting function, power saving function (when there is no production within the set time, the equipment will automatically turn to power saving standby state), production number setting prompt function, parameter setting protection function (parameter setting management by permission), convenient production management;

Optional functions:

Hot code/spray code function;
(2) automatic feeding function (vertical bottle feeder);
(3) automatic receiving function (considering the product);
(4) increase labeling device;

(5) no mark bottle removal function (customized according to customer requirements).

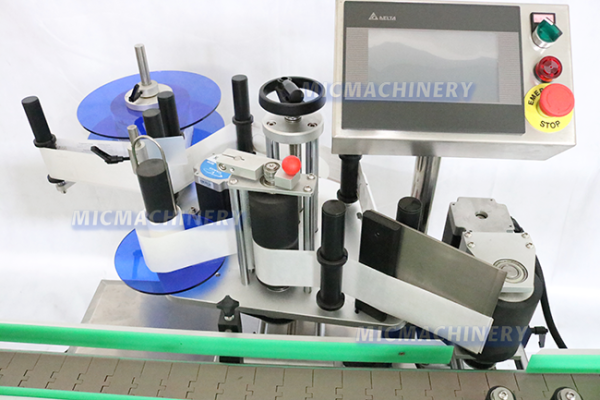

Labeling worktable

Core principle: Sorting the product by bottle wheel, putting the product on the conveyor belt,sensors detect the product after, back to the signal to the labeling control system, in the appropriate position control system control corresponding motor send labels and attached with a stay in product labeling position, The product goes through the labeling device,the label belt drives the product to rotate, the label is rolled over, and the attached action of a label is completed.

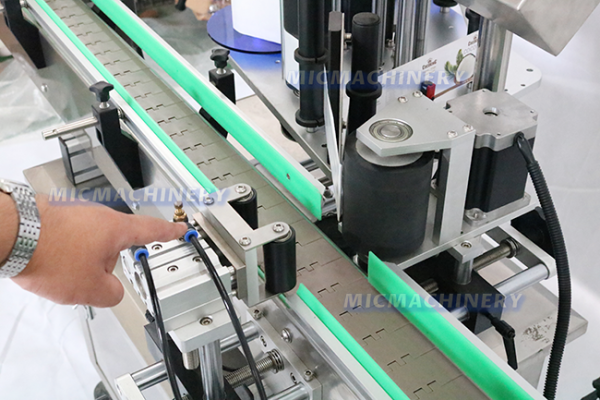

Conveyor belt

When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.

This conveyor belt can be different size of bottle,The width between the baffle plates on both sides of the conveyor belt can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap

In addition to,If you're looking for labeling machine，bottle labeling equipment，sticker labelling machine price，labelling equipment，automatic labeling machine，sticker labeling machine，automatic labelling machine，commercial labeling machine，+labeling +machine，+automatic +labeling +machine,Please feel free to visit our website.

In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Voltage specification	AC220V 50/60HZ
Consumed power	1.0KW
Labeling speed	30-40 BBL/min (speed adjustable, depending on object size and label length)
Labeling accuracy	+1.5mm (depending on product characteristics, hardness and roundness)
Bucket diameter	Φ60-160mm
Height	100mm ~ 300mm (can be customized according to customer requirements)
Label height	10mm ~ ~ 150mm length 15 ~ ~ 300mm (special specification can be customized)
Paper roll diameter	Φ paper roll diameter: 76 mm Φ 300 (maximum)
Air source pressure	0.4～0.6Mpa
Weight	250KG
Package size	2000X800X1300mm

Part name	nameplate
Label servo motor	omron panasonic
Label motor driver
Switch power supply	omron panasonic
Switch button	schneider
Labeled optoelectronic	keenshi, Japan
Label detection photoelectric
Programmable controller	Germany Siemens
Man - machine operation interface	Germany Siemens
Synchronous toothed belt	sakato (Japan)
conveying motor	jianming (Shanghai)
drum motor
Frequency converter	Germany Siemens
Cylinder, solenoid valve	yadeke
