This piston filling machine is suitable for:

Lube oil, engine car oil, industry oil, olive oil, bean oil, paint, sauce and other similar products.

This machine function is:

1.      Automatic bottle sensing system and filling

2.      No bottle no filling

3.      Filling error is control within 1‰

4.      Filling arrange : mini volume: max volume =1:10

5.      Automatic filling volume correction system.

6.      Can be customized for different bottle and caps.

7.      Can be equipped with cleaning system.

This machine filling system is made for cosmetics package food bottle medical products and chemical products, easy clean and changes, we have automatic piston opening for cleaning. it is a practical machine for production and clean, 24 hours runs none stops, hardly have machine break down once well adjusted.

Machine filling accuracy max is at 1%, from 100ML-1000ML, 1L-5L volume, and it is piston filling controlled by servo motor.

This machine is mechanical transmission, controlled by servo motor, it is well developed machine, use life more than 15 years.

This machine is guaranteed for one year and you can extent your guarantee easily by discuss with our sales.

Which you might be interested, under guaranteed, machine parts got broken by daily use, we will replace it once we are informed by free DHL.

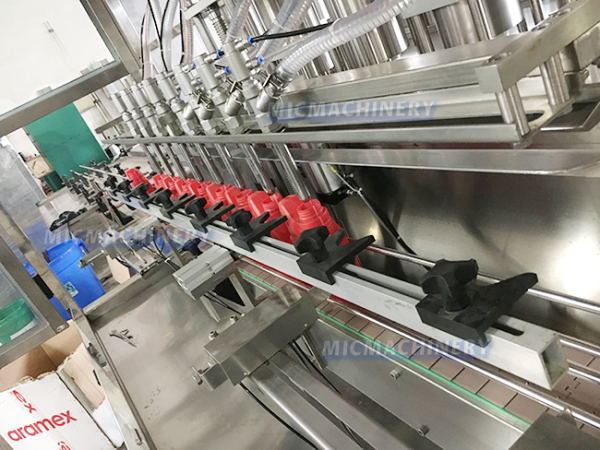

filling head

     The Lubricant oil is put into the material cylinder, the piston to pump the Lubricant oil into the measuring cylinder. Then the piston moves up to send the Lubricant oil to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.

    (Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)

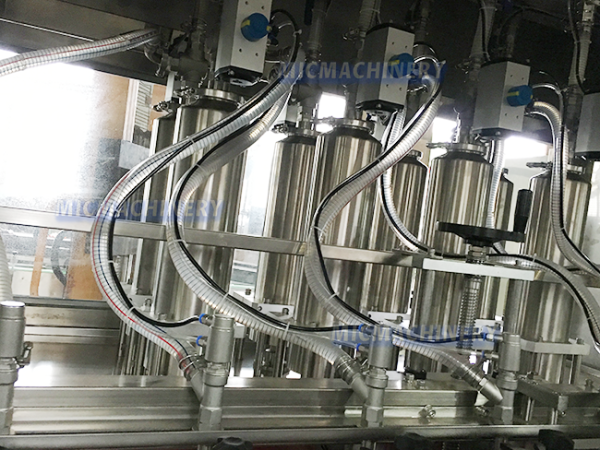

Measuring cylinder

The function of measuring cylinder cylinder is mainly quantitative filling, its use can make your filling accuracy higher, driven by servo motor, control the movement of the piston rod, the Piston moving down extract the material from the material cylinder to the measuring cylinder cylinder, and then the piston moves up to the dose of the cylinder cylinder in the material to the filling pipeline.

(The size of dose cylinder can be customized according to your needs)

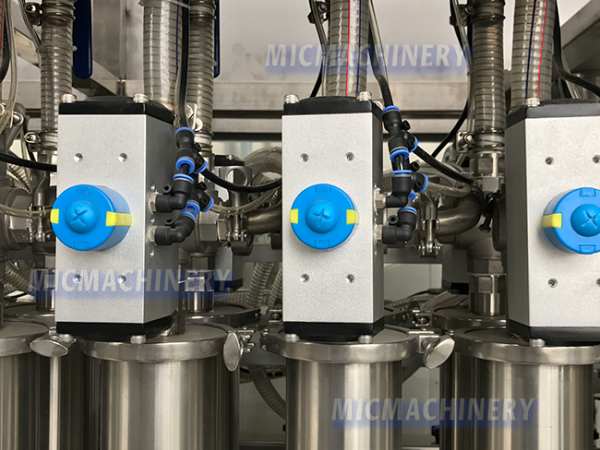

the three-way valve

    the three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.

    Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling

If you want to know more models of filling machine, you can refer to the table below:

     In addition to,If you're looking for drum filling equipment,drum filling machine,drum filling system,automatic drum filling machine,drum filling line,drum packing machine,semi automatic drum filling machine,automatic drum filler,drum filling machine manufacturer,automatic drum filling equipment,it is a pleasure for you to visit our website anytime.

     In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

About the machine use problem, after the sales,

we will take video for:

1. how to connect the power

2. how to operate the machine

3. how to maintain the machine and how often to do it

4. how to adjust machine to different bottle or material.
