  • FEATURES
  • PARAMETER
  • CONFIGURATION
  • APPLY


This R45 Tube Filling Sealing Machine is Suitable for:

Soft tube, plastic tube and aluminum-plastic laminated tube

It has been widely used in the fields of

pharmacy, cosmetic, cream, toothpaste, food,ointment,axomatic and chemical etc.


This machine function is:
1.     Automatic tube loading
2.     Automatic tube filling and sealing
3.     Automatic tube cutting and date printing
4.     Automatic tube counting and tube outlet
5.     No tube no filling
6.     Can be customized for different tubes


This machine is made for plastic tubes, easy operation and washing. Many factories in European countries are using our same machine, such as Greece and Italy and etc. And we also have many customers in the USA and Asian countries who buy and use our machines.  Therefore, the stability,filling precision, precision of orientation and precision of cutter are more accurate than similar products in China.   So, you can to use this machine to achieve the best filling effect.


Machine filling accuracy is at 0.1-0.5g, from 1-75ml.

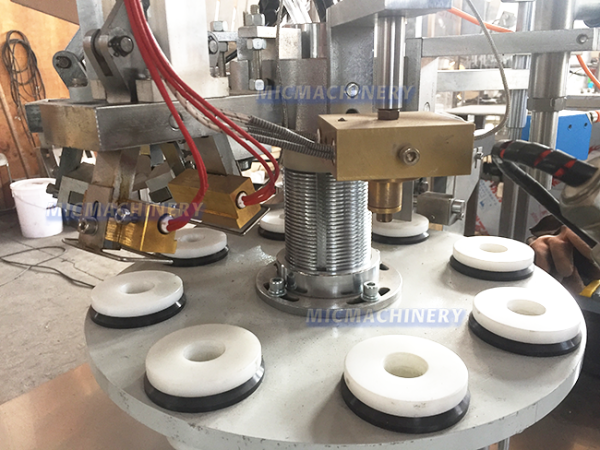

Internal and external heating system

The main function of this heating head is to heat the inside and outside of the end of the filled pipe

Working process: when the tube is moved to the heating head after automatic calibration and filling, the motor drives the heating head to move down to heat the end of the tube, with high efficiency to ensure that the inside and outside of the tube is heated evenly. This provides a good premise for subsequent sealing and printing dates.

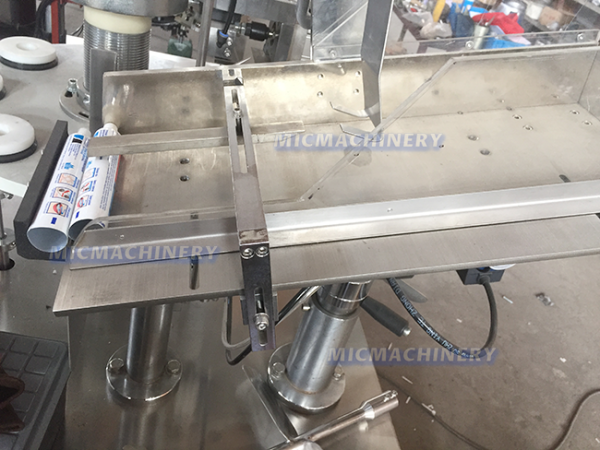

Automatic tube feeding system


    Its main function is to make the pipes in order on the top, into the filling machine, the whole process can be controlled by the touch screen, the internal program will automatically complete the tube work. Effectively save labor cost


 If you want to know more models of filling machine, you can refer to the table below:


Model

L30

L30I

L45

L45I

L60

L60I

R30

R30I

R45

R60

Application

Pharmacy, cosmetic, food and chemical ,super glue, glue 502. etc.

Packing Type

Soft tube,aluminum tube,plastic tube. Etc

Speed

10-50

t/m

25-45

t/m

30-75

t/m

40-45

t/m

50-60

t/m

50-60

t/m

20-30

t/m

20-30

t/m

30-35

t/m

30-65

t/m

Filling Arrange

1-300ml,2-300ml,3-20ml,5-75ml, 15-75ml, 75-250ml,5-75ml/75-150ml /150-300ml

Power

1.1Kw

1.1kw

2.2Kw

2.2Kw

2.2Kw

2.2Kw

1.1kw

1.1Kw

4KW

5.5Kw

Size

1130*750*1680

mm

1500*700*1800

mm

1950*800*1850

mm

1950*800*1850

mm

1900*1400*2000

mm

1900*1400*2000

mm

1230*700*1400

mm

1230*700*1400

mm

1450*1050*1750

mm

1850*950*1980

mm

Weight

250Kg

300Kg

850Kg

800 Kg

850Kg

1200 Kg

250Kg

250Kg

475Kg


850Kg




    In short,we will try our best to provide you with satisfactory service,the following is our client feedback:






Voltage

110V/220V/380V

Power

1.1kw

Heating Power

400w*2

Air Pressure

0.6-0.8Mpa

Production Capacity

25-45 tubes/min

Filling Volume

1-300ml

Filling Error

±0.5g

Material

SS304/316

Dimensions

1500*700*1800mm

Weight

475KG


Parts Brand

Main Motor

Wu XI Qi Peng

PLC

Panasonic JAPAN

Stepping Motor

East Japan

Stepping Drive

East Japan

Sensor

Germany Sick

Approach Switch

BFNFC

Intermediate Relay

Schneider

electromagnetic Valve

Si Mai Ge

Encoder

Omron

Mixing Motor (Optional)

XiangGang Ease

Air Cylinder

Si Mai Ge

Bearing

Nsk

Button

Schneider

Air Switch

CHNT

Power Switch

Omron

Temperature Control

HuoYU
