An aluminum tube filling and sealing machine is mainly used for aluminum tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food, cosmetic, toothpaste, ointment, axomatic and chemical etc.


This machine function is:

1.      Automatic tube clamping and sealing

2.      Automatic tube loading tunnel

3.      Automatic tube logo marking

4.      Automatic material feeding system (optional)

5.      No tubes no fill and date printing

6.      Can equipped nitrogen filling system, and tube lifting filling system.

7.      As different material, we can also make sure no air inside products while filling.

8.      Automatic counting and tube outlet

9.      Can be customized for different tube and liquid

10.    Can be equipped different tanks and mixers



This MIC-L60 AUTO ALUMINUM TUBE FILLING & SEALING MACHINE is pneumatic controlled, with 1 filling head and a heating gun. It has total 10 positions for filling and sealing. And materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste etc., are all applicable.


This machine is guaranteed for one year and you can extent your guarantee easily by discuss with our sales.

Which you might be interested, under guaranteed, machine parts got broken by daily use, we will replace it once we are informed by free DHL.



Sensor and Sensor rod

Main role is to sense the tube, and automatically turn the tube to ensure the standard.

Workflow: When the tube enters the machine bench, the sensor is automatic, adjusts the position of the pipe, and sends a signal to the next filling station. The internal program controls automatic filling

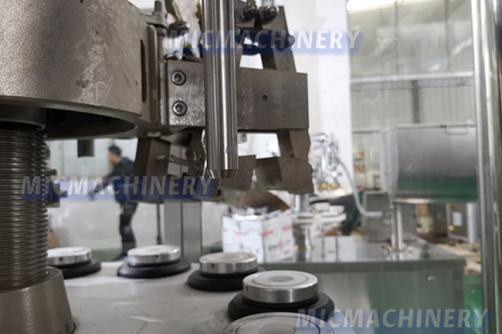

The main platform


The picture includes turntable, filling head,sensor,automatic flattened, fold-tube, cut and date-printed stations.This is clear function and easy to clean.

      Main workflow: automatically goes on the tube. When the tube comes, the sensor automatically identifies it, sends a signal to the filling station, and starts the filling.After the filling, the tail of the pipe is flattened, folded, folded forward and back, date printed, and finally the pipe is topped out

We can customize this turntable, filling head, and so on



Automatic tube feeding system

Its main function is to make the pipes in order on the top, into the filling machine, the whole process can be controlled by the touch screen, the internal program will automatically complete the tube work. Effectively save labor cost



 If you want to know more models of filling machine, you can refer to the table below:


Model

L30

L30I

L45

L45I

L60

L60I

R30

R30I

R45

R60

Application

Pharmacy, cosmetic, food and chemical ,super glue, glue 502. etc.

Packing Type

Soft tube,aluminum tube,plastic tube. Etc

Speed

10-50

t/m

25-45

t/m

30-75

t/m

40-45

t/m

50-60

t/m

50-60

t/m

20-30

t/m

20-30

t/m

30-35

t/m

30-65

t/m

Filling Arrange

1-300ml,2-300ml,3-20ml,5-75ml, 15-75ml, 75-250ml,5-75ml/75-150ml /150-300ml

Power

1.1Kw

1.1kw

2.2Kw

2.2Kw

2.2Kw

2.2Kw

1.1kw

1.1Kw

4KW

5.5Kw

Size

1130*750*1680

mm

1500*700*1800

mm

1950*800*1850

mm

1950*800*1850

mm

1900*1400*2000

mm

1900*1400*2000

mm

1230*700*1400

mm

1230*700*1400

mm

1450*1050*1750

mm

1850*950*1980

mm

Weight

250Kg

300Kg

850Kg

800 Kg

850Kg

1200 Kg

250Kg

250Kg

475Kg


850Kg





    In addition to,If you're looking for tube filling machine,automatic tube filling machine,tube filling machine manufacturers,tube filling machine price,manual tube filling machine,semi automatic tube filling machine,ointment filling machine,tube filling machine manufacturer,aluminum tube filling machine,aluminium tube filling machine,it is a pleasure for you to visit our website anytime.


    In short,we will try our best to provide you with satisfactory service,the following is our client feedback:


Weight

850Kg

Dimension

1950*800*1850mm

Power

380v/50hz/3 phases

Motor

2.2Kw

Filling Quantity

3-30ml

Capacity

60-80 tubes/min

Suitable Filling Material

Aluminum tube

Maximum Tube Dia.

80mm

Date Printed

1-2 rows(numbers & letters)

Additional Function

Air Blow after filling




Name

Brand

Framework

SUS 304 Stainless steel

Touch screen

Simems

Main Motor

Taiwan, Mingbang

PLC

Siemems

Stepping motor

Japan EAST

Stepping drive

Japan EAST

Color Mark sensor

Germany Sick

Approch switch

Omron

Media relay

Omron

Heater gun

Switzerland Leister

Magnetic vavle

Taiwan AIRTAC

Protractor

China, Shangdong

Stirring motor

XiangGang  EAST

Pneumatic elements

Taiwan AIRTAC

Pump for filling

Own produce (MIC)

Hopper (50L)

SUS316

Bearings

Japan NSK

Buttoms

Schneider
