This machine is suitable for filling oil and cream products, especially for high viscosity material (such as butter, cream , liquid soap , lotion, etc.) the effect is obvious. PLC programming control, with a touch screen and man-machine interface system; automatic bottle feeding, automatic filling, automatic bottle; the servo motor drive, double screw drive, the control piston rod movement to ensure the filling stability, filling accuracy higher. It can be with the capping machine, labeling machine supporting the formation of water production line.  It integrates light, machine, electricity and gas into one body. Is an easy to operate filling machine. With stable and reliable operation, high production efficiency, strong adaptability.

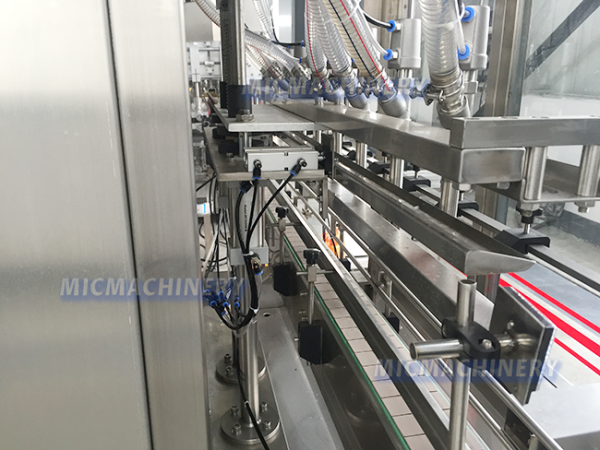

Sauce filling head

  The Sauce is put into the material cylinder, the piston to pump the Sauce into the measuring cylinder. Then the piston moves up to send the Sauce to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.

    (Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrels mouth)

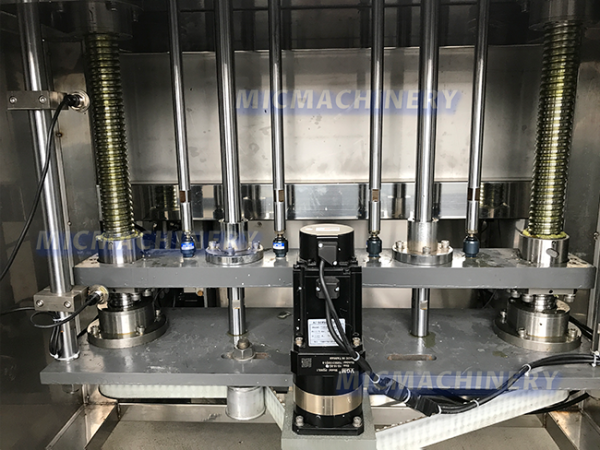

Servo motor

   This filling machine adopts servo motor drive, servo motor high efficiency, small volume and relatively high power, can drive the machine more stable, smooth filling. In addition, the servo motor operation noise is small, will not cause too much noise burden to the workshop.



Conveyor belt

When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.

This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap.



If you want to know more models of filling machine, you can refer to the table below:


Model

MIC V01

MIC-ZF4

MIC-ZF6

MIC-ZF8

MIC-ZF12

MIC-ZF16

MIC-ZF20

Application

High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On

Packing Type

Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc

Speed

(basis on 50-500ml)

1500 B/h

2000B/h

2500B/h

3000 B/h

4000B/h

5000 B /h

6000 B/h

Filling Arrange

10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)

Power

30W

3.5Kw

3.6kw

3.7kw

3.8kw

3.9Kw

4.0Kw

Size

1000*480*700

mm

1400*1450*2270

mm

1400*1450*2270

mm

1700*1450*2270

mm

2000*1450*2270

mm

2300*1450*2270

mm

2600 *1450*2270

mm

Weight

35 Kg

500kg

600kg

700kg

800Kg

900 kg

1000 kg



In addition to,we have jam filling machine,jam packing machine,jam jar filling machine,jam packaging machine,manual jam filling machine,sauce filling machine,tomato sauce filling machine,hot sauce bottling machine,sauce bottling machine.

If you are more than interested in the machine ,you can contact us at market@micmachinery.com


in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.




Filling head

8 heads

Filling volume range

50-1000ml(Use 1000ml piston cylinder)

Production speed

1800 Bph basis on 1000ml bottle

Voltage

220v/380v

Power

3kw

Suitable bottle’s diameter

Ф40mm-Ф100mm

Filling error

≤±1

Work pressure

0.55Mpa-0.65Mpa

Size

2000mm × 1400mm× 2500mm

Weight

1000kg



Name

Brand

Touch screen

Canada xinjie color

PLC

Schneider

Optoelectronic system

OPTEX

Micro differential pressure switch

Netherlands

Solenoid valve

Taiwan  Airtac

Servo motor

Taiwan TECO

Air source treatment

Taiwan  Airtac

Button and low voltage electric appliance

Schneider

Ball screw

Taiwan

Reducer

Taiwan VGM

Switching power supply

Taiwan mean well

Material

Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel.
