  • FEATURES
  • PARAMETER
  • CONFIGURATION


Control system: use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate;

Operation system: The man-machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich with the help function and fault display function ;

Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker;


Send label system:use SIEMENS high-power servo control system, stable with high speed.


Round Container Labeling Machine contribute to product traceability and regulatory compliance. They can be equipped with additional features, such as barcode readers or vision systems, to verify label accuracy, perform quality inspections, and ensure compliance with industry regulations. These features enhance product tracking, facilitate inventory management, and support compliance with labeling requirements, such as ingredient lists, batch codes, or expiration dates.

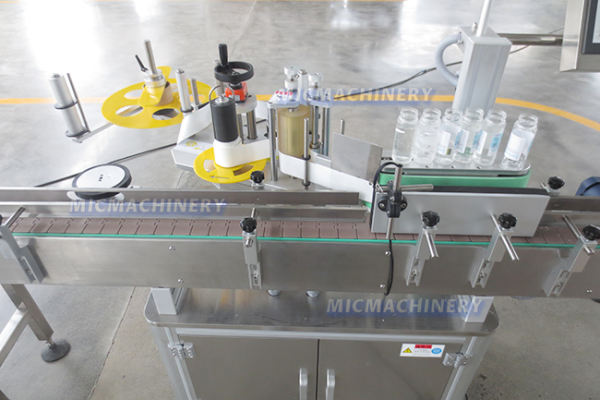

Conveyor belt


    The conveyor belt is suitable for different sizes of products, the width between the conveyor belt can be adjusted according to your products, to ensure the smooth and safe movement of products on the conveyor belt.

    Equipped with sensors, when there is a product through, sensitive recognition, through the internal system to send signals to the labeling station.

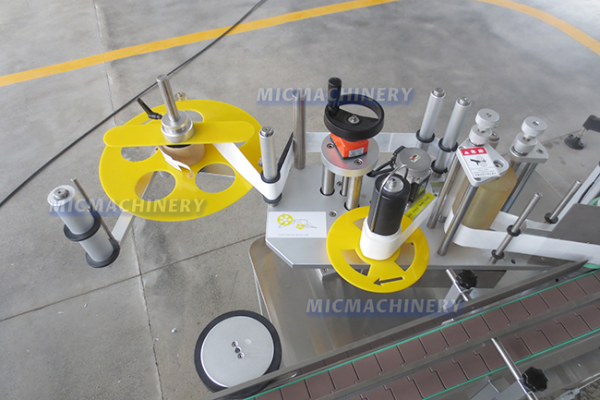

Labeling worktable

    Core principle: Sorting the product by bottle wheel, putting the product on the conveyor belt,sensors detect the product after, back to the signal to the labeling control system, in the appropriate position control system control corresponding motor send labels and attached with a stay in product labeling position, The product goes through the labeling device,the label belt drives the product to rotate, the label is rolled over, and the attached action of a label is completed.

    In addition to,If you're looking for bottle labeling machine,beer bottle labeling machine,automatic bottle labeling machine,bottle +labeling +machine,plastic bottle labeling machine,wine bottle labeling machine,small bottle labeling machine,bottle sticker labelling machine,pet bottle labeling machinePlease feel free to visit our website.


     In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.




About the machine use problem, after the sales,
we will take video for:
1.     how to connect the power
2.     how to operate the machine
3.     how to maintain the machine and how often to do it
4.     how to adjust machine to different bottle or material.


Thank you for the reading this article,
you can also check for:
→ Application ←



Model
MIC-RT60
Driving Mode
Servo motor
Yield(pcs/min)
30-150
Operating direction
Left or Right
Conveyor Speed(m/min)
≤40
Labeling Accuracy
±1.0 mm
The inner diameter of label roll
76 mm
The outer diameter of label roll
350 mm(max)
The suitable size of label
Width 15-300 mm  length 15-300 mm
The suitable size of labeling objects
Can customized depends on client product
Printer use air
5kg/cm 2
Voltage (In China)
AC220V 50/60HZ Single phase
(Can customized as client need)
Power(w)
800W
Weight(kg)
200
Machine size
1800(L) 800 (W)  1300 (H) mm
PLC control system
SIEMENS
Touch-screen
SIEMENS
Photoelectricsensor(Check label object)
Japan KEYENCE
Photoelectricsensor(Check opaquelabel)
German Leuze
Servo motor
America AB
Drive
America AB
Main transport motor
German JSCC
Roll label motor
German JSCC
Separate bottle motor
German JSCC
Speed Controller
German JSCC
