2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.

3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.

4)Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.

5) The newly designed cutter stepper motor which speed is high ,action is exact,the cut is in order and the shrinking is beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.

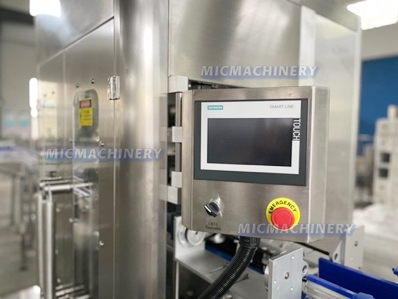

control panel

    Man-machine dialogue touch screen - with human touch control screen, full Chinese display, not only simple and intuitive operation, complete functions, but also has rich help function and fault display function.

mainly work station

   Workflow:Product (bottle feeding)→ plate chain conveyor belt conveying → bottle separating and bottle belt mechanism simultaneously distributing and correcting position → electric eye detection → label sleeve mechanism receiving electric eye signal cutting label → label quick positioning to the product to cover the specified part of the bottle body → label position correction → thermal contraction label.
