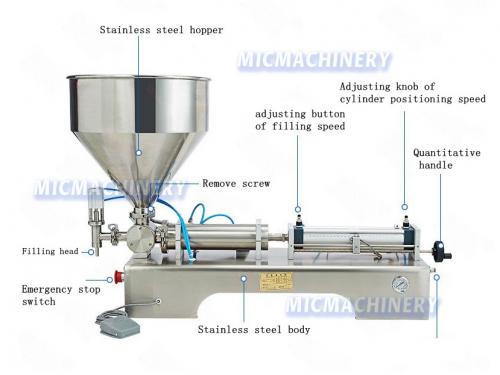

1. Filling with piston pump. Driven by electricity and air compressor.
2. Filling volume can be easily adjusted.
3. The machine(Jam Filling Machine) is all made of SUS304. Corrosion-resistant, compact structure, easy to operate, beautiful appearance, in line with GMP standards.
4. It can work automatically or controlled by a operation pedal.
5. Has single head, double heads and full pneumatic model. Our machine(Jam Filling Machine) support special customization.

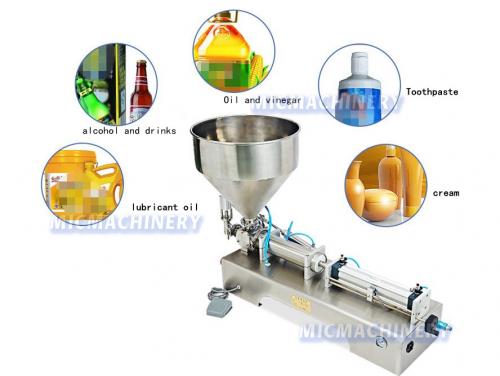

6. It is suitable for filling liquid and paste materials such as water, juice, oil, sauce, toothpaste, cosmetic cream, hand cream, honey, peanut butter etc. lt is widely used in chemical industry, food, cosmetic, medicine, etc.
Powerrig is one of the toppest semi automatic bottle filling machine,semi automatic liquid filling machine,bottle filling machine,liquid filling machine,bottle filler in China.After more than twenty years of development.Powerrig now has rich experience in the different machines.

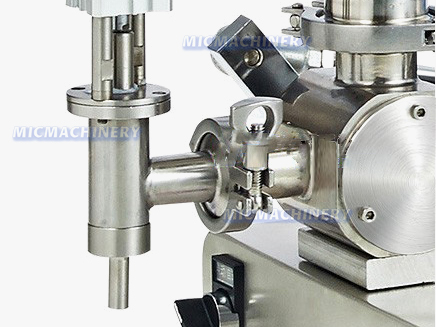

Filling Head
when the bottle comes under the filling head, cylinder head began to move down the drive filling, filling process without dripping, do not waste material, also can ensure the bottle clean and tidy.
The size of the filling head can be customized according to the caliber of the bottle, ensuring that this machine is absolutely suitable for your product

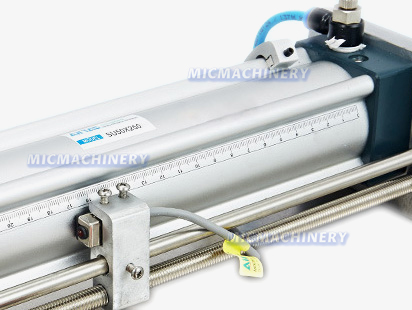

Air Cylinder
The cylinder is through the internal pumping system, the material out from the material cylinder, and then in the filling. Driven by electricity and air compressor.The machine is all made of SUS304. Corrosion-resistant, compact structure, easy to operate, beautiful appearance, in line with GMP standards.
if you want to know more models of filling machine, you can refer to the table below
|
Model |
MIC V01 |
MIC-ZF4 |
MIC-ZF6 |
MIC-ZF8 |
MIC-ZF12 |
MIC-ZF16 |
MIC-ZF20 |
|
Application |
High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On |
||||||
|
Packing Type |
Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc |
||||||
|
Speed (basis on 50-500ml) |
1500 B/h |
2000B/h |
2500B/h |
3000 B/h |
4000B/h |
5000 B /h |
6000 B/h |
|
Filling Arrange |
10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l) |
||||||
|
Power |
30W |
3.5Kw |
3.6kw |
3.7kw |
3.8kw |
3.9Kw |
4.0Kw |
|
Size |
1000*480*700 mm |
1400*1450*2270 mm |
1400*1450*2270 mm |
1700*1450*2270 mm |
2000*1450*2270 mm
|
2300*1450*2270 mm |
2600 *1450*2270 mm |
|
Weight |
35 Kg |
500kg |
600kg |
700kg |
800Kg |
900 kg |
1000 kg |
In addition to,we have jam filling machine，jam packing machine，jam jar filling machine，jam packaging machine，manual jam filling machine,sauce filling machine,tomato sauce filling machine,hot sauce bottling machine,sauce bottling machine.
If you are more than interested in the machine ,you can contact us at market@micmachinery.com
in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.
