Experienced supplier of tube filling and sealing machine,Aluminum Tube Filling Sealing Machine,Paint filling sealing machine

This machine is mainly used for aluminum tube filling and sealing.

It has been widely used in the fields of Pharmacy, cosmetic, food and chemical etc.

This machine function is:

1. Manual tube loading

2. Cam cylinder system-Diving filling with tube base up (Fully filling from tube bottom to head)

3. Air-blow cutting after each filling (Design for high viscosity material like paint, silicone etc.)

4. Nitrogen dosing filling device (Insulate material from air)

5. Automatic benchmarking (Cursor positioning)

6 Automatic tube filling sealing & No tube no filling

7. Automatic tube folding sealing

8. Material hopper can heating and stirring

9. Automatic printing the batch dates code

10. Can update with European accessories like Siemens, Omron and Schneider etc.

-Machine design using your actual sample tubes and material, we support tube testing before payment

-The machine has CE certification, comply with GMP hygiene standard.

-We provide full-lifetime warranty with one year free accessories

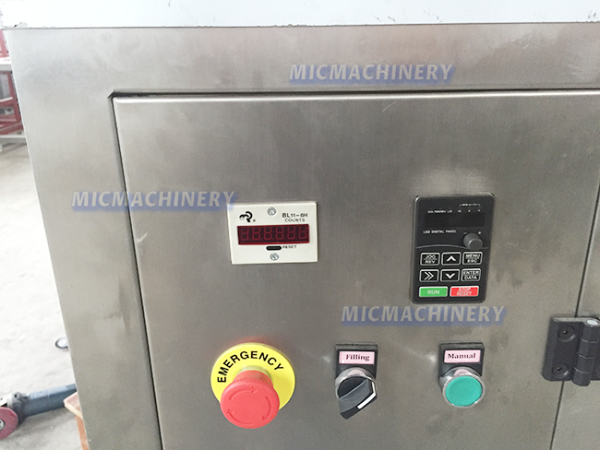

The control panel

The control panel on the filling machine is the core of the machine, the function is clear, the operation is simple, as long as adjust the corresponding button, the internal program will control the machine to run smoothly

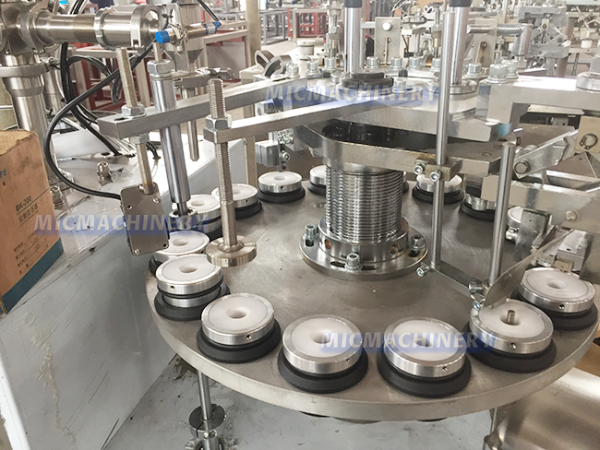

The main platform

The picture includes turntable, filling head,sensor,automatic flattened, fold-tube, date-printed stations.This is clear function and easy to clean.

Main workflow: automatically goes on the tube. When the tube comes, the sensor automatically identifies it, sends a signal to the filling station, and starts the filling.After the filling, the tail of the pipe is flattened, folded, folded forward and back, date printed, and finally the pipe is topped out

We can customize this turntable, filling head, and so on

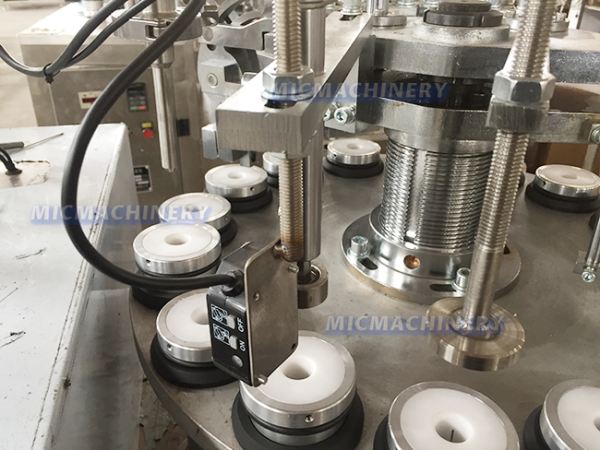

Sensor and Sensor rod

Main role is to sense the tube, and automatically turn the tube to ensure the standard.

Workflow: When the tube enters the machine bench, the sensor is automatic, adjusts the position of the pipe, and sends a signal to the next filling station. The internal program controls automatic filling

If you want to know more models of filling machine, you can refer to the table below:

Model	L30	L30I	L45	L45I	L60	L60I
Application	Pharmacy, cosmetic, food and chemical ,super glue, glue 502. etc.
Packing Type	Soft tube,aluminum tube,plastic tube. Etc
Speed	10-50 t/m	25-45 t/m	30-75 t/m	40-45 t/m	50-60 t/m	50-60 t/m
Filling Arrange	1-300ml,2-300ml,3-20ml,5-75ml, 15-75ml, 75-250ml,5-75ml/75-150ml /150-300ml
Power	1.1Kw	1.1kw	2.2Kw	2.2Kw	2.2Kw	2.2Kw
Size	11307501680 mm	15007001800 mm	19508001850 mm	19508001850 mm	190014002000 mm	190014002000 mm
Weight	250kg	300KG	850Kg	800 Kg	850Kg	1200 Kg

In short, we will try our best to provide you with satisfactory service,the following is our customer feedback:

About the machine use problem, after the sales,

we will take video for:

1. how to connect the power

2. how to operate the machine

3. how to maintain the machine and how often to do it

4. how to adjust machine to different bottle or material.

Thank you for the reading this article,

you can also check for:

→ Application ←

→ QC Adjustment ←

→ Manual ←

Voltage	110V/220V/380V
Power	1.1kw
Air Pressure	0.6-0.8Mpa
Production Capacity	25-45 tubes/min
Filling Volume	1-300ml
Filling Error	±0.5g
Material	SS304/316
Dimensions	15007001800mm
Weight	300KG

Parts	Brand
Main Motor	Wu XI Qi Peng
PLC	Panasonic JAPAN
Stepping Motor	East Japan
Stepping Drive	East Japan
Sensor	Germany Sick
Approach Switch	BFNFC
Intermediate Relay	Schneider
Electromagnetic Valve	Si Mai Ge
Encoder	Omron
Mixing Motor (Optional)	XiangGang Ease
Air Cylinder	Si Mai Ge
Bearing	Nsk
Button	Schneider
Air Switch	CHNT
Power Switch	Omron
Temperature Control	HuoYU
