MIC-PT60 Automatic horizontal way labeling machine
> > >
MIC-PT60 Automatic horizontal way labeling machine
MIC-PT60 Automatic horizontal way labeling machine
MIC-PT60 Automatic horizontal way labeling machine
MIC-PT60 Automatic horizontal way labeling machine
MIC-PT60 Automatic horizontal way labeling machine
  • FEATURES
  • PARAMETER
  • CONFIGURATION
Control system：use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate

Operation system： The man-machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich with the help function and fault display function ;

Check system： Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker

Send label system：use SIEMENS high-power servo control system, stable with high speed；

Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

Machine Material： machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;

Labeling way : use the servo send label system to send label on product surface; Low voltage circuit all use the German Schneider brand.

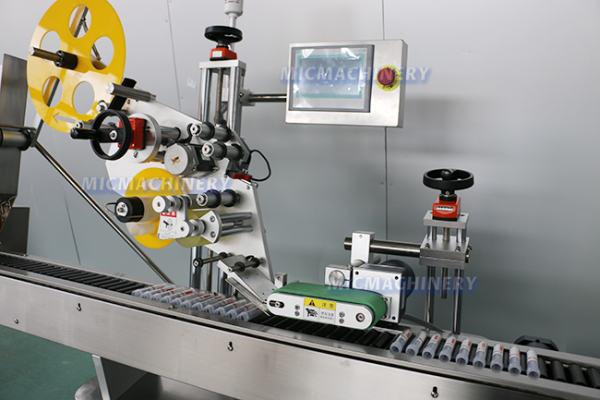

Labeling worktable


    Core principle: Sorting the product by bottle wheel, putting the product on the conveyor belt,sensors detect the product after, back to the signal to the labeling control system, in the appropriate position control system control corresponding motor send labels and attached with a stay in product labeling position, The product goes through the labeling device,the label belt drives the product to rotate, the label is rolled over, and the attached action of a label is completed.

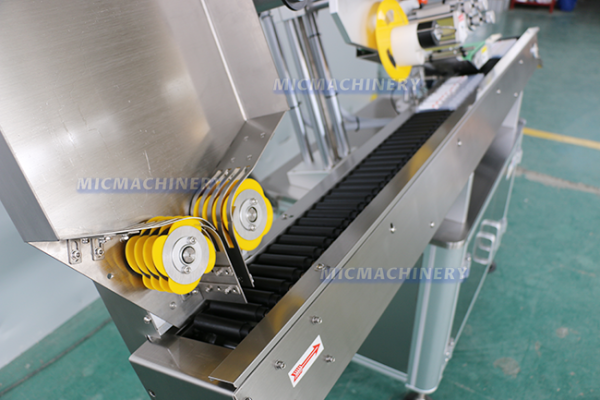

A wheel for sorting bottles


  Put a batch of bottles that need to be labeled to the location where the bottles are stored. The sorting wheel automatically sorts the bottles and sends the bottles to the specific conveyor belt in a horizontal way, with high working efficiency and great labor cost saving.


  In addition to,If you're looking for labeling machine，bottle labeling equipment，sticker labelling machine price，labelling equipment，automatic labeling machine，sticker labeling machine，automatic labelling machine，commercial labeling machine，+labeling +machine，+automatic +labeling +machine,Please feel free to visit our website.

   In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Model
 PWM-A
Driving Mode
 Servo motor
Yield（pcs/min）
 30-180
Operating direction
 Left or Right
Conveyor Speed（m/min）
 ≤40
Labeling Accuracy
 ±1.0 mm
The inner diameter of label roll
 76 mm
The outer diameter of label roll
 350 mm(max)
The suitable size of label
 Width 15-100 mm  length 15-80 mm
The suitable size of labeling objects
 Can customized depends on client product
Printer use air
5kg/cm 2
Voltage (In China)

AC220V 50/60HZ Single phase

(Can customized as client need)

Power（w）
600W
Weight（kg）
 260
Machine size
 1800（L） 800 (W)  1300 (H) mm
PLC control system
SIEMENS
Touch-screen
 SIEMENS
Photoelectric sensor
(Check label object)
Japan KEYENCE
Photoelectric sensor (Check opaque label）
 German Leuze
Photoelectric sensor (Check opaque and transparent label）
 German Leuze
Servo motor
 America AB
Drive
 America AB
Main transport motor
 German JSCC
Roll label motor
 German JSCC
Speed Controller
 German JSCC
