Introduction:
Syringe filling equipment plays a crucial role in pharmaceutical manufacturing, ensuring precise and efficient filling of syringes with various medications and vaccines. This article provides an overview of syringe filling equipment, highlighting its importance, key features, and benefits in pharmaceutical production.
This syringe filling machine is suitable for:
Filling and packaging of various syringes, boosters, injection tubes and the like in the fields of medicine, chemistry, biology and the like.

The characteristics of this machine are:

1.Prefilled syringe filling machines Accurate filling, controlling bubble during plugging. Automatic operation with monitoring all the way. Beside normal liquid, also suitable for filling transparent viscous liquid like ester acid.


2.Prefilled syringe filling machine included 2sets of servo motorsfor accurate filling, plugging reliability and accurate row by row moving during filling operation.


3.Prefilled syringe filling machines S/S rotating pump. Filling volume set-up and accuracy tuning are operated on touch-screen without any tool.


4.Prefilled syringe filling machines SIEMENS color touch screen. Real time monitoring and display of each operating status, vacuum pressure, nitrogen pressure, C/A pressure, fault alarm with position indication, fault indication and record. Multi-languages display.


5.Prefilled syringe filling machines Plugging quality is monitored with MVS(machine vision system), to ensure higher acceptability(Option).


6.Prefilled syringe filling machines Process parameters can be timely printed, stored and retrievable.


7.Prefilled syringe filling machines All contact parts are made of SUS 316L and medical silicon rubber. Machine is coated with SUS 304 and 6061 oxidated aluminum alloy.

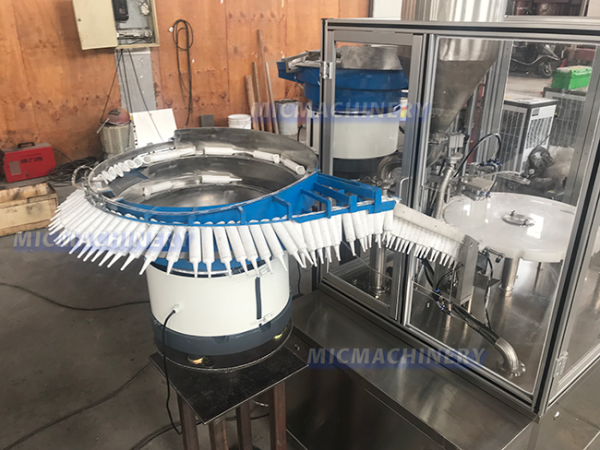

Automatic syinge feeding system



     Syinge feeding cage with vibrating pate is connected to a pipe that carries the syinge ,They automatically arranges the syinge and deliver the syinge into the filling machine

    In this way, reducing the manual contact with the syinge, and ensuring syinge hygiene,At the same time, labor costs are reduced

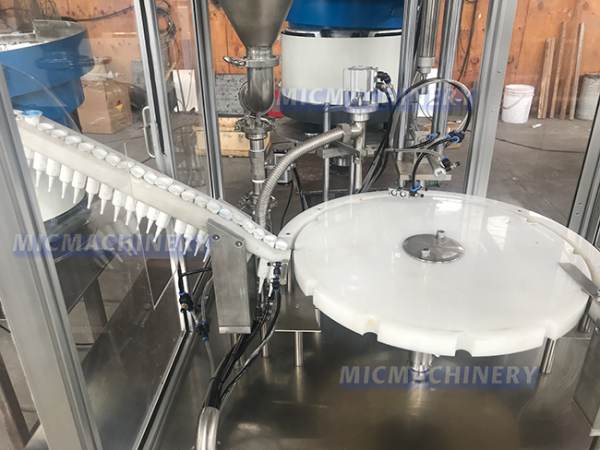

The main platform


The picture includes chuck, filling head,and automatic syinge feeding and syinge piston feeding stations.They are clear function and easy to clean.

Among them, the chuck is used to fix the filling container and drive the container to move to the filling、capping. The circular design can save space while setting up multiple positions, so that the filling process is time-saving and efficient

We can customize this turntable, filling head, screw cap and so on


If you want to know more models of filling machine, you can refer to the table below:



Syringe Filling Machine

model

SGJ

SGJ-1

SGJ-2

SGJ-3

application

medicine, chemistry, biology,etc

Packing type

various syringes, boosters, injection tubes,etc

speed

5000pcs/h

20-30pcs/min

800-1000pcs/h

800-1000pcs/h

Filling arrange

0.5-50ML

5-100ML

0.5-50ML

0.5-50ML

power

3.5KW

2KW

2KW

2KW

size

2500*1350*1600mm

1380*1030*1800mm

1800*800*1700mm

1800*800*1700mm

weight

1500KG

390KG

450KG

450KG




    In addition to,If you're looking for syringe filling machine,pre filled syringe filling machine manufacturers,syringe filling equipment,pfs filling machine,automatic syringe filler,syringe filling machine manufacturer,automatic syringe filling machine,syringe filling machine manufacturers,prefilled syringe filling machine,prefilled syringe machine,oral syringe filling machine,aseptic syringe filling equipment,sterile syringe filling machine,prefilled syringe machine manufacturers,syringe filling machine price.You can browse our product website more.

    If you are more than interested in the machine ,you can contact us at market@micmachinery.com


    In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Voltage

110V/220V/380V

Air Supply

0.6-0.8Mpa

Filling Speed

20-30pcs/minute

Filling Nozzle

1

Motor Power

2KW

Air Consumption

0.4m³/minute

Filling Accuracy

±1

Plugging Nozzle

1


Parts

Brand

Touch Screen

Siemens

Main Motor

Wuxi Qipeng

Proximity Switch

Pefun

Air Cylinder

Taiwan AirTAC

Encoder

Japan Koyo

Air Switch

Schneider

Bearing

Germany FAG

PLC

Siemens

Button

Schneider

Optoelectronic Switch

Germany Sick

Solenoid Valve

Taiwan AirTAC

Power Switch

Omron

Intermediate Relay

Schneider

Rack

SUS304
