This machine is our newly-design machine which used for filling plastic syringe. It can handle different material like gel,liquid and paste.
The main fuction is:Loading syringe- Filling from bottom-Loading cap-Screwing cap-Output.
It is easy to use but can meet your demand for higher production.

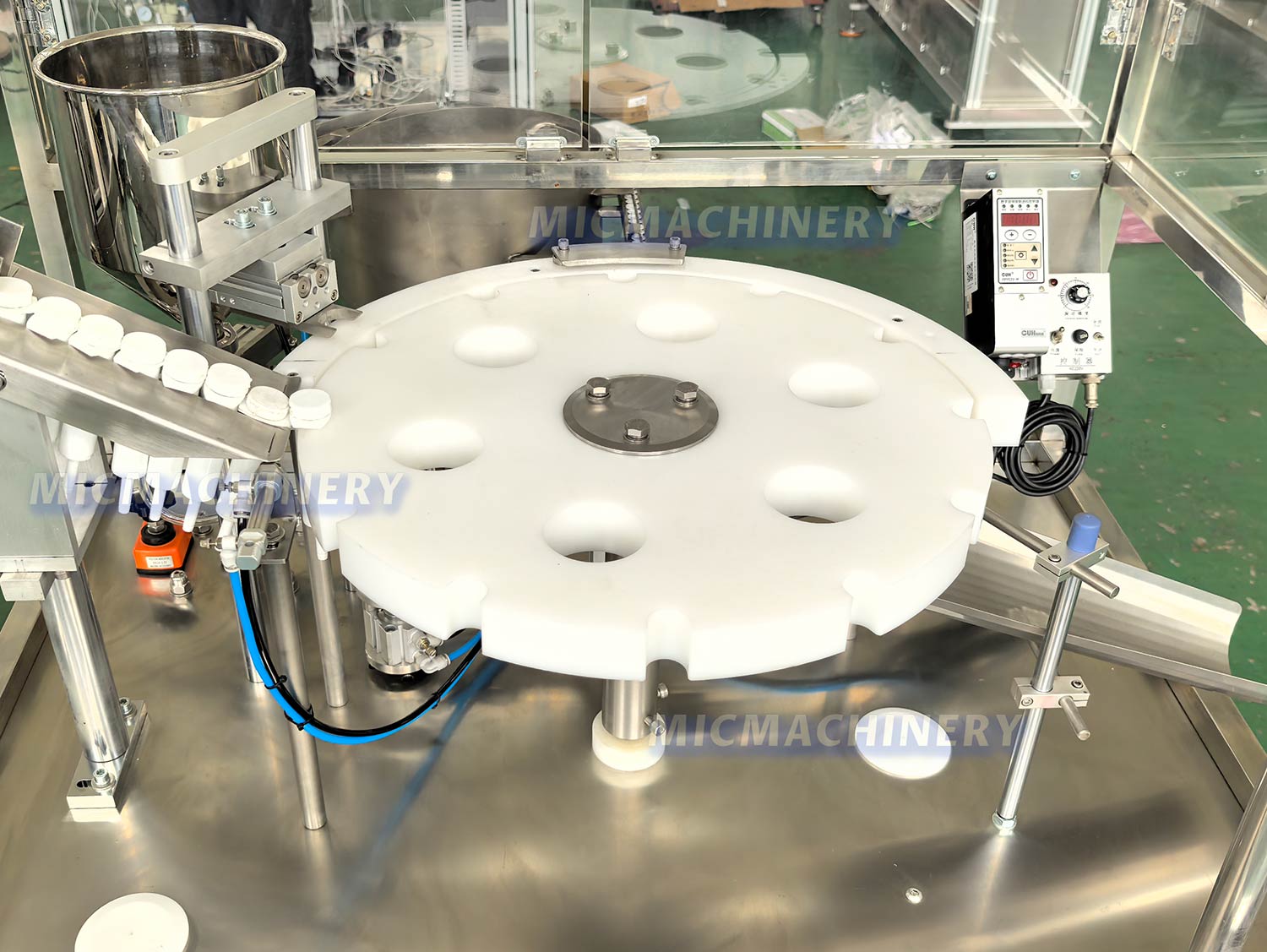

The main platform

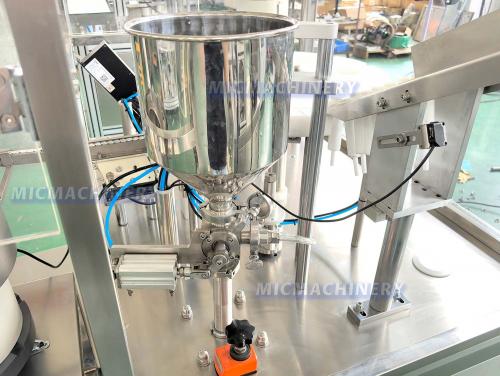

The picture includes mould, filling head,and automatic inside plug loading and pressplug stations.They are clear function and easy to clean.
Among them, the mould is used to fix the filling container and drive the container to move to the filling、capping and other stations. The circular design can save space while setting up multiple positions, so that the filling process is time-saving and efficient.
We can customize this mould, filling head, and so on

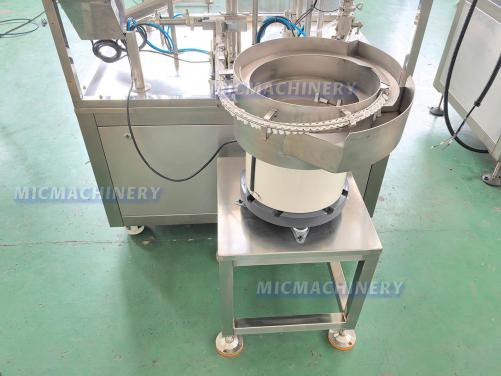

Inside plug loading automatically
Inside plug feeding cage with vibrating disk is connected to a pipe that carries the Inside plug ,They automatically arranges the Inside plug and deliver the Inside plug.
In this way, the syringe is covered in a consistent process, reducing the manual contact with the syringe process, and ensuring syringe hygiene,At the same time, labor costs are reduced
syringe auto loading system
When the syringes are lined up, the device will automatically load the syringes, which is very efficient to send the syringes to the location of the mold, the whole process is consistent and saves time
Syringe Filling Machine
model
SGJ
SGJ-1
SGJ-2
SGJ-3
application
medicine, chemistry, biology,etc
Packing type
various syringes, boosters, injection tubes,etc
speed
5000pcs/h
20-30pcs/min
800-1000pcs/h
800-1000pcs/h
Filling arrange
0.5-50ML
5-100ML
0.5-50ML
0.5-50ML
power
3.5KW
2KW
2KW
2KW
size
2500*1350*1600mm
1380*1030*1800mm
1800*800*1700mm
1800*800*1700mm
weight
1500KG
390KG
450KG
450KG
In addition to,If you're looking for syringe filling machine,pre filled syringe filling machine manufacturers,syringe filling equipment,pfs filling machine,automatic syringe filler,syringe filling machine manufacturer,automatic syringe filling machine,syringe filling machine manufacturers,prefilled syringe filling machine,prefilled syringe machine,oral syringe filling machine,aseptic syringe filling equipment,sterile syringe filling machine,prefilled syringe machine manufacturers,syringe filling machine price.You can browse our product website more.
If you are more than interested in the machine ,you can contact us at market@micmachinery.com
In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.
Filling volume |
5-50ml |
Filling speed |
800-1500pieces/hour |
Air consumption |
0.5Mpa,8m ³ /h |
Filling accuracy |
± 0.1g |
Power |
2.5KW,220v 50Hz |
Machine Size |
1600*1500*1800MM |
