This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.
Meet food health standard, could filling tomato sauce , chili sauce , mayonnaise and so on.
1. Adopt PLC programmable control system with touch screen interface.
2. Automatic bottle feeding, automatic filling, automatic bottle.
3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
4. Adopt double-ball screw rod filling the filling nozzle dive
5. It can be used with capping machine, labeling machine supporting the formation of the production line
6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.
7. Having a stable and reliable operation, high production efficiency, strong adaptability.
In the dynamic landscape of modern manufacturing, precision and efficiency are paramount, and our 20 Heads Linear Filling Machine emerges as a pioneering solution for aluminum can packaging. This cutting-edge machinery seamlessly integrates distinctive product characteristics, versatile applications, and advanced mechanical principles, setting new benchmarks in the industry.
Product Characteristics:
At the heart of this technological marvel is its 20 heads linear design, embodying a perfect synthesis of precision and speed. Meticulously engineered, this can filling machine boasts robust construction and advanced features, ensuring a seamless filling process for aluminum cans. Its adaptability and reliability make it an indispensable asset for businesses seeking top-tier packaging solutions. This aluminum can filling machine is designed to meet the diverse requirements of modern industries, ensuring that your products are not only packaged with precision but also in a manner that enhances efficiency and overall productivity.
Product Application:
Versatility is a cornerstone of this machine, catering to a broad spectrum of liquid products. Tailored for filling oil, paste, and honey into aluminum cans, this 20 Heads Linear Filling Machine is a versatile solution for industries spanning from food and beverage to pharmaceuticals. Whether you are a producer of cooking oils or specialty pastes, this machine ensures a uniform and efficient packaging process, enhancing the appeal of your products on store shelves.
Mechanical Principle:
The operational brilliance of this machine lies in its 20 heads linear configuration, orchestrating a seamless filling process. Precision-engineered, the linear mechanism optimizes the production line with unparalleled efficiency, ensuring uniformity in each aluminum can. This mechanical prowess accelerates production speed while maintaining the highest standards of accuracy, minimizing wastage, and maximizing overall output.
In conclusion, the 20 Heads Linear Filling Machine stands as a beacon of innovation in aluminum can packaging. With its distinctive product characteristics, versatile applications, and advanced mechanical principles, this machine is poised to redefine the standards of precision and efficiency in the industry. Whether you are filling oil, paste, honey, or other liquid products, this forward-thinking solution is ready to elevate your can filling processes and contribute to the success of your business.

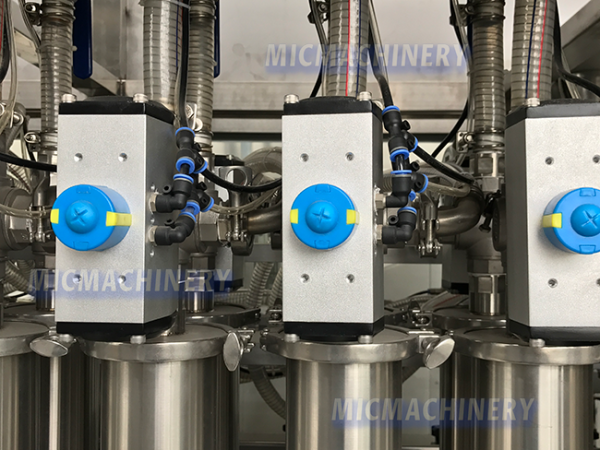

The three-way valve
The three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.
Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling

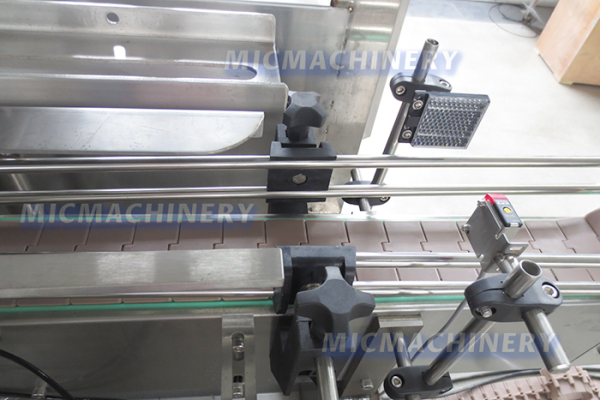

Conveyor belt
When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.
This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .
On the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap

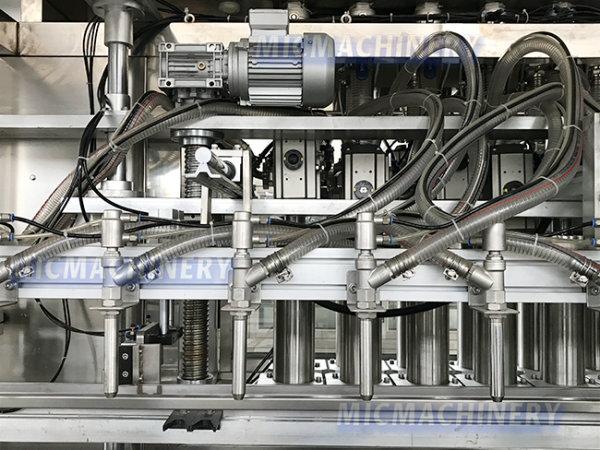

Filling head
The ketchup is put into the material cylinder, and the piston to pump the ketchup into the measuring cylinder. Then the piston moves up to send the ketchup to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.
(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)
If you want to know more models of filling machine, you can refer to the table below:
|
Model |
MIC V01 |
MIC-ZF4 |
MIC-ZF6 |
MIC-ZF8 |
MIC-ZF12 |
MIC-ZF16 |
MIC-ZF20 |
|
Application |
High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On |
||||||
|
Packing Type |
Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc |
||||||
|
Speed (basis on 50-500ml) |
1500 B/h |
2000B/h |
2500B/h |
3000 B/h |
4000B/h |
5000 B /h |
6000 B/h |
|
Filling Arrange |
10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l) |
||||||
|
Power |
30W |
3.5Kw |
3.6kw |
3.7kw |
3.8kw |
3.9Kw |
4.0Kw |
|
Size |
1000*480*700 mm |
1400*1450*2270 mm |
1400*1450*2270 mm |
1700*1450*2270 mm |
2000*1450*2270 mm
|
2300*1450*2270 mm |
2600 *1450*2270 mm |
|
Weight |
35 Kg |
500kg |
600kg |
700kg |
800Kg |
900 kg |
1000 kg |
In addition to,we have sauce filling machine,tomato sauce filling machine,hot sauce bottling machine,sauce bottling machine.
