Mic Machinery Lube Oil Filling Packing Machine
MIC-ZF4 Automatic Lubricant Oil Filling Machine
Lubricant Oil Filling Machine production speed is 1-600 tins per hour(16kg as standard). This machine can fill machine oil, lubricant oil, motor oil, engine oil, mobil oil and etc. This is a weighing machine. When you set a certain weight, it will stop filling up to the weight you set.
Machine Speed:1-6000 BPH
MIC1T-20L Manual Motor Oil Filling Machine
Motor Oil Filling Machine has one filling head and can fill 60-150 barrels per hour. This machine conveyor belt can take barrel arrive at a fixed position. Then the machine sensor the barrel coming, fill motor oil into the barrel, filling process without dripping, do not waste the material.
Machine Speed: 60-360 Barrels/h
Lube Oil Filling Production Line Advantages
Lube Oil Filling Production Line
Main Features
1）Automatic and Modular Design: The entire system integrates filling, capping, labeling, and packaging in a fully automated flow, reducing manual labor and improving efficiency.
2）Wide Viscosity Compatibility: Designed to handle various types of lubricants—from thin motor oil to thick gear oil—without changing core components.
3）Anti-Drip Nozzles: Equipped with precision nozzles that prevent dripping or overflow during filling, keeping bottles clean and reducing waste.
4）Customizable Bottle Handling: Compatible with multiple bottle sizes and shapes, with adjustable conveyors and guides for smooth transitions.
5）PLC + HMI Control System: Operated through a modern touchscreen interface with programmable logic control (PLC) for accurate, easy-to-monitor operation.
Working Principle

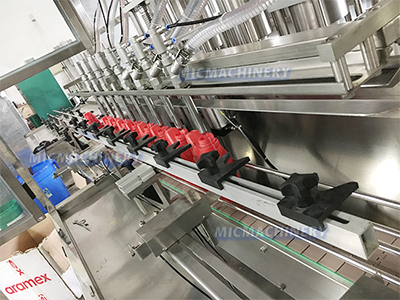

1）Bottle Feeding: Empty bottles are conveyed into the filling station via an automatic infeed conveyor, spaced accurately by a bottle divider.

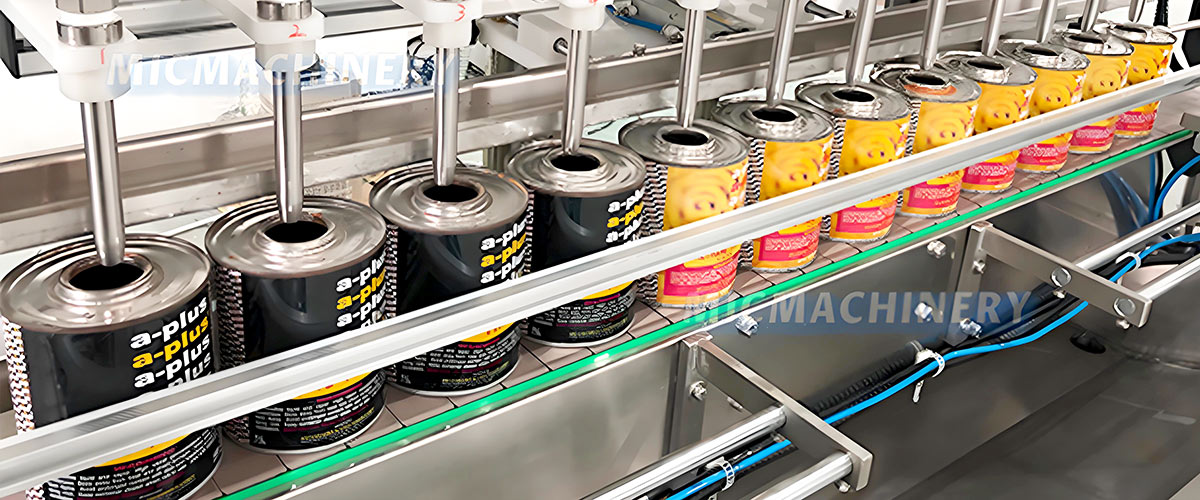

2）Precision Filling Process: Volumetric or flowmeter-based pumps measure and dispense the exact amount of oil into each bottle.
3）Drip-Free Nozzle Operation: As the nozzles descend, filling starts with bottom-up motion to prevent foaming and splashing.

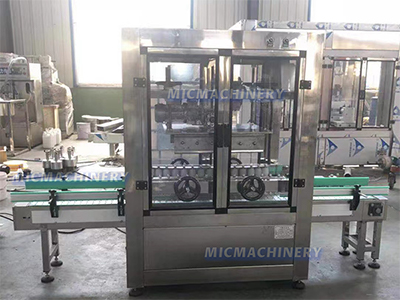

4）Capping and Sealing: After filling, bottles are moved to the capping station, where caps are placed and securely tightened using torque-controlled heads.
5）Labeling and Outfeed: Labeled bottles pass through quality checks before being directed to the packaging area, ready for boxing or palletizing.
Auxiliary Equipment

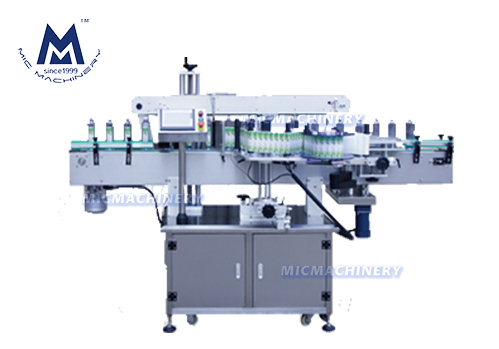

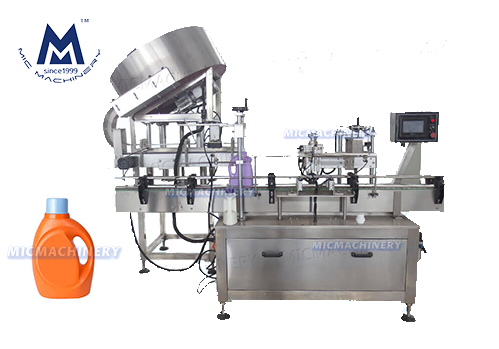

The Lube Oil Filling Production Line includes a capping machine for leak-proof sealing and a labeling machine for precise, professional labeling. These ensure product safety, brand consistency, and efficient packaging.
Lube Oil Filling Production Line parameter
|
Model |
|||||||||||
|
Filling Heads/Nozzles |
4 heads |
8 heads |
20 heads |
- |
1 head |
1 head |
4 heads |
3 heads |
6 heads |
2 heads |
2 heads |
|
Filling Volume Range |
5-30L |
50-1000ml |
200ml-2500ml |
1-300ml |
6L-30L |
100L-250L |
6L-30L |
6L-30L |
6L-30L |
6L-30L |
6L-30L |
|
Production Speed |
≤660 Tins/h (16kg basis) |
1800 Bottles/h |
≤6000 Bottles/h (1L basis) |
60-85 Tubes/min |
60-150 Bottles/h |
20-30 Bottles/h |
320-720 Bottles/h |
240-550 Bottles/h |
480-1000 Bottles/h |
150-320 Bottles/h |
160-360 Bottles/h |
|
Power |
3.33Kw |
- |
4.0 Kw |
1.1Kw |
4Kw |
4Kw |
4.5Kw |
4Kw |
5Kw |
4Kw |
4Kw |
|
Air Pressure |
0.5-0.7MPa |
0.55Mpa-0.6 5Mpa |
0.5-0.7MPa |
0.6-0.8Mpa |
- |
- |
0.6MPa |
0.6MPa |
0.6MPa |
- |
0.6MPa |
|
Weight |
800KG |
1000KG |
1000KG |
850Kg |
180Kg |
260Kg |
- |
- |
- |
180Kg |
- |
|
Dimension (L×W×H) |
2200×2580×3300mm |
2000x1400x 2500mm |
2650×1370×2230mm |
1950×800×1850mm |
900×1100×1500mm |
2200×900×1600mm |
2000×1900×2400mm |
1500×1900×2400mm |
2600×1900×2400mm |
900×1100×1500mm |
1200×1900×2400mm |
|
Applications |
Lube Oil, Machine Oil |
Lube Oil, Sauce, Mayonnaise |
Honey, Sauce, Water |
Paste, Cosmetic |
Lube Oil, Detergent |
Lube Oil, Detergent |
Engine Oil, Motor Oil |
Motor Oil, Engine Oil |
Motor Oil, Engine Oil |
Motor Oil, Engine Oil |
Lube Oil, Motor Oil |
MIC-ZF4 Lubricant Oil Filling Machine
Lubricant Oil Filling Machine production speed is 1-600 tins per hour(16kg as standard). This machine can fill machine oil, lubricant oil, motor oil, engine oil, mobil oil and etc. This is a weighing machine. When you set a certain weight, it will stop filling up to the weight you set.
MIC-ZF8 Lube Oil Filling Machine
Lube Oil Filling Machine has eight filling heads and can fill 1-1800 bottles per hour basis on 1000 bottles. Bottle loading automatically. When the machine sensor the bottle coming, then fill lube oil into bottles automatically. Use the touch screen to control the machine operation, and it is very easy to operate.
MIC-ZF20 Lubricant Filling Machine
Lubricant Filling Machine has twenty filling heads and can fill 6000 bottles per hour(1L as standard). The machine is equipped with anti-drip device, which can effectively prevent the occurrence of dripping phenomenon. The photoelectric counter is used, and the filling quantity shows clearly.
MIC-R60 Engine Oil Filling Machine
Engine Oil Filling Machine can fill 60-85 tubes per minute. This machine work process is tube loading-tube sensoring-tube filling-tube sealing-printing the dates code-cut tube tail-tube comes out the machine. The machine's turntable can be customized according to the size of the tube.
MIC1T-20L Motor Oil Filling Machine
Motor Oil Filling Machine has one filling head and can fill 60-150 barrels per hour. This machine conveyor belt can take barrel arrive at a fixed position. Then the machine sensor the barrel coming, fill motor oil into the barrel, filling process without dripping, do not waste the material.
MIC1T-200L Lubricant Filling Line
Lubricant Filling Line can fill 100L-250L drums, and filling speed is 20-30 drums per hour. This machine has feeding system, weighing system rack pneumatic control control system with power raceway and other components. The conveyor belt of the machine can stably transport large barrels without material waste.
MIC4T-20L Automatic Engine Oil Filling Machine
Automatic Engine Oil Filling Machine has four filling heads and can fill 320-700 barrels per hour. This machine uses a weighing system, where the control instrument displays the filling weight during the measurement process. The machine automatically stops filling when the filling weight reaches the preset weight
MIC3T-20L Automatic Lubricant Oil Filling Machine
Automatic Lubricant Oil Filling Machine has three filling heads and can fill 240-550 barrels per hour. The machine uses two sets of feeding systems, when filling two different properties of materials, can be switched at will. When the weight approaches the preset weight during filling, the filling speed will slow down to prevent overflow.
MIC6T-20L Lubricant Oil Packing Machine
Lubricant Oil Packing Machine has six filling heads and can fill 480-1000 barrels per hour. Filling mouth adopts anti-leakage device to prevent material overflow and waste. The machine uses multiple rows of conveyor belt, saving the space of the machine, convenient for the big bucket to enter the machine.
MIC2T-20L Semi Automatic Lube Oil Filling Machine
Semi Automatic Lube Oil Filling Machine has two filling heads and can fill 150-320 barrels per hour. The machine does not allow additional pressure interference when weighing and filling. Machine filling mode has ascending and descending diving filling. You can according your equipment to choose filling mode.
Automatic Lube Oil Filling Machine has two filling heads and fill 160-360 barrels per hour. The machine has a lid machine that you can customize to your own requirements. The weighing and filling machine relies on the operation of the gear pump to transport the liquid.
