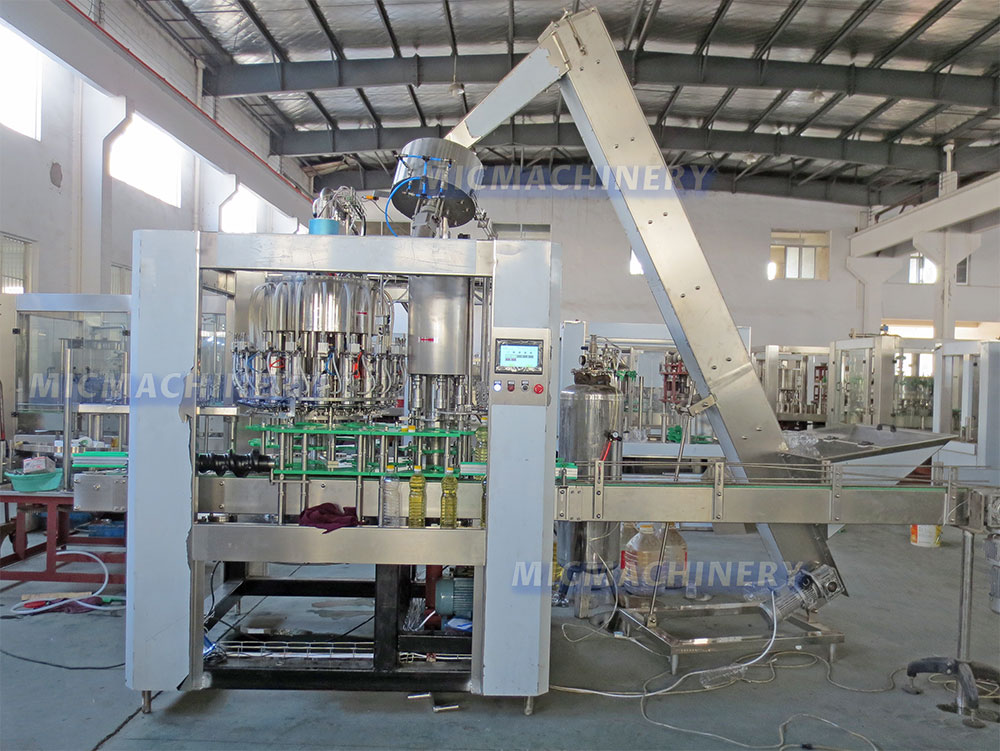

Rotary Type Olive Cooking Edible Oil Filling Machine
Rotary Type Cooking Edible Oil Filling Machine is adopt volumetric quantitative filling system. This machine is suitable for vegetable oil, cooking oil, olive oil, edible oil, sunflower oil, peanut oil, etc and other oil products.
Machine Speed: 1800-8000 BPH
Linear Edible Olive Oil Filling Machine
Linear Edible oil filling machine filling system is made for cosmetics package food bottle medical products and chemical products, easy clean and changes, we have automatic piston opening for cleaning. It is a practical machine for production and clean, 24 hours runs none stops, hardly have machine break down once well adjusted.
Machine Speed: 300-1800 BPH
Olive Oil Filling Machine Line operation flow:
1. Put the bottles on the conveyor belt
2. Then the conveyor belt carries the bottle into the machine
3. Fill edible oil into bottles automatically
4. Bottle come into the next station ( capping station )
5. Put the cap on the bottle then screw the cap
6. Then bottle come into the labeling station
7. Labeling bottles automatically
8. Stamp the date on the bottles
9. Bottles shrink sleeve labeling station
10. Bottles carton packing station or film shrink srapping machine
11. Place the packed bottle carton on a tray for transportand winding
|
PET / PP / PE / Glass / Metal |
Round / Square / Unique Shape |
0.2L-6L |
4-20 |
300-8000BPH |
|
Filling Valve |
Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage. |
|
Cap Closing Method |
Applicability for both crowning and capping, mechanical instant sealing or servo controlled sealing |
|
Bottle Components |
Rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps |
|
Filling Precision |
Limit deviation: ±2-3g Standard deviation: 1.5 |
|
User Ambient Conditions |
Temperature: 10~40℃ Humidity: No dew |
|
User Electrical Supply Specification |
Voltage: 380V±5% 3phase Frequency: 50HZ±1% |
MIC 18-4 Rotary Type Edible Oil Bottle Filling Machine
Edible Oil Bottle Filling Machine is mainly used for oil bottle filling and capping. Its structure is advanced, stable, reliable, safe operation, convenient maintenance, the use of frequency conversion speed control, high production efficiency, is the ideal equipment for big and medium sized food and oil factory.
MIC 18-6 Rotary Type Cooking Oil Glass Bottle Filling Machine
Cooking Oil Glass Bottle Filling Machine is equipped with a set of adjustment device, so that customers can fill 500ml~2000ml bottles without changing the measuring cup, only adjust the measuring cup capacity. No bottle no filling function.
MIC-ZF8 Linear Edible Oil Filling Machine
Edible oil filling machine is made for cosmetics package food bottle medical products and chemical products, easy clean and changes, we have automatic piston opening for cleaning. it is a practical machine for production and clean, 24 hours runs none stops, hardly have machine break down once well adjusted.
MIC-ZF4 Bean Oil Filling Machine
Bean Oil Filling Machine has four filling heads can fill 192-220 bottles per hour(25L for example). This machine filling volume range can adjust, can fill 5L-25L barrels. This machine use PLC control system to control machine work process. If machine happen a failure occurs, it automatically stops working.
MIC-ZF6 Olive Oil Bottling Machine
Olive Oil Bottling Machine has six filling heads can fill 1300-1500 bottles per hour basis on 100ml bottles. This machine can fill 100ml-5l bottles(according to customer different bottle volume customize the control filling volume cylinder). Oil filling production line also has capping machine and labeling machine.
MIC-ZF12 Oil Bottle Filling Machine
Oil Bottle Filling Machine has twelve filling heads can fill 3000 bottles per hour based on 350ml. This machine can also fill food, chemical, cosmetic and agrochemical industry, such as oil, sauce, ketchup, honey, shampoo, lubricant oil and etc. Control parts with 316 stainless steel and other main parts made of 304 stainless steel.
MIC-ZF16 Olive Oil Filling Machine
Olive Oil Filling Machine has sixteen filling heads can fill 3200 bottles per hour. And machine filling capacity is 100ml-5000ml. This machine operation can be done on the touch screen, and uses the PLC control, more convenient and simple. We will also provide installed training courses and after-sales service.
MIC-ZF20 Vegetable Oil Filling Machine
Vegetable Oil Filling Machine has twenty filling heads can fill 1-4000 bottles per hour basis on 1L bottle. Working process is bottle loading filling and capping automatically. If you want to label bottles, we can add labeling machines. And this machine can fill liquid and cream products, especially for high viscosity materials.
MIC Rotary Glass Bottle Oil Filling Machine
Rotary Glass Bottle Oil Filling Machine has eighteen filling heads and sealing heads, can fill 3000-6000 bottles per hour based on 500ml bottles. This machines are made of stainless steel 604, which is not easy to corrode and meets the hygiene requirements. The bottle is also rinsed before filling to keep the bottle clean.
MIC-V01 Semi Automatic Oil Filling Machine
Semi Automatic Oil Filling Machine has single head can fill 5-25 bottles per minute. The machine uses SUS304 material, beautiful appearance, simple and easy to operate, you can choose automatic work or operation pedal control. We can customize the machine as you require. And filling volume can easy adjust.
Trigger Capping Machine can automatically locate the position of the bottle, and automatically spin the cover. The machine can be customized according to the size of the customer's bottle cap. The bottle is not twisted and scratched during the capping process. As the bottle enters and leaves the machine, we guarantee that the bottle will not get stuck in the machine.
In-Line Catch Cap Machine is highly stable and can be accurately positioned to locate the bottle. During the upper capping process, the plc control is used to retain the data. When replacing the bottle cap, you only need to replace the rotary cover head of the machine, which is more convenient to operate. The spinner is fast. And the machine parts are made of stainless steel, in line with the GMP standards.
MIC-Linear Screw And Press Capping Machine
Linear Screw And Press Capping Machine automatically sends the cap in and puts the cap right. This kind of machine is suitable for various sizes of round bottles, square bottles (barrels), flat bottles (barrels), different bottles (barrels). Speed can reach 3,000 bottles per hour.
MIC-ZF1 Automatic Press Cap Machine
Automatic Press Cap Machine the cap will be placed on the orifice in the vibration plate along the direction of the tunnel. The bottle cap presses the lid when placed on the bottle. Press the lid tightly onto the bottle. This machine can be customized to meet customer requirements. The machine is very convenient to adjust, and it is relatively easy to operate.
MIC-Linear Screw Spray Gun Cap Machine
Linear Screw Spray Gun Cap Machine suits various sizes of round bottles, square bottles (barrels), flat bottle (barrels) and shaped bottles (barrels). Machine speed is 5000 bottles per hour.The spin cover speed of the machine can be adjusted as needed.

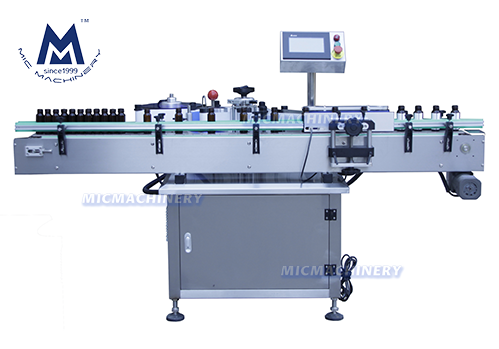

MIC Round Bottle Labeling Machine
Round Bottle Labeling Machine after the bottle is placed on the conveyor belt, it is sent to the labeling system. The label will be removed from the drum and affixed to the bottle. The marking process is very convenient. The machine is beautiful and simple.The machine labeling speed is 50-120 vials/min (speed adjustable, depending on object size and label length)
MIC Double-Sided Adhesive Labeling Machines
Double-Sided Adhesive Labeling Machine speed is 120-250 vials/min (adjustable speed, depending on object size and label length). Operation process: product placement (line connection) -- > product delivery -- > product separation -- > labeling (automatic realization of equipment) -- > collection of labeled products.
Sleeve Labeling Machines Capacity(production speed) is 150 bottles per minute. The newly designed cutter stepper motor which speed is high ,action is exact,the cut is in order and the shrinking is beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
