MIC Explosion Proof Labeling Machine
The MIC Explosion Proof Labeling Machine from Mic Machinery is designed for safe and stable labeling in hazardous and flammable environments. With a focus on operational safety and labeling accuracy, it is widely used in chemical, pharmaceutical, and other industries where explosion protection is essential.
As a professional explosion proof labeling machine, it is equipped with explosion-proof electrical components and a reinforced mechanical structure to ensure reliable operation in areas containing combustible gases, vapors, or dust. The machine maintains consistent labeling performance while meeting strict industrial safety standards.

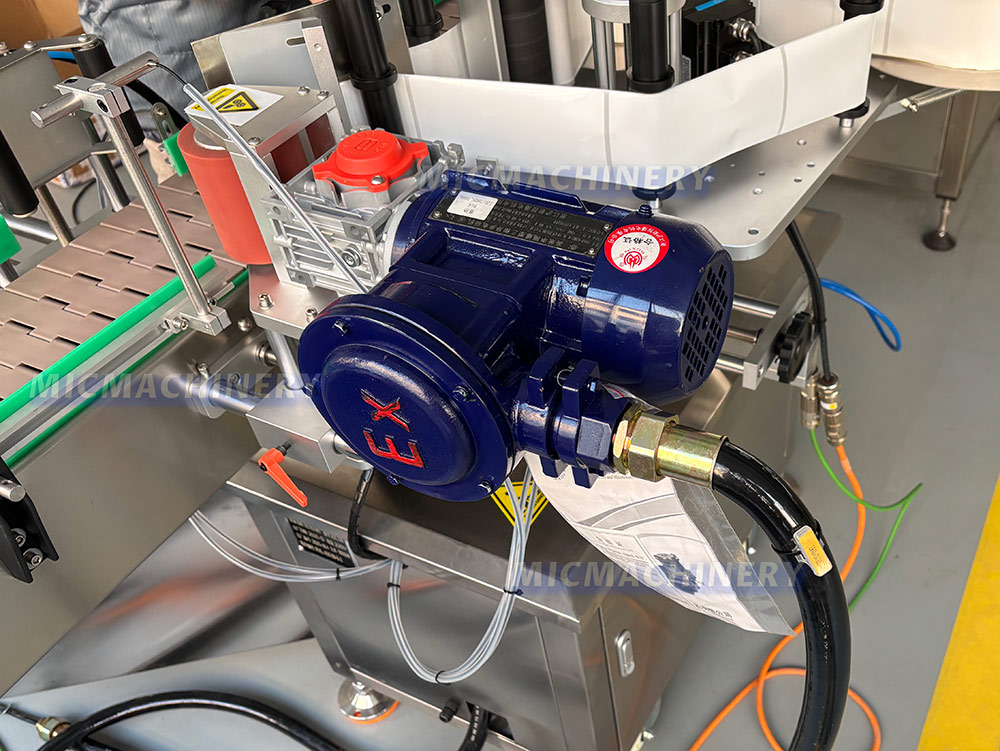

Explosion-proof Motor
All main drive motors are explosion-proof type, designed for use in flammable and explosive environments. They provide stable output, low heat generation, and high safety compliance, suitable for chemical, pharmaceutical, and solvent-handling applications.

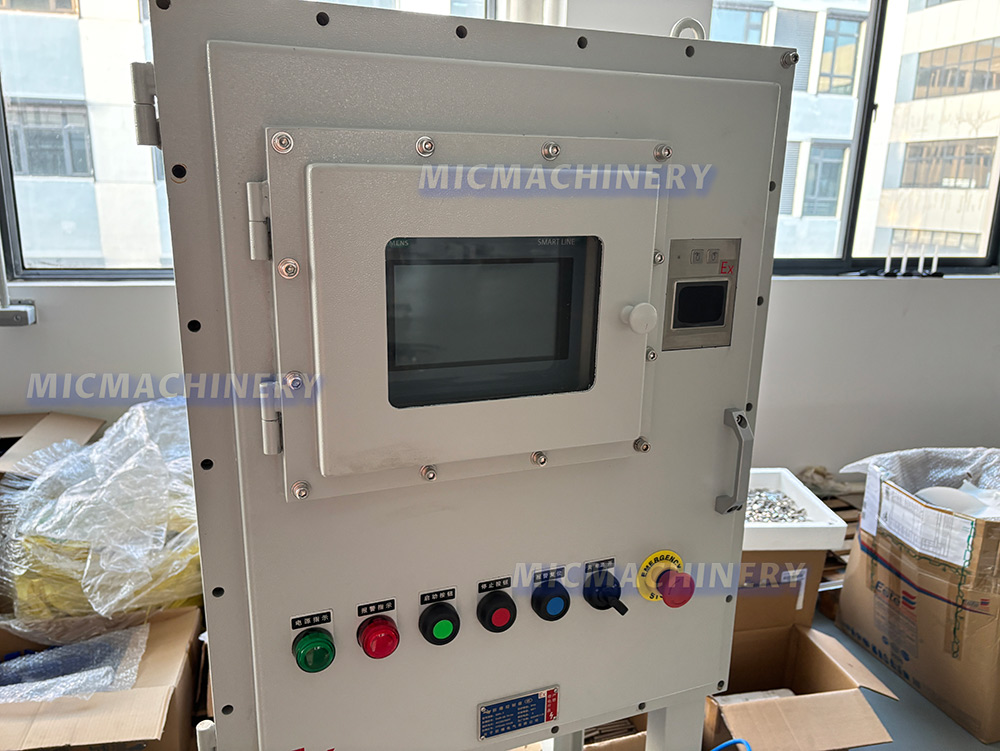

Explosion-proof Electrical Control Cabinet
The machine is equipped with a certified explosion-proof electrical cabinet. All electrical components are safely enclosed to prevent sparks or heat from igniting flammable gases or vapors, ensuring reliable operation in hazardous environments.

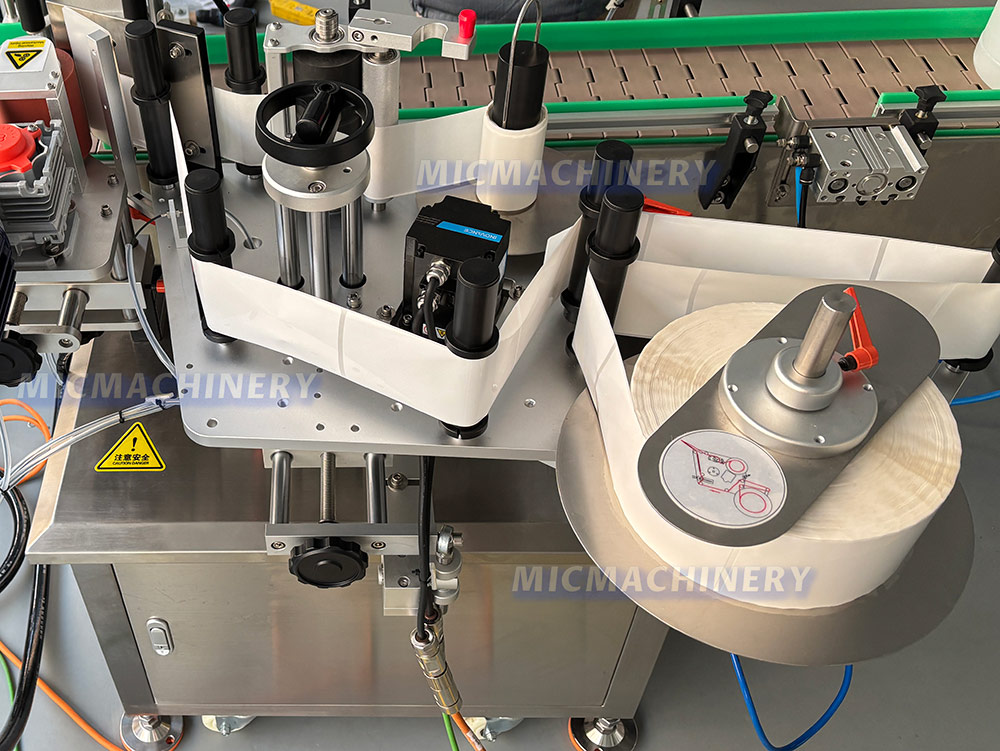

Label Roll Assembly
Elegant and compact design with dust-proof structure. Label replacement is simple and quick, improving operational efficiency and reducing downtime.
Optimized for Round Bottle Labeling
This equipment is specially configured to work as a Round Bottle Labeling Machine, making it ideal for cylindrical containers made of plastic, glass, or metal. The precise positioning system ensures accurate label placement and smooth operation.
Key features include:
· Stable bottle separation and feeding system
· Adjustable labeling position for different bottle heights
· Smooth label application with no bubbles or wrinkles
These features make the machine suitable for labeling chemical liquids, solvents, lubricants, and other sensitive products.
Explosion-Proof Structure and Control System
As reliable explosion proof labeling equipment, the MIC Explosion Proof Labeling Machine uses certified explosion-proof motors, sensors, and electrical cabinets. The control system is designed for both safety and ease of use.
Main advantages include:
· Explosion-proof electrical configuration for hazardous zones
· User-friendly touch screen interface
· Emergency stop and safety interlock functions
· Stable operation during long production runs
Operators can easily adjust labeling speed, label length, and bottle specifications, reducing setup time and improving productivity.
Flexible Application and Customization
The machine can be operated independently or integrated into an automated production line. It supports various self-adhesive label materials and is suitable for different industrial packaging requirements.
Customization options are available for:
· Bottle diameter and height range
· Label size and application position
· Production capacity and line layout
This flexibility allows Mic Machinery to deliver solutions tailored to specific customer needs.
Trusted Solution from Mic Machinery
With extensive experience in industrial labeling systems, Mic Machinery provides equipment that combines safety, durability, and precision. The MIC Explosion Proof Labeling Machine is a dependable choice for manufacturers seeking secure and efficient labeling in explosion-risk environments.
|
Parameter |
Specification |
|
Voltage Specification |
AC220V 50/60Hz |
|
Power Consumption |
1500W |
|
Labeling Speed |
10–30 bottles/min (adjustable, depending on object size and label length) |
|
Labeling Accuracy |
±1mm (varies by product characteristics, hardness and roundness) |
|
Bottle Diameter |
152–155mm |
|
Object Range |
350–355mm (customizable per customer requirements) |
|
Label Specification |
140mm×260mm (special specifications available on request) |
|
Label Roll Dimensions |
Inner diameter: Φ76mm; Outer diameter: Φ300mm (max) |
|
Weight |
200KG |
|
Conveyor Belt Width |
Customizable according to sample bottle diameter provided by customer |
|
Serial No. |
Item Description |
Quantity |
Unit |
Brand |
Model |
|
1 |
HMI (Human-Machine Interface) |
1 |
Unit |
Siemens |
6AV6 648-0CC11-3AX0 |
|
2 |
Programmable Logic Controller (PLC) |
1 |
Unit |
Siemens |
6ES7 288-1ST20-0AA0 |
|
3 |
Conveyor Motor |
1 |
Unit |
Huxin |
Explosion-proof type: YB3-63M14-180W |
|
4 |
Conveyor Motor Reducer |
1 |
Unit |
Chaogang |
NMRV040-30 |
|
5 |
Conveyor Motor Inverter |
1 |
Unit |
Delta |
VFD004EL21W |
|
6 |
Positioning Motor |
1 |
Unit |
Huxin |
Explosion-proof type: YB3-63M14-180W |
|
7 |
Positioning Motor Reducer |
1 |
Unit |
Chaogang |
NMRV040-20 |
|
8 |
Positioning Motor Inverter |
1 |
Unit |
Delta |
VFD004EL21W |
|
9 |
Labeling Motor |
1 |
Unit |
Schneider |
Explosion-proof type: EXRDM3913 |
|
10 |
Labeling Motor Driver |
1 |
Unit |
MOTEC |
SD3228N |
|
11 |
Label Sensor |
1 |
Set |
Keyence |
FS-N18N |
|
12 |
Labeling Sensor |
1 |
Set |
Keyence |
LR-W500 |
|
13 |
Synchronous Timing Belt |
1 |
Set |
Haito |
270XL-050 |
|
14 |
Explosion-Proof Electrical Cabinet |
1 |
Set |
— |
Flameproof type |
|
15 |
Low-Voltage Electrical Components |
1 |
Set |
Omron |
— |
|
16 |
Pneumatic Components |
1 |
Set |
Airtac |
— |
|
17 |
Solenoid Valve Coil |
1 |
Piece |
AMISCO |
— |
|
18 |
Conveyor Belt |
1 |
Set |
YAWA |
— |
|
19 |
Machine Frame |
1 |
Set |
304 Stainless Steel |
— |
|
20 |
System Integration |
1 |
Set |
Ruixun |
— |
