Experience unparalleled efficiency and precision in paste filling with our cutting-edge 6 Heads Automatic Paste Filling Machine. Specifically designed for paste products, this innovative solution streamlines your operations, ensuring consistent and accurate results with every fill.
Effortlessly fill containers with various types of pastes, including creams, gels, or sauces, using our state-of-the-art automatic machine. With six precision heads, you can maximize throughput while maintaining precise control over filling volumes, minimizing product wastage, and optimizing efficiency.
Seamless integration into your production line is facilitated by our user-friendly interface and customizable settings. With automatic operation and intuitive controls, our machine offers unparalleled convenience, allowing you to adapt to different paste filling requirements with ease.
Boost productivity and minimize downtime with the reliability and durability of our 6 Heads Automatic Paste Filling Machine. Built to withstand the demands of continuous operation, this robust equipment ensures consistent output and superior product quality.
Invest in precision-driven automatic paste filling with our 6 Heads Automatic Paste Filling Machine. Stay ahead of the competition and meet the demands of today's market with ease. Contact us now to discover how this advanced solution can revolutionize your paste filling process.
This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.
1.Adopt PLC programmable control system with touch screen interface.
2. Automatic bottle feeding, automatic filling, automatic bottle.
3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
4. Adopt double-ball screw rod filling the filling nozzle dive
5. It can be used with capping machine, labeling machine supporting the formation of the production line
6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.
7. Having a stable and reliable operation, high production efficiency, strong adaptability.

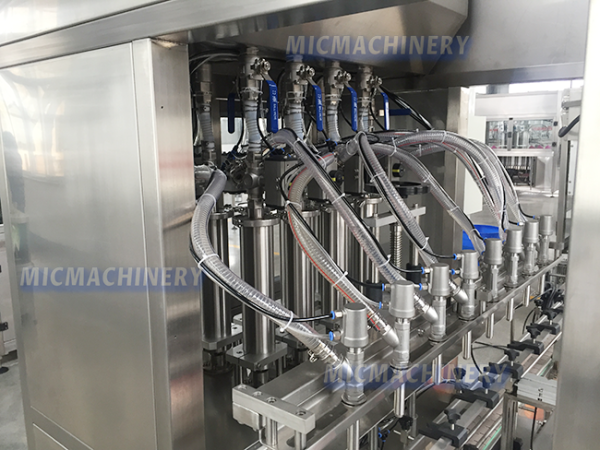

filling head
The cream is put into the material cylinder, and the piston to pump the cream into the measuring cylinder. Then the piston moves up to send the cream to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.
(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)

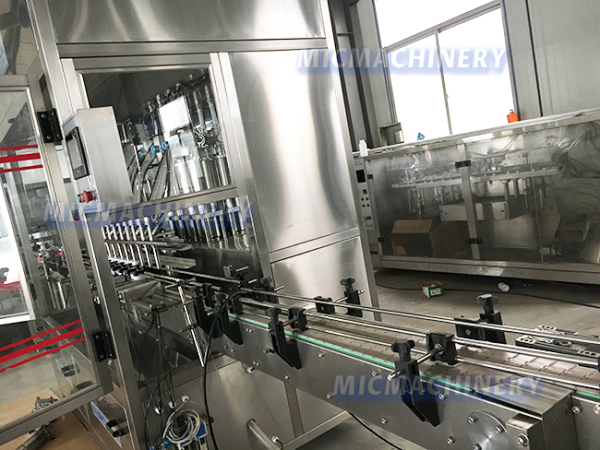

Conveyor belt
When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.
This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .
on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap
If you want to know more models of filling machine, you can refer to the table below:
|
Model |
MIC V01 |
MIC-ZF4 |
MIC-ZF6 |
MIC-ZF8 |
MIC-ZF12 |
MIC-ZF16 |
MIC-ZF20 |
|
Application |
High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On |
||||||
|
Packing Type |
Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc |
||||||
|
Speed (basis on 50-500ml) |
1500 B/h |
2000B/h |
2500B/h |
3000 B/h |
4000B/h |
5000 B /h |
6000 B/h |
|
Filling Arrange |
10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l) |
||||||
|
Power |
30W |
3.5Kw |
3.6kw |
3.7kw |
3.8kw |
3.9Kw |
4.0Kw |
|
Size |
1000*480*700 mm |
1400*1450*2270 mm |
1400*1450*2270 mm |
1700*1450*2270 mm |
2000*1450*2270 mm
|
2300*1450*2270 mm |
2600 *1450*2270 mm |
|
Weight |
35 Kg |
500kg |
600kg |
700kg |
800Kg |
900 kg |
1000 kg |
In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.
filling head
The honey is put into the material cylinder, and the piston to pump the honey into the measuring cylinder. Then the piston moves up to send the honey to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.
(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)
Conveyor belt
When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.
This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .
on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap
in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.
Filling head
6 heads
Filling volume range
100ml-5L（according to customer different bottle volume customize the control filling volume cylinder）
Production speed
1300-1500 Bph basis on100ml bottle
Voltage
220v/380v
Power
2.8kw
Suitable bottle’s diameter
Ф40mm-Ф250mm
Filling error
≤±1‰
Work pressure
0.55Mpa-0.65Mpa
Size
1840mm*1400mm*2500mm
Weight
600kg
Air consumption
0.9m^3/min
|
Touch screen |
Canada xinjie color |
|
PLC |
Schneider |
|
Solenoid valve |
Taiwan Airtac |
|
Optoelectronic system |
OPTEX |
|
Micro differential pressure switch |
Netherlands |
|
Servo motor |
Taiwan TECO |
|
Air source treatment |
Taiwan Airtac |
|
Button and low voltage electric appliance |
Schneider |
|
Ball screw |
Taiwan |
|
Reducer |
Taiwan VGM |
|
Switching power supply |
Taiwan meanwell |
|
Material |
Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel |
