Why the Client Contacted Us

By mid‑2021, a beverage bottling enterprise in Manila met a problem that many growing factories meet. Orders kept rising, but its old bottle filling machine could not keep up with production needs. Longer shifts did not solve the problem. Overtime costs kept rising. Deliveries were late again and again. Maintenance costs for the old machine stayed high.

The client came to MIC Machinery for a bottle filling machine solution that could raise output a lot without rebuilding the whole workshop. We checked the client’s bottle sizes, product mix, and output targets. Then the client ordered two complete filling machine sets.

Basic Project Information

Item	Details
Client Location	Manila, Philippines
Project Type	Capacity upgrade—replacement of aging filling equipment
Product Manufactured	Bottled beverages
Equipment Ordered	2 complete filling machine sets
Unit Price	USD 17,585 per set
Total Contract Value	USD 35,170
Shipping Method	Sea freight from Shanghai, China to Manila, Philippines
Contract Date	July 2021

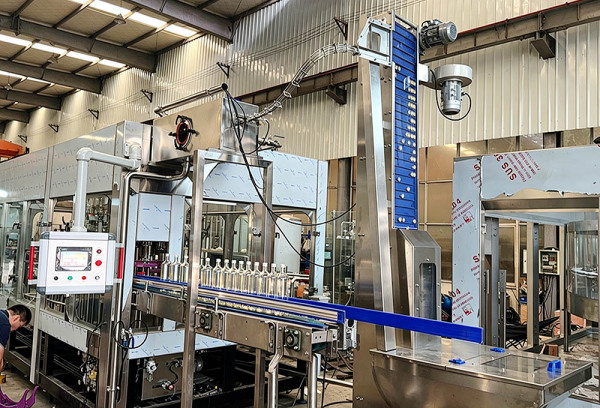

Line Design	Bottle filling machine plus conveyor system, with reserved layout space for future expansion to install capping machine and labeling machine

Client Requirements & Pain Points

The client’s problems show what most factories face when they shop for a new bottle filling machine:

① Output Ceiling. The old bottle filling machine became the bottleneck for the whole plant. Even with longer hours, the plant could not deliver all orders on time. When the client turned down distributor orders, competitors took shelf space.
② Heavy Maintenance Burden. The old bottle filling machine spent more time in repair than in running. The client had to find spare parts locally. Every breakdown pushed shipments back, so the client had to apologize to customers again and again.
③ Inconsistent Fill Volumes. Worn parts made fill levels visibly uneven. Some bottles were over‑filled, so material was wasted. Some bottles were under‑filled, so retail buyers complained.
④ Inefficient Changeover. Changing bottle sizes took almost one hour. So small‑batch production did not make money.
⑤ Clear Expansion Roadmap. The client told us at the start that it planned to add a capping machine and a labeling machine in the next phase. It wanted to remove manual handling. It asked the new line to include upgrade provisions from the first design. That would avoid extra costs later.

Customized Solution

Based on the client’s production data and workshop drawings, we supplied this configuration:

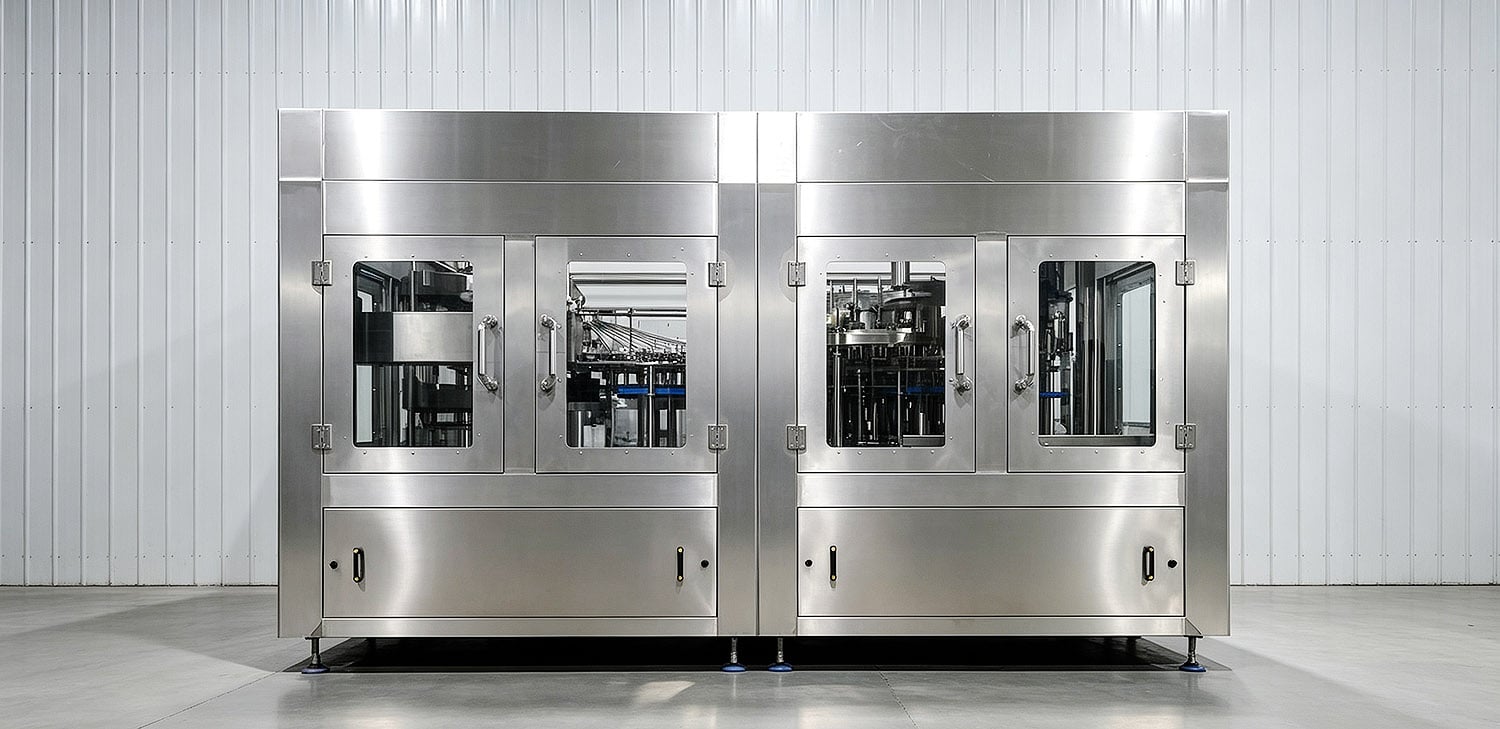

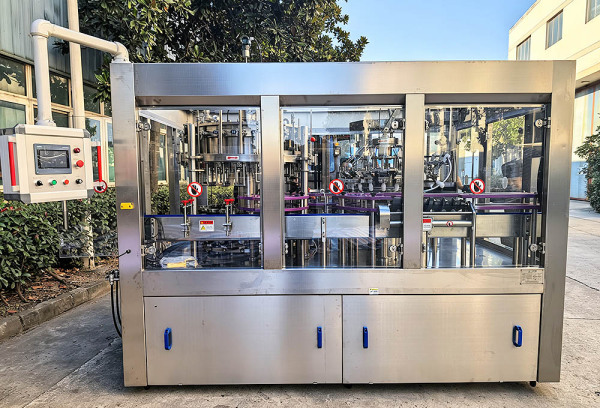

Filling Machine (2 sets): The multi‑head bottle filling machine system used food‑grade 304‑stainless‑steel parts that touch the product. It also used anti‑drip nozzles. Its built‑in no‑bottle‑no‑fill function cut material waste during changeovers and stops.

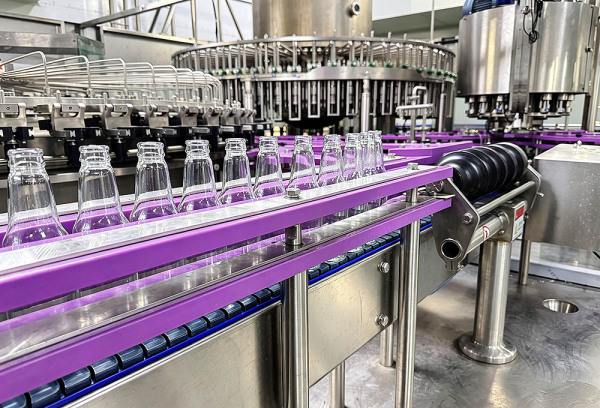

Conveyor & Bottle‑Handling System: The modular conveyor had adjustable guide rails and a variable‑frequency drive. With small adjustments, different bottle formats could run on the same line.
Expansion‑Ready Layout: We pre‑engineered conveyor length, machine height, and control logic. The client’s future capping and labeling machines can bolt directly onto the existing line. The client does not need to re‑engineer it.
Electrical Configuration: The line met Philippine power standards (220V/60Hz). It had an English‑language control panel.
Spare‑parts Package: We shipped a wear‑parts kit with the machine. It included seals, gaskets, nozzles, and pneumatic fittings. This directly solved the client’s long‑term spare‑part shortage.

On‑Site Installation & Commissioning

Shipping & Arrival: We made both machine sets and fully tested them at our Changzhou facility. Then we shipped them by sea from Shanghai to Manila. For international sea‑freight projects, Manila port customs clearance often takes longer than expected. We tell all clients to save lead time for this step.

Day 1 — Unloading & Positioning: After port clearance, our engineers supervised on‑site unloading at the client’s facility. We put the two machine sets in place per approved drawings. We leveled frames. We checked utilities: power, compressed air, and product inlet piping.
Day 2 — Mechanical Assembly: We connected conveyor sections to the filling units. We routed pneumatic circuits and product piping. We secured machine anchor points.
Day 3 — Electrical Commissioning & Water Test: We completed wiring. We set HMI parameters. We ran the first water‑based dry run. A field issue came up: minor dimensional tolerances on necks from a new batch of client PET bottles caused occasional bottle tipping at the infeed zone. We adjusted guide‑rail gaps and made small infeed‑station changes. We fixed the fault the same day.
Day 4 — Product Trial Run: We fed real beverage product into the line. We calibrated fill volumes for every filling head. We produced hundreds of bottles for quality inspection. The client’s QC supervisor signed off on acceptable filling consistency by day‑end.
Day 5 — Operator Training: We gave hands‑on practical training. It covered daily cleaning, nozzle disassembly, bottle‑size changeover, and basic fault diagnosis. This reduced the client’s reliance on scarce outside technicians.
Days 6‑7 — Trial Production & Project Handover: We supervised two days of commercial‑scale production. We locked final operating speed and stability parameters for the line. Both parties signed hand‑over documents and the spare‑parts checklist. Our team gave two more weeks of remote video technical support after that.

Production Performance

Metric	Old Equipment	New Filling Line
Output	Unmet order demands, regular overtime work	Full‑order delivery within standard shifts
Fill Consistency	Obvious level deviation, material loss from over‑filling	Uniform output across all filling heads; over‑fill waste eliminated
Changeover Time	Approx. 1 hour per bottle format	Minutes via adjustable guide rails and saved product recipes
Labour Per Shift	Multiple workers for material feeding and machine monitoring	1‑2 operators per line
Downtime Status	Frequent breakdowns, makeshift field repairs	Stable running, wear‑parts kept on‑hand
Bottleneck Condition	Old filler constrained overall plant throughput	Filler no longer a limiting factor; bottlenecks shift to downstream processes

The most telling improvement: several weeks after commissioning, client talks changed from “how can we catch up on backlogged orders” to “when can we buy capping and labeling machines to automate the remaining processes”.

Client Testimonials

“That old bottle filling machine cost us many orders last year. The new unit runs reliably every day since installation. It was not perfect—we had bottle‑fit issues in the first week—but your engineers fixed it on‑site. Honestly, that matters most to us.”
— Factory Owner

“Cleaning and bottle‑format changeovers are much faster than with our old bottle filling machine. Operators became skilled within two days. We wish we had done this upgrade one year earlier.”
— Production Supervisor

“Price was a big point for us. MIC gave the best overall value among several quotations. Everything came as promised, including the spare‑parts kit. We have budgeted for their capping and labeling machines in our next‑phase project.”

Request a Quotation for Similar Upgrades

If your existing bottle filling machine has become your plant’s production bottleneck, or you plan a new facility, we can match filling machine configurations against your real output targets:

Target Output	Recommended Configuration
500‑1,500 bottles/hour	Semi‑automatic filler plus conveyor line
2,000‑6,000 bottles/hour	Automatic multi‑head filling line (similar to this project)
6,000‑12,000 bottles/hour	High‑speed filling line + capping machine + labeling machine
12,000+ bottles/hour	Full turn‑key automatic filling line equipped with CIP cleaning system

Why Factories Select MIC Machinery

‑ We are a specialized filling machine manufacturer with much export‑project experience.
‑ We use food‑grade 304‑stainless‑steel product‑contact parts as standard.
‑ We custom‑build voltage and electrical systems to match local‑country specifications.
‑ We give free production‑line layout design based on client‑supplied workshop drawings.
‑ We provide global on‑site installation and operator‑training services.
‑ We include a wear‑parts kit with every machine and give a long‑term spare‑part supply guarantee.

Other Recommended Filling Equipment for Beverage Plants

Beyond the bottle filling machine line in this case study, MIC Machinery supplies a complete portfolio of wine and beverage filling equipment. From our wine & beverage filling‑machine series, these models fit beverage processors:

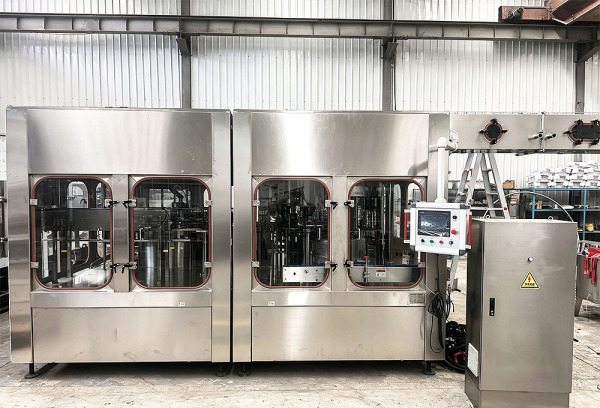

① MIC‑18‑18‑6 3‑in‑1 Glass‑Bottle Wine & Beverage Filling‑Capping Machine

This rotary monoblock unit combines bottle rinsing, filling, and capping in one unit. Its capacity is around 5,000 bottles per hour. We designed it for wine, spirits, and still beverages in glass bottles. Gentle bottle handling lowers breakage rates. Servo‑driven filling keeps fill volume stable. It is good for clients who want a complete glass‑bottle line without buying three separate standalone machines.

② MIC 12‑12‑1 Automatic Glass‑Bottle Soda Bottling Line (5,000‑12,000 BPH)

We built this line for carbonated beverages in glass bottles, including soda, sparkling water, and beer. It uses isobaric (counter‑pressure) filling with low‑temperature filling valves to keep carbonation and reduce foaming. Its compact rotary layout gives dependable capping performance. It is a good option for facilities that target carbonated‑drink markets.

③ MIC 14‑12‑5 PET‑Bottle Filling‑Capping Machine (3,000‑5,000 BPH)

This rotary combined filling‑capping unit works as a filler for non‑carbonated drinks such as juice, drinking water, herbal tea, and energy drinks in PET bottles. It handles bottle formats from 180 ml up to 1 L. It supports high‑speed indexing and filling. It works with screw caps and sports caps. It matches factories of similar scale to this Manila project.

④ MIC 18‑6 Can Filling‑Seaming Machine (4,000‑7,000 cans/hour)

This line is for beverage producers that expand into aluminium or tin‑can packaging for juice, cold‑brew coffee, herbal tea, and other non‑carbonated liquids. It combines high‑speed filling with robust double‑roll seaming for hermetic sealing and stable shelf‑life. It supports fast changeover for 130 ml, 250 ml, 330 ml, and 500 ml can sizes.

Yes, one machine can handle multiple bottle sizes. Units have adjustable guide rails and quick‑change nozzles. The control panel stores product recipes for different SKUs. Format changeover normally takes only several minutes.

Yes, you can install a capping machine or labeling machine at a later stage. We strongly advise advance planning. We build all our lines expansion‑ready. Capping and labeling units connect directly to existing conveyors and control systems without rework. That is exactly what we did for this Manila‑based client.

Yes, we provide on‑site installation, commissioning, and operator training. We also give free remote video support during early‑stage production.

After order confirmation, manufacturing takes several weeks, depending on configuration. Sea transit from Shanghai to Manila is about two weeks. Customs clearance adds more days. We recommend building schedule buffers.

Every machine ships with a wear‑parts kit for the first year of operation. We keep common components in stock for expedited international courier delivery.
