Working Principle of the Automatic Tube Filling Machine
Do you wonder how factories fill tubes with toothpaste creams and ointments fast and neat every day? The tube filling machine gives the answer. The tube filling machine does the whole process with no errors. This smart equipment loads the tubes and fills them with the right amount and seals them tight to make ready to sell products. The process goes smooth saves time and keeps clean. Today we explain the tube filling machine step by step simply to help you see its fast and stable work in factories.
Tube Loading and Feeding System
The whole process starts when empty tubes go into the machine. Most models have a big container or shaking bowl that holds many empty tubes at one time. Workers put the tubes in or an auto feeder sends them one by one to a turning table. Sensors watch the feeding and stop if any problem happens to stop jams. The tubes stand up in special holders and move around the machine like clock hands.
Loaded tubes wait for the next part. The machine only goes on when every spot is lined up right. This good start cuts waste and keeps the line going well all day. Factories like this step because it cuts labor work and one person can watch many machines at once
Automatic Tube Orientation Process

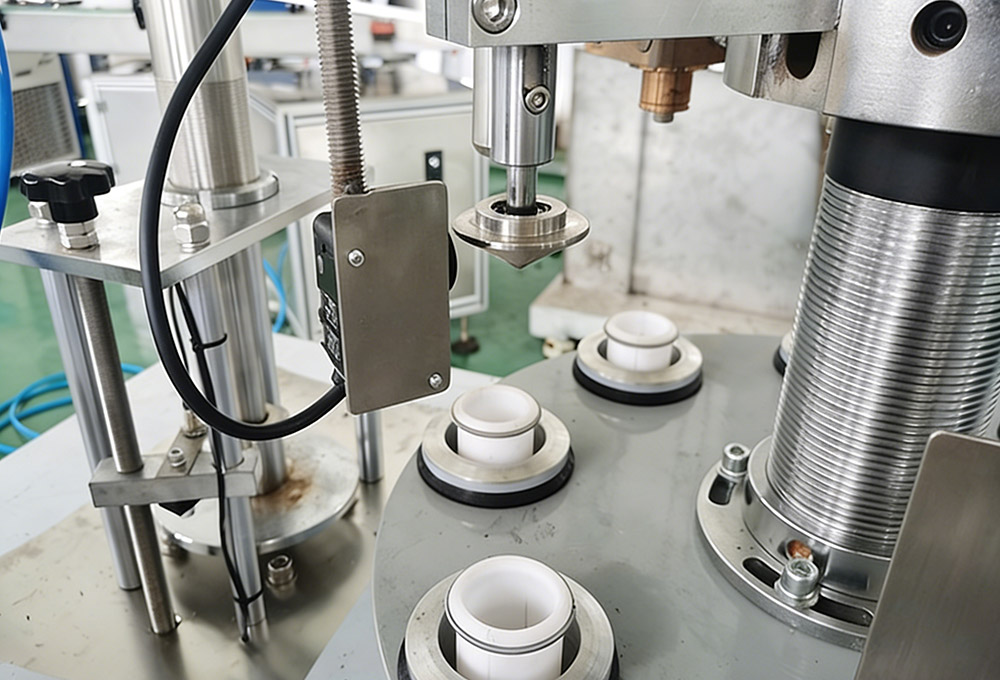

Then comes a smart step. The machine makes sure every tube faces the right way. A small light sensor or color scanner checks the mark on the tube. If the mark is wrong an air push turns the tube until it lines up right. This step takes one second but it is important for how the product looks at the end.
The sensor works like an eye that never stops. It checks every tube and sends back any that do not line up. The holder holds the tube once it lines up and sends it to the fill area. This step makes the brand mark face out and makes products look good and easy to sell on shelves.
If the tubes do not line up right the whole group of packages looks bad. The tube filling machine does this by itself so workers do not fix it later. It runs quiet and saves time and makes every tube look the same and good.

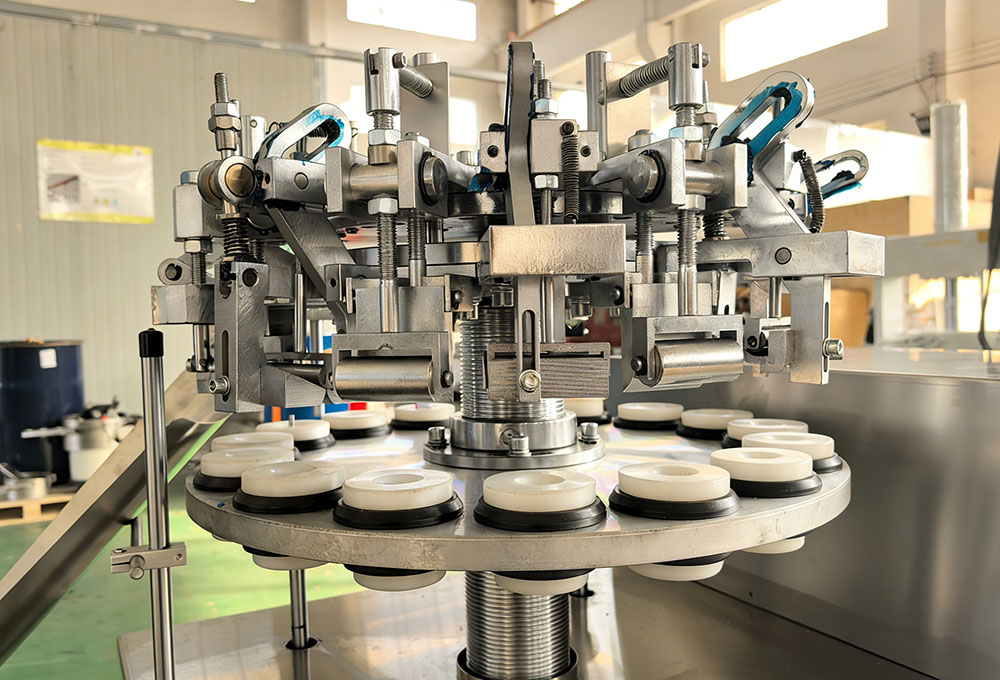

Precise Positioning for Filling
After the line up the machine moves each tube to the right spot under the fill heads. A turning table or move system goes step by step like a wheel and sensors put it right to the millimeter to stop spills.
The position step keeps the cycle smooth and quick. Tubes move from one part to another and the line does not stop. With this good system the machine can do 60 to 200 tubes each minute. It looks easy but the build behind it keeps it right for many hours.

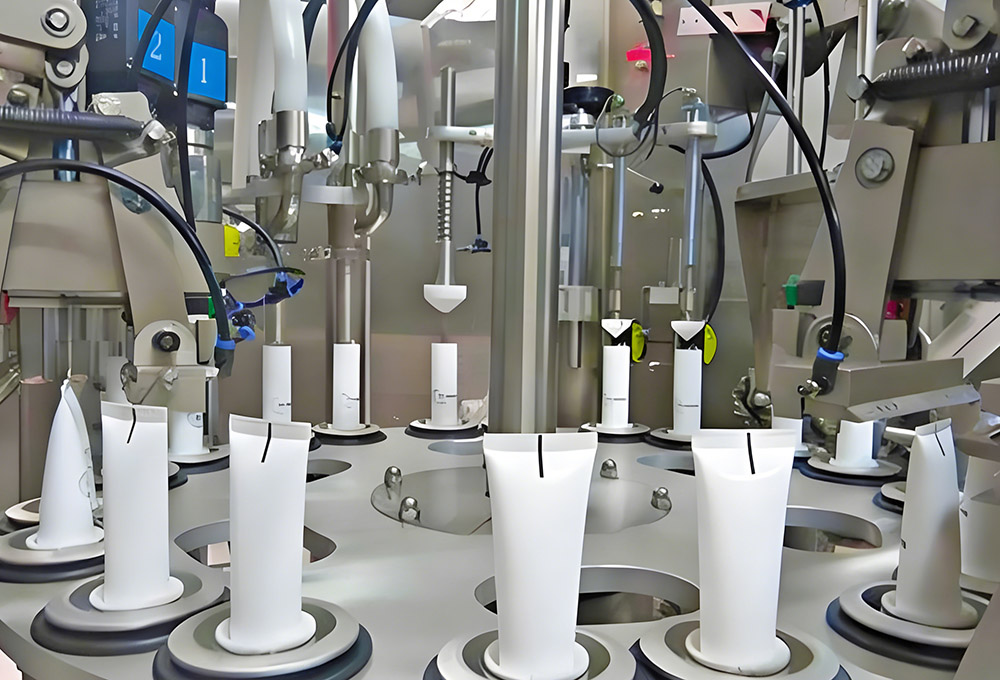

Product Filling Mechanism
Now we get to the main part. The machine puts creams gels and pastes into the tubes. The fill heads go down and push exact amounts of stuff with a pump or control system. The machine measures by amount so every tube gets the same no matter how thick the material is.
Big containers with heat keep thick stuff flowing and no clumps form. After fill the head goes up and the no leak part closes to stop drips and keep the tube clean for seal. When changing products workers change the fill amount on the screen in seconds.
The fill part handles stuff from thin to thick with no leak. The accuracy of the tube filling machine is under 0.5 percent and this means no waste. Workers like this part because it works the same every time and keeps the floor clean.
Tube End Sealing
Once filled the tubes go to the seal part.
Plastic tubes get sealed in seconds with hot air or sound tech. Hot air goes on at normal heat and a form presses the opening to bond it. Sound tech uses fast small shakes to make heat in one spot and saves power and keeps the tube safe.
The seal is strong and flat to stop leaks later. Some machines add a quick cool step to make the seal last longer. The goal is to keep the product safe inside the tube.
Sealing quality decides how long the product lasts. The machine does the seal and checks it and only good tubes go on. Factories pick hot air or sound seal for the tube type and both ways give nice clean seals.
Coding and End Trimming
Right after seal the machine prints numbers and dates on the end. Small ink or laser printers make clear marks that last through ship and store. For speed this happens at the seal station too.
Next comes the trim. A fast spinning knife cuts the extra plastic and leaves a clean end. A vacuum pulls away the bits to keep clean. It takes less than one second per tube.
Coding and trim finish the look of the package. The tube filling machine makes sure codes are clear and ends are neat. These small things help brands meet store rules and make customers happy at home.

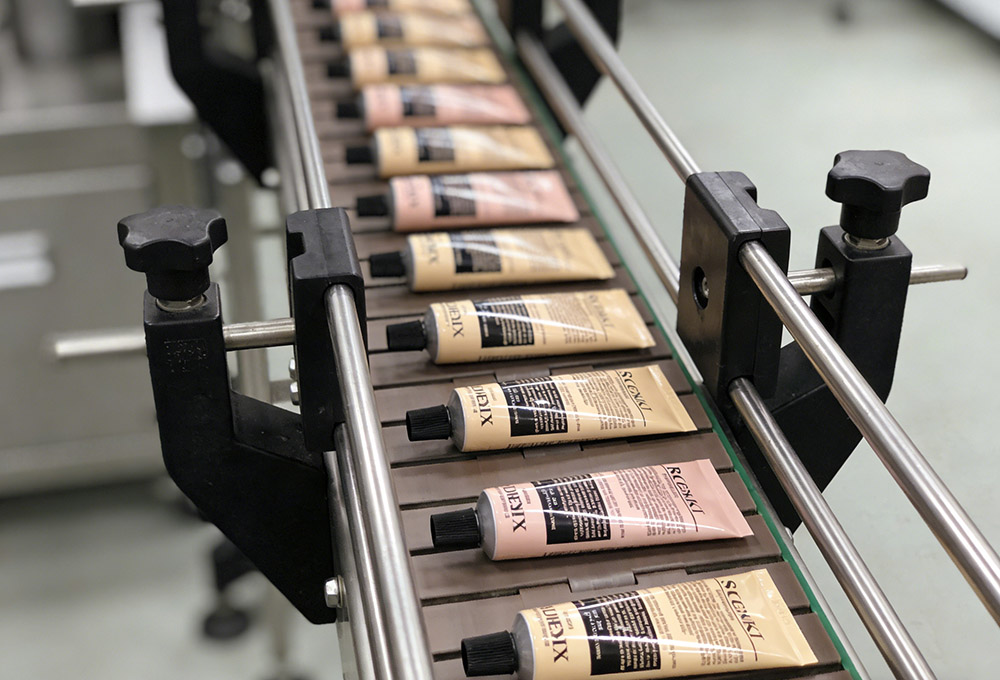

Product Discharge and Final Quality Inspection
The machine saves data for each group to trace quality. If it finds a bad tube it pushes it away and the line keeps going. This smart system keeps output high and catches problems fast.
Types of Tube Filling Machines
Tube filling machines come in many types and factories pick by size and cost. The common ones are half auto and full auto models. They use the same steps as above and differ only in how much people help. Picking the right one makes the pack line better. Small factories start with simple ones and big ones use fast versions. The good thing is all share the same main idea.
Semi-Automatic Tube Filling Machine
This is a cheap middle choice. Workers put empty tubes in holders by hand and push a button to start. After that the machine fills seals codes and pushes out tubes by itself. It costs less at first and takes small space and it works good for changes and small lots. Training new people is quick. Many companies use this to try the market before they get bigger gear.

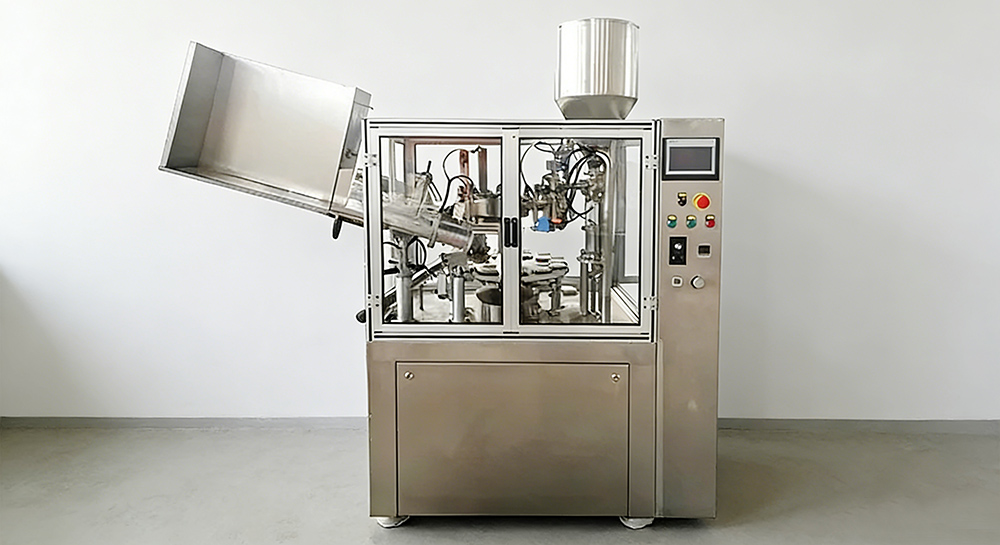

Fully Automatic Tube Filling Machine
This is the best for big production. Workers pour empty tubes in the box set numbers on the screen and the tube filling machine does all steps with no people. Sensors watch all and it runs steady at hundreds of tubes each minute. It cuts workers and mistakes and it is good for big factories that make the same thing all day. The price is high at start but it pays back fast with speed and same results.
Both types give clean and right fill and the auto one makes more with less people.
You understand these ideas you can pick the right tool and keep your line going steady. If you deal with creams gels or pastes a good tube filling machine changes your pack work and makes it easy.
