Feature of carton packing machine:

Carton automatically open and transfer, automatically load the material into carton;  And complete both ends of the paper tongue and other complex packaging process.  The appearance of the machine is all made of high quality stainless steel shell, strictly in accordance with the pharmaceutical industry "GMP" standard innovative design.  The transmission part designed overload protection function, and set up an emergency stop device, the control system adopts man-machine interface video screen, to ensure the safety of the operator.

Main performance and structural characteristics of carton packing machine:

1. Adopt automatic feeding, box opening, box entering, box sealing and output. Packaging form, compact and reasonable structure, simple operation and adjustment;

2. Servo/stepper motor and touch screen, PLC programmable control system, man-machine interface display operation is more clear and simple, high degree of automation, more humanized;

3. Photoelectric eye automatic detection and tracking system, no product no box, save the packaging material to the greatest extent;

4. Large packing range, convenient adjustment, quick conversion between various specifications and sizes;

5. No need to change the mold to replace the specifications, just adjust it to achieve;

6. When there is no product or product supply is not in place, the machine idles without pushing the product. When the product is restored to supply, it will automatically run.

7. Automatic display of packing speed and counting:

8. According to customer requirements, the use of upturn type safety cover, easy to operate, beautiful appearance.

9. Linkage production can be realized with other production lines and other equipment;

10. Automatic feeder and box feeding system can be designed according to packaging requirements;

11. Hot melt glue machine can be selected according to customer requirements.

Operation brief:

Pre-operation preparation

Check whether the power/air source is connected properly before operation

The cartons are put into the carton bin in sequence, and the equipment can be run after the protective cover is closed

The operating process principle is introduced

1. When the packing machine connects with the sealing filling machine, the products will be transferred to the material conveyor belt of the packing machine automatically and orderly

2. There are light eyes on the material conveyor belt, which will control the carton warehouse to open the box after detecting the product

3. The product and carton will be synchronized to the push port

4. Push rod work, push the product into the corresponding carton, sealing mechanism work, carton sealing

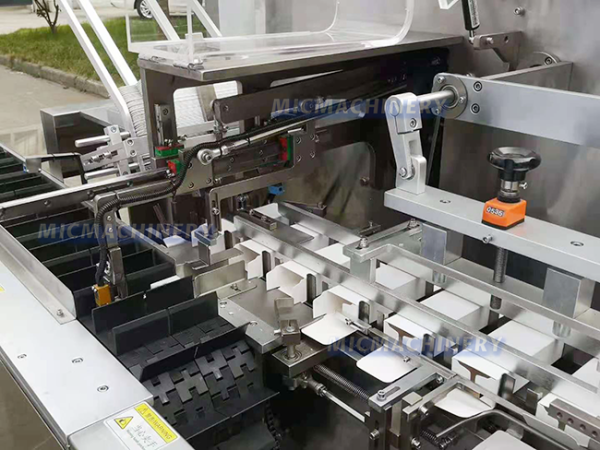

box opening

When the sensor senses that there is a tube coming in, it will send a signal to the automatic opening of the box through the internal system. The servo motor drives the efficient opening of the box. This process will automatically display the packaging speed and packaging situation, to ensure that one tube one box, no waste of materials, the packaging effect is very good.

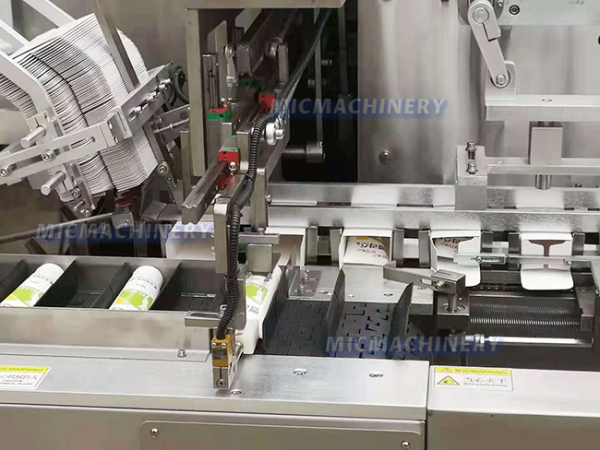

Push tube system

The conveyor belt sends the products to the packing station one by one. When the products arrive, the box will be opened and the machine will automatically push the products into the box accurately.
    When there is no product or product supply is not in place, the machine will sit idle without pushing the product. It will run automatically when the product is returned to supply.
