How a Chile Cosmetics Lab Upgraded Its Labeling Machine Line
April 15, 2021—Lampa, Santiago, Chile
The first machine of the day on Line 7 was a 250 ml PET bottle of body lotion. It came off the capping machine at 80 bottles per minute, traveled down the conveyor, and then hit a wall of plastic crates, waiting for three operators to label it by hand.
That morning, the plant manager of a GMP-certified cosmetics contract manufacturer signed off on a USD $20,000 purchase order. The order was for two automatic labeling machines. They would ship by ocean from Shanghai to San Antonio Port.
Eight weeks later, Line 7's labeling station ran unattended. The speed was three times faster. The rejection rate improved so much that their quality team could finally stop apologizing for it.
This is the full story, from contract signing to the 6-month follow-up.
Project Overview
|
Item |
Details |
|
Customer |
GMP ISO 22716 certified cosmetics contract manufacturer (maquiladora) — name withheld |
|
Factory Location |
Lampa, Santiago Metropolitan Region, Chile |
|
Plant Scale |
30+ filling and packaging lines serving 30+ national and international brands; ~50 million units/year |
|
Equipment Supplied |
2 × automatic labeling machines (round bottle wrap-around + dual-purpose round/flat configuration) |
|
Contract Value |
USD 20,000 |
|
Shipment |
By ocean, Shanghai Port → San Antonio Port, Chile |
|
Contract Date |
April 2021 |
|
Labeled Products |
PET/HDPE lotion bottles, shampoo bottles, glass cream jars, sunscreen tubes |
|
Line Position |
Directly downstream of the customer's existing filling machine and capping machine stations |
Customer Demand & Pain Points
Their inquiry email was three sentences long. The problem behind it was much larger.
What they told us: "Old labeling equipment; need two machines for a new high-capacity line."
What we found after reviewing their line layout and samples:
• They faced a nightmare SKU mix. As a maquiladora, they produced for over 30 brands. On one day, they might run 40 different SKUs. This meant label changes every 45 minutes. Each changeover on the old machines required 20 to 30 minutes of mechanical adjustment. And the first 50 bottles after each changeover came out with misaligned labels.
• They used premium labels on premium bottles. Their clients' brands used metallic-finish and transparent film labels. The worn rollers on the old machines bubbled and wrinkled about 1 in 25 labels. On a $30 retail cream, this was unacceptable.
• They faced GMP audit pressure. Lot numbers and expiry dates were applied at a separate manual coding station. This created a traceability gap. Their QA manager described it bluntly: "One misprint and we re-label the whole batch by hand."
• They had a hard budget ceiling. They wanted European-level precision. But they had allocated only USD $20,000 for the entire labeling station. They also needed a supplier comfortable with supporting installation across the Pacific.
If any of this sounds like your plant—new filling machine, faster capping machine, but the labeling station holding everything hostage—keep reading.
Our Custom Solution

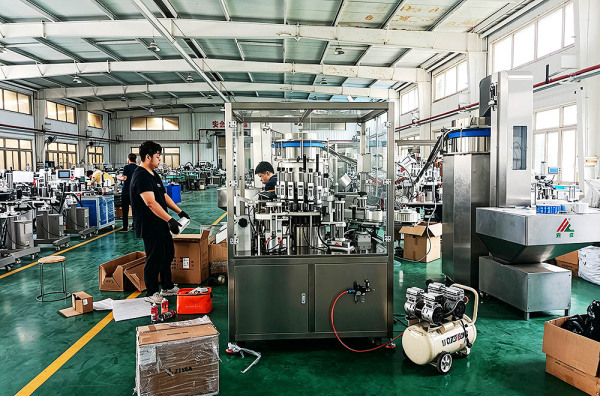

The customer sent us physical samples. They sent two PET bottles, one HDPE bottle, one glass jar, and their actual label rolls. Our engineering team in Changzhou ran three days of testing before finalizing the configuration.
Machine 1 — High-Speed Round Bottle Labeling Machine
• Servo-driven label feeding with ±1 mm placement accuracy
• Touch-screen HMI with 50 recipe slots. Bottle diameter, label length, and sensor position are all stored per SKU

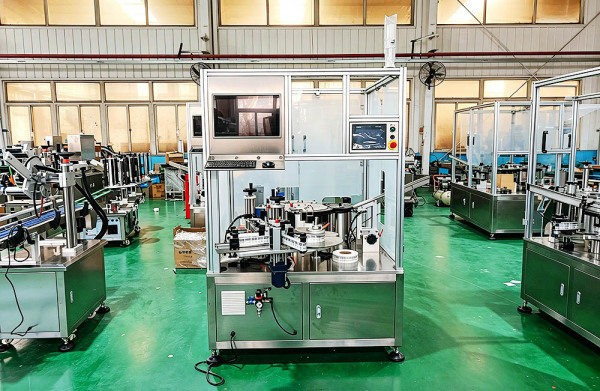

Machine 2 — Dual-Purpose Round & Flat Surface Labeling Machine
• Integrated thermal transfer batch coder for lot numbers and expiry dates—closing the traceability gap
• Synchronized conveyor interface designed to dock with their existing capping machine discharge height (exactly 850 mm—confirmed on their layout drawing)
Integration details that made the difference:
• Bilingual HMI (English/Spanish) with pictogram-based fault codes
• 304 stainless-steel frame with food-grade contact parts for GMP hygiene zones
• Two-year spare parts kit included: label sensors, drive belts, thermal ribbons, guide rails
Anchor references for readers researching similar equipment: our Round Bottle Labeling Machine, Jar Labeling Machine, and Tube Labeling Machine product pages, plus the complete cosmetics filling capping labeling line solution.
On-Site Installation: A 5-Day Timeline
The machines cleared San Antonio Port in early June 2021. They arrived at the Lampa plant on a Monday morning.
Day 1 (Monday)—Unloading, and a surprise
Two crates, one forklift, and a rainstorm. After positioning both machines beside Lines 7 and 9, the engineer measured the discharge conveyor of Line 9's capping machine. It was 845 mm, not the 850 mm on the drawing. A 5 mm shim under the labeling machine's feet solved it in 40 minutes. First lesson recorded: always verify on site, never trust drawings alone.
Day 2 (Tuesday)—Mechanical integration

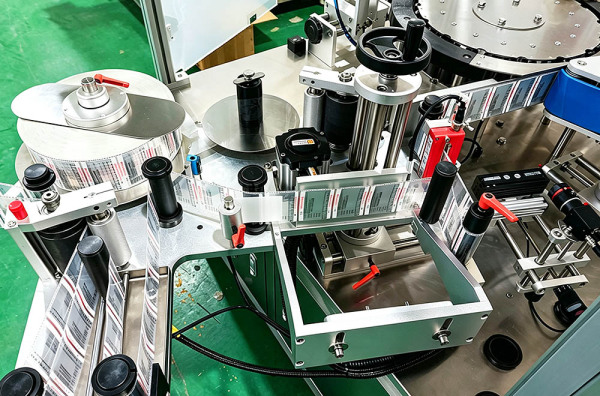

Conveyor alignment, guide rail fabrication for the 250 ml PET bottle, and power connection. The label unwinders were loaded with the customer's actual label rolls, including the tricky metallic-finish film.
Day 3 (Wednesday)—Parameters, and the label that wouldn't stick
Recipes were loaded for the first three SKUs. Then a problem appeared. The transparent film labels on the HDPE shampoo bottle peeled at the wrap seam. The root cause was found by the customer's own senior operator in under an hour. The bottle surface had a light mold-release residue on the first 200 bottles of each production run. A quick wipe-down protocol at line start, plus a 0.3 mm seam overlap adjustment, fixed it. The customer's words: "That wasn't your machine's fault. That was our bottles."
Day 4 (Thursday)—Trial production and operator training
A full shift trial run was conducted: 40 → 80 → 100 bottles per minute, step by step. Operators practiced changeovers against a stopwatch. First attempts took 15 minutes. By end of day, they were under 10 minutes.
Day 5 (Friday) — Handover
Maintenance training was held in the morning. Topics included belt tension, sensor cleaning, and fault code reading. Final acceptance tests were conducted in the afternoon. Both machines were signed over to production.
Days 6–10 — Supervised ramp-up
One issue occurred during this window. A label sensor occasionally missed the gap on a dark metallic label. This was resolved remotely via video call in 4 hours. The fix was a sensitivity threshold adjustment. This was later added to our standard settings guide for all metallic-label applications.
Suggested photos for this section: the labeling machines docked to the capping machine conveyors, the engineer calibrating the label sensor with a stopwatch in hand, and the HMI screen showing the day-4 trial production counts.
Production Effect: 30 Days In
|
Metric |
Old Semi-Automatic Setup |
New Labeling Machine Line (30 days in) |
Notes |
|
Labeling speed |
25–30 bottles/min, manual feed |
70–95 bottles/min sustained; 100 achievable |
Set to match filling machine output |
|
Changeover time |
20–30 min + ~50 mislabeled startup bottles |
8–12 min, near-zero startup waste |
Recipe recall does ~80% of the work |
|
Label placement |
±3–5 mm; wrinkles on film labels |
±1 mm; wrinkles eliminated |
Servo feed + corrected seam overlap |
|
Rejection/rework |
~3–4% of labeled output |
~0.3–0.6% |
Mostly first-200-bottle residue cases, now protocol-controlled |
|
Operators per shift |
3 |
1 (plus float support) |
Two operators redeployed to Line 11 |
|
Batch coding |
Separate manual station |
Integrated, simultaneous |
One process step and one traceability gap removed |
|
Crates between stations |
Permanent stack, every shift |
Zero |
The visual difference visitors notice first |
Customer Feedback
Production Manager (follow-up visit, December 2021):
"The number I care about isn't on your spec sheet. It's that we stopped seeing crates between the capping machine and the labeler. We added two short-run clients this quarter—5,000-unit batches—that we would have rejected last year because the changeover math didn't work."
QA Manager (email, 3 months after installation):
"During our GMP surveillance audit in October, the inspector asked why labeling accuracy looked better on this line than on our newest line from [a European brand]. I didn't know whether to be proud or embarrassed. Our labeling-related deviations dropped from 6–8 per month to one in the last quarter—a sensor misread, caught in minutes by the fault code system."
Senior Operator — Line 9 (during Day 5 training, translated):
"The old machine, I had to fight it. This one—I press the button with the bottle picture, and it remembers everything. My son says my job is boring now. Good. Boring is better."
Get a Quote for a Similar Production Line
Micmachinery's labeling machine range scales with your actual output. No over-buying. No under-powered stations.
|
Your Output Level |
Recommended Configuration |
|
Startup / small batch (500–2,000 bottles/day) |
Semi-automatic round bottle labeling machine—compact, minimal changeover complexity |
|
Medium production (2,000–10,000 bottles/day) |
Single automatic labeling machine with integrated coder, conveyor linked to your filling machine and capping machine |
|
High output / multi-SKU (10,000+ bottles/day) |
Twin-machine configuration (as in this case), or a fully automatic labeling machine integrated into a complete filling–capping–labeling line |
Why buyers choose Micmachinery:
• Recipe-memory HMI—changeovers in minutes, built for contract manufacturers and high-SKU environments
• GMP-ready build—304 stainless steel, hygienic design, integrated batch coding for audit-ready traceability
• ±1 mm servo precision—validated on PET, HDPE, and glass, including metallic and transparent film labels
• Proven remote support—same-day video diagnostics from our Changzhou factory, worldwide spare parts shipping, complete export documentation for South American customs
Send us your bottle drawings, label samples, and target capacity. Our engineers will return a tailored proposal for your labeling machine—typically within 24 hours.
FAQ
1: How do I know which labeling machine fits my bottles?
Send us container photos or drawings, label dimensions, and target speed. Cylindrical bottles need wrap-around labeling. Flat, oval, or square containers need a dual-purpose model. We run tests with your physical samples before shipping. No guessing.
2: Can your labeling machine connect to my existing filling machine and capping machine?
Yes. Our conveyors are height-adjustable. As this case shows, sometimes by ±5 mm. They are speed-synchronized via PLC signals. This integrates with virtually any brand already on your floor.
3: What is the typical delivery time to South America?
Production takes 15 to 25 days depending on customization. Ocean freight from Shanghai to Chile or Peru takes approximately 30 to 40 days. Add 5 to 7 days for customs clearance and inland transport. Plan for 2.5 to 3 months door-to-door.
4: How difficult is the changeover between bottle sizes?
With recipe-memory HMI, stored parameters recall guide rail positions and sensor settings automatically. Trained operators complete changeovers in 8 to 12 minutes. Startup waste drops to near zero.
5: Do the machines meet GMP requirements for cosmetics and pharmaceuticals?
Yes. They feature 304 or 316L stainless steel construction and food-grade contact materials. They include integrated thermal transfer or inkjet coders for batch numbers and expiry dates. This supports GMP ISO 22716 and similar audits.
6: What happens if a part breaks in my country?
Every machine ships with a two-year recommended spare parts kit. Beyond that, we offer DHL or FedEx shipping from China with video-guided installation support. Wear parts such as belts, sensors, and rollers are standard components also commonly available locally.
