Have you ever picked up a tiny glass vial and wondered how medicine gets inside, how the top gets sealed, and how it finally lands on a pharmacy shelf? Most people never see that journey. It starts with raw glass and ends with a labeled, inspected product that is ready to ship. Each stage needs its own equipment, and a vial filling machine is the piece that keeps the whole line connected. This guide walks through the full workflow in plain language.
Manufacture of Empty Vials
A pharmaceutical vial does not start out looking like a vial. It usually begins as a long borosilicate glass tube. That glass resists heat and chemicals, so it can hold sensitive drugs without reacting to them.
The formed vials move into an annealing oven. There they cool slowly. Slow cooling removes stress inside the glass and helps stop cracks later. After cooling, inspections check size, wall thickness, and surface defects.

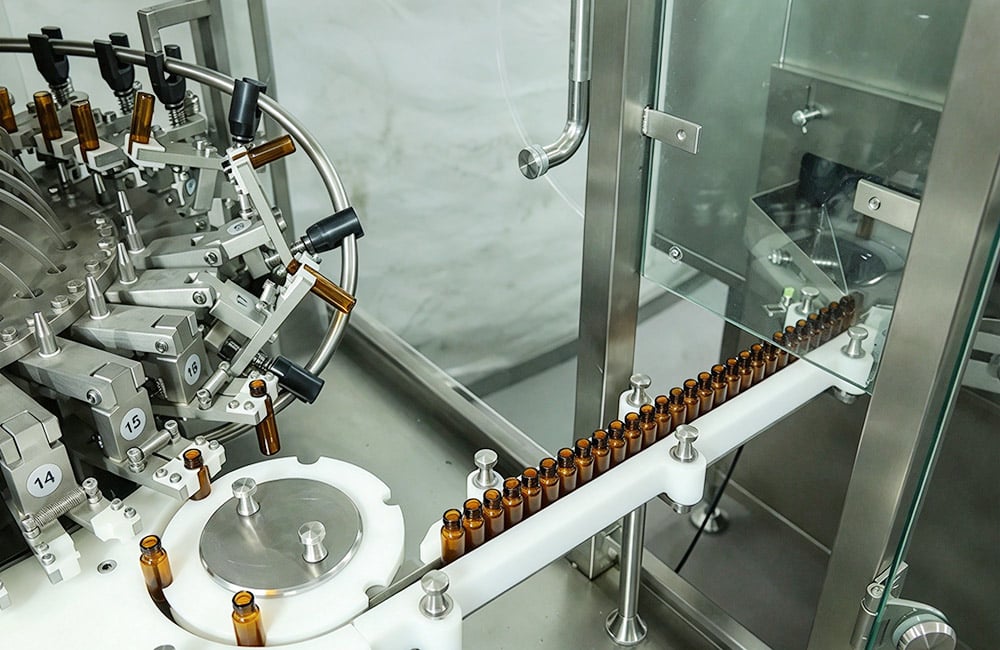

Vial Washing
Before filling, a vial has to be truly clean. One tiny particle can ruin a whole batch of injectable medicine, so this step is not optional. An ultrasonic vial washing machine uses water, compressed air, and ultrasonic vibration to reach the inside corners of each vial.
• Ultrasonic action lifts dust and glass debris
• Purified water and WFI rinse the inside
• Compressed air clears leftover droplets
• Outside surfaces get cleaned too
What happens next depends on this wash. If residue stays behind, every later step inherits the problem.
Sterilization and Depyrogenation
For an injectable container, clean is not enough. The vial also has to be free of microorganisms and pyrogens, which are fever-causing substances from bacteria. A sterilization and drying tunnel handles that job.
• Air at about 300°C or higher destroys pyrogens
• Laminar flow keeps particles away
• A cooling zone brings vials down to filling temperature
Once vials exit, they are sterile and dry. They move straight into a clean zone. No detour, no exposed tray ride.

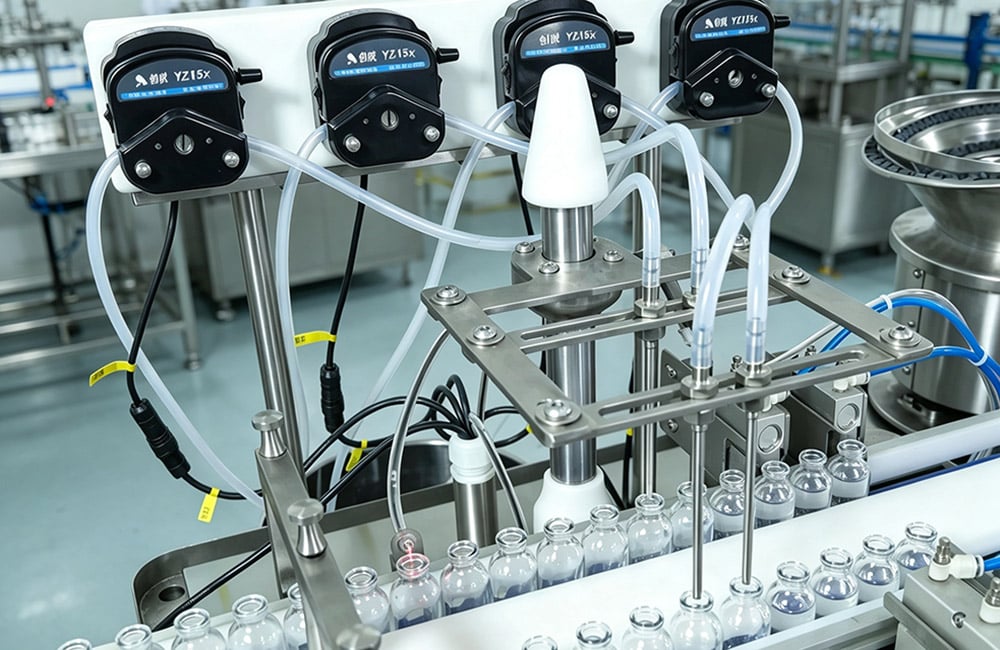

Vial Filling
This is the step most people picture. A vial filling machine measures liquid or powder medicine and puts it into each vial. Dosing accuracy matters more than almost anything else. Too little fill or too much fill can harm patients and raise production costs.
• Peristaltic pumps handle shear-sensitive delicate materials
• Ceramic or stainless steel piston pumps fit most liquids
• Nitrogen purging protects oxygen-sensitive drugs
• In-line weight checks confirm each dose
A good vial filling machine runs in an aseptic space. It often pairs with isolator or RABS systems to keep contamination out. It also keeps output steady, so the rest of the line does not surge and stall.
Stoppering and Freeze-Drying
Once a vial leaves the vial filling machine, rubber stoppering needs to happen right away. Stoppers keep the contents away from outside contamination. The operation continues inside the same clean zone.
• A placement arm presses them onto vial necks
• For freeze-dried drugs, stoppers go in only partway at first
• Vials then enter a lyophilizer to remove moisture
After freeze-drying ends, stoppers are fully pressed inside the lyophilization chamber. That keeps the dry powder protected until use.

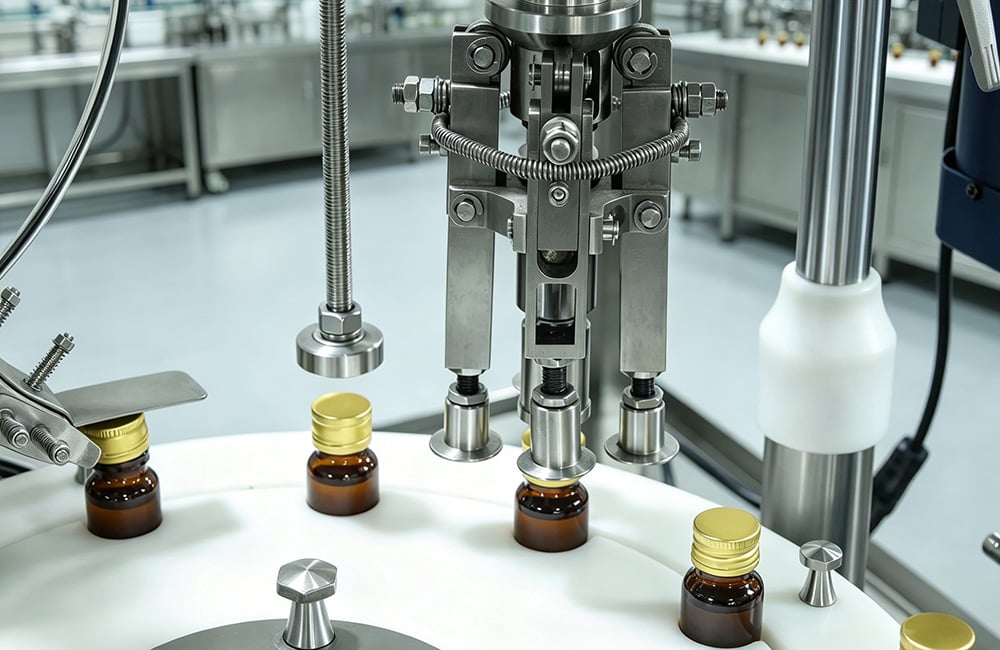

Vial Capping
A rubber stopper alone cannot seal a vial for long-term storage. Aluminum caps are crimped onto vial necks. The cap holds the stopper in place and shows if someone has opened the vial. A capping machine, also called a crimping machine, does this fast and consistently.
• Aluminum caps are sorted and placed onto vial necks
• Rotary rollers crimp the cap edge tightly
• Crimping pressure is adjustable, so fragile glass does not break
• Some models also support flip-off plastic caps
A properly crimped cap keeps the product sterile through storage and transport. This step looks simple, but it protects every earlier step.
In-Line Vial Inspection
After sealing, quality control begins. Each vial is checked for particles, cracks, fill volume deviations, and cap defects. Manual visual inspection is slow, and people get tired. That is why most factories use automatic visual inspection machines.
As vials rotate, high-speed cameras take images from several angles. Software looks for tiny foreign particles floating in liquids. For injectables, that check is not optional.
• Detects particles, glass cracks, and scratches
• Checks fill level and stopper position
• Rejects defective vials automatically
• Stores inspection records for regulatory audits

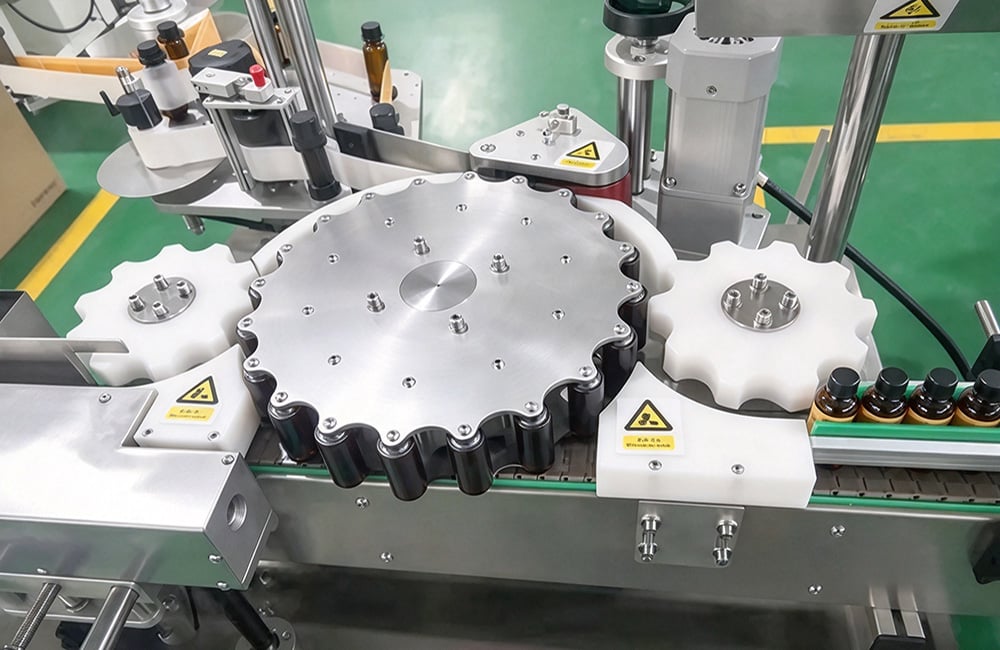

Labeling and Packaging
The final stage turns finished vials into products that can go to market. A labeling machine applies self-adhesive labels with the drug name, dosage, batch number, and expiry date. Label information has to be correct. A wrong label can create a serious safety hazard.
• Labels go on flat, with no wrinkles
• Print and barcode checks confirm readability
• Cartoning machines pack vials and inserts into cartons
• Serialized codes allow full-lifecycle traceability
After packing, cartons are bundled, palletized, and shipped. Every vial carries clear identification and enough protection for delivery to pharmacies, clinics, and hospitals worldwide.

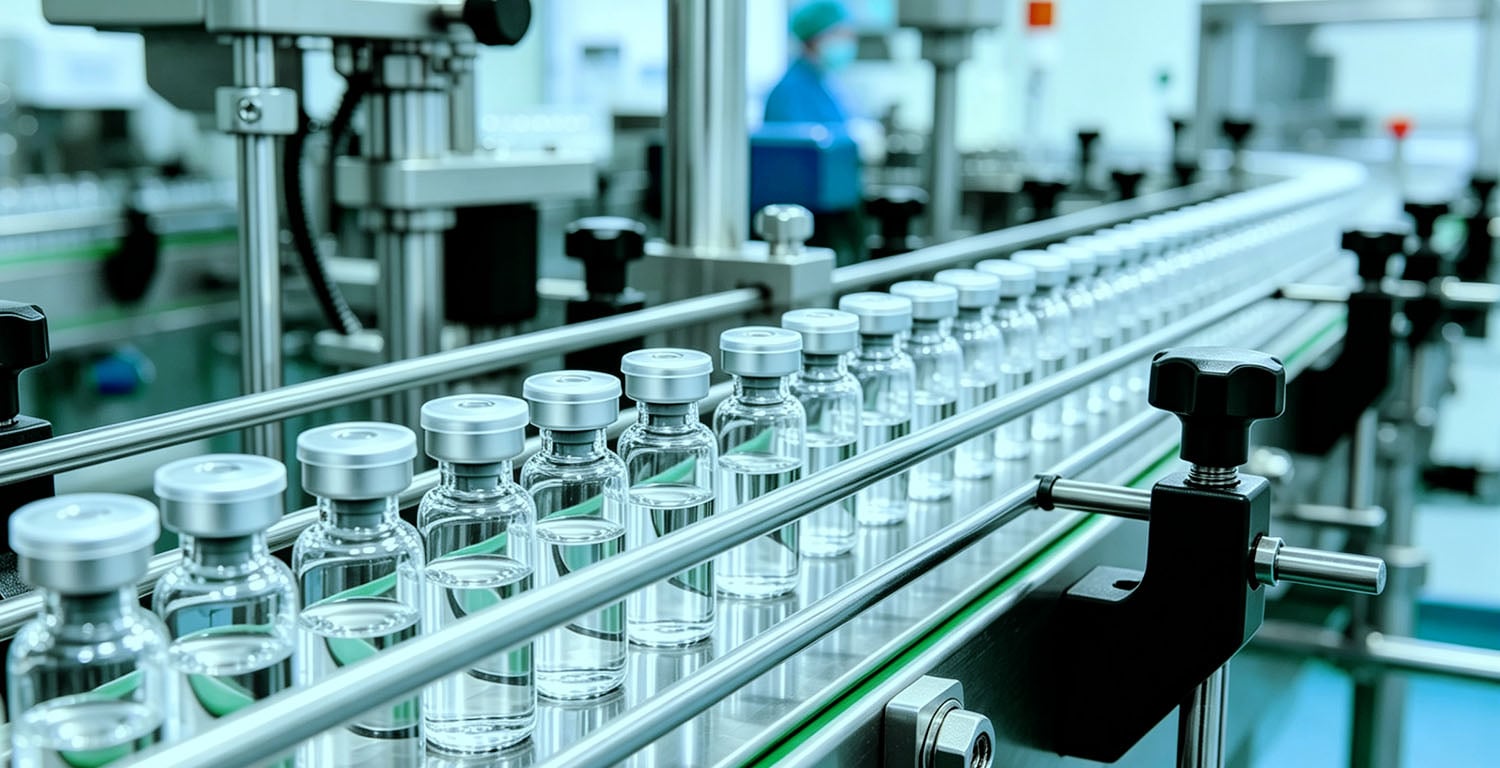

From glass tubes to final cartons, pharmaceutical vial manufacturing and filling depends on linked equipment: forming, washing, sterilization, filling, stoppering, capping, inspection, and labeling. Every machine plays a role, and the vial filling machine directly affects dosing accuracy and product safety. If you are planning or upgrading a production line, choose equipment that matches your product type and throughput targets and can work well with other machines. A well-matched vial filling machine helps the line run safer and more efficiently.
FAQ
What materials are pharmaceutical vials made of?
Most vials are made of borosilicate glass, which resists heat, chemicals, and sudden temperature changes. Plastic vials work for some products, but glass remains the standard for injectables.
Why must vials be washed and sterilized before filling?
Particles, bacteria, and pyrogens can contaminate injectable drugs and harm patients. Washing removes visible and invisible contaminants. Sterilization then makes the vials safe for filling.
What does a vial filling machine do?
A vial filling machine measures liquid or powder materials precisely and dispenses them into individual vials. It runs in a clean environment and keeps dosing consistent from the first vial to the last.
Which pump type works best for vial filling?
It depends on your product. Peristaltic pumps are gentle and easy to clean. Piston pumps give high accuracy for most liquids. Material viscosity and sensitivity guide pump selection.
Why is a capping machine required after stoppering?
The aluminum cap firmly secures the rubber stopper and provides tamper evidence. It keeps the vial sealed during storage, transportation, and handling.
Can a vial filling machine connect to other line machines?
Yes. A vial filling machine can link with washing machines, sterilization tunnels, stoppering units, capping machines, and labeling machines to build a fully automatic production line. That reduces manual handling and contamination risks. A well-integrated vial filling machine also helps the line run smoothly.
