How Does Ketchup Go Through Production and Bottle Filling?
You can picture the last time you squeezed ketchup over a plate of fries. That thick, glossy red sauce started as a truckload of tomatoes. It passed through more than a dozen machines before it reached your table. In this guide, we follow one batch from the receiving dock to the sealed bottle. We explain what each machine does, why it matters, and where the sauce filling machine fits into the line.
The Big Picture: A Tomato's Journey

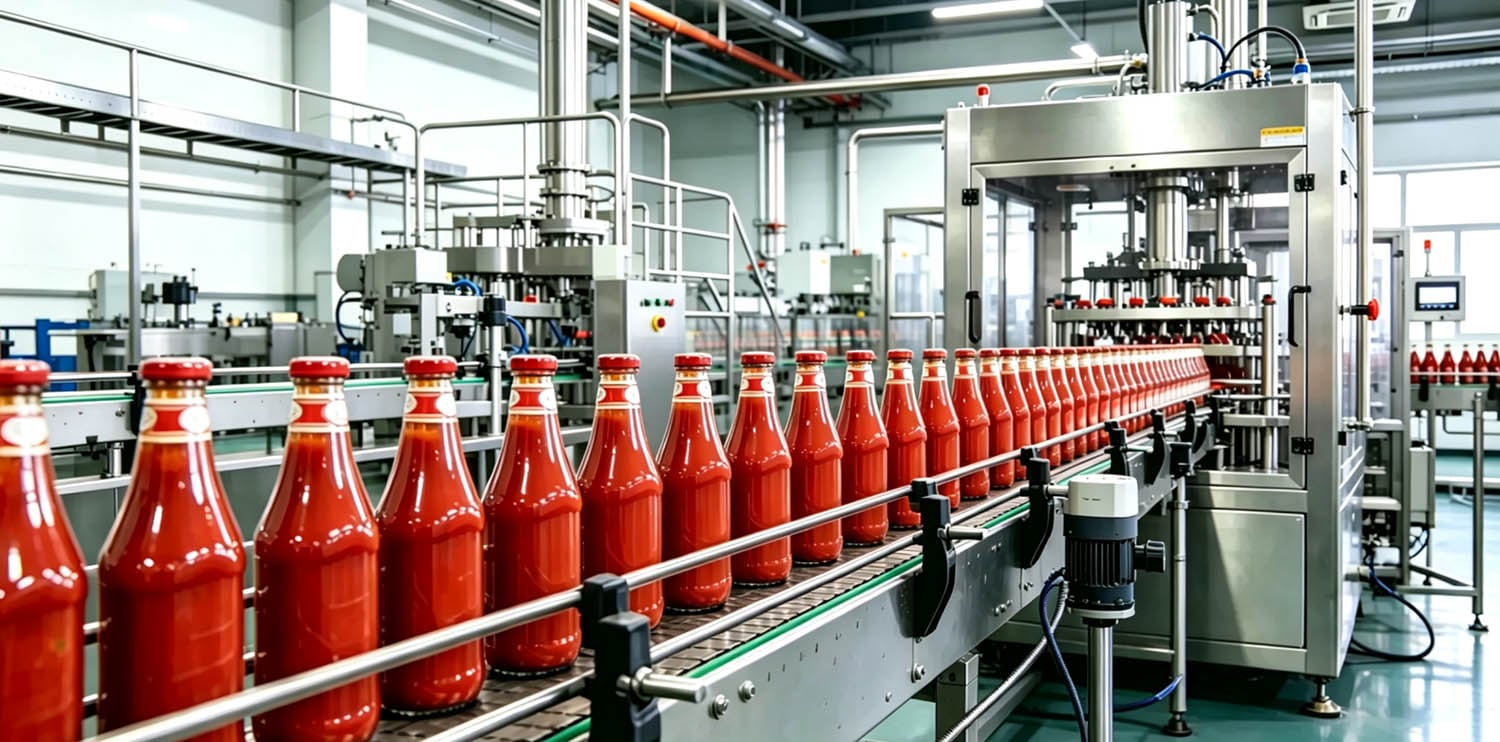

You can think of a ketchup line as a relay race. Each machine passes the product to the next machine, and the baton must never drop. The line has three stages. They are tomato processing, sauce preparation, and filling and packaging.
There are two common starting points. Plants near tomato farms start with fresh fruit and run the full line. Many other factories buy tomato paste in large aseptic drums and begin at the mixing stage. This choice saves a lot of equipment and floor space.
Whichever route you take, you should decide your daily output first. This number sets the size of every machine, from the evaporator to the sauce filling machine. Planning early costs far less than upgrading later.
Receiving, Washing and Sorting

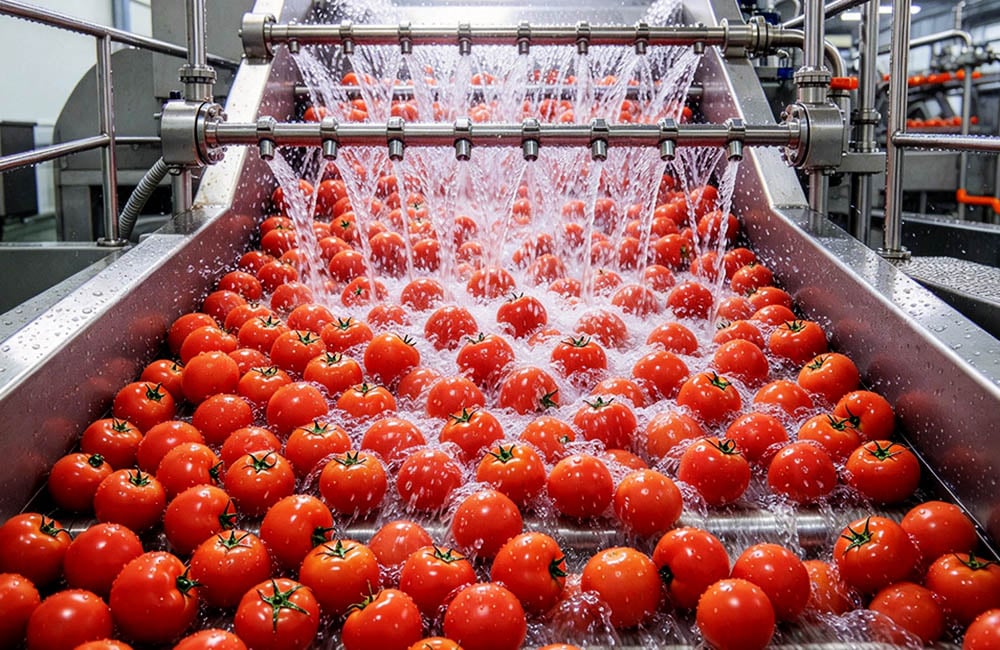

Our journey starts at the intake dock. During harvest, trucks arrive around the clock. Tomatoes need to be processed within a day before they soften. A bucket elevator or water flume lifts the fruit onto the line. A bubble washer scrubs off soil, leaves and field residue with churning water and air. It does not bruise the skin.
Crushing and Hot Break
Now that the tomatoes are clean and sorted, they head to the crusher. A tomato crusher breaks the whole fruit into a rough pulp. Good crushers work gently and keep the seeds intact, because finely ground seeds make ketchup taste bitter. Stainless steel construction keeps the machine durable and easy to wash.
The pulp then drops into a hot break tank. It is heated quickly to around 85–95°C. This heat stops the natural enzymes that would turn the pulp thin and watery, so the ketchup stays thick. A cold break at about 60–65°C keeps more fresh flavor, but the result is thinner. Most ketchup makers choose hot break.
Pulping and Refining
The pulp is hot and soft, so it is time to remove the skins and seeds. A pulper, sometimes called a beater or finisher, spins the pulp against a fine screen. Smooth puree slips through. The waste is pushed out the other end, and it is often sold as animal feed or compost.
Most factories use two stages. A coarse pulper works first, and then a fine refiner works next. The result is a silky puree that pours beautifully. Do you prefer a chunkier, rustic style? Then you simply swap in a larger screen, and you get a different texture from the same machine.
Concentration with a Vacuum Evaporator
Operators check thickness with a refractometer and stop at the target, often 28–30 Brix for tomato paste. You can follow this pro tip: you should never overshoot. Over-concentrated puree tastes cooked and turns dark. Fixing it costs more than you saved.
Formulation and Mixing

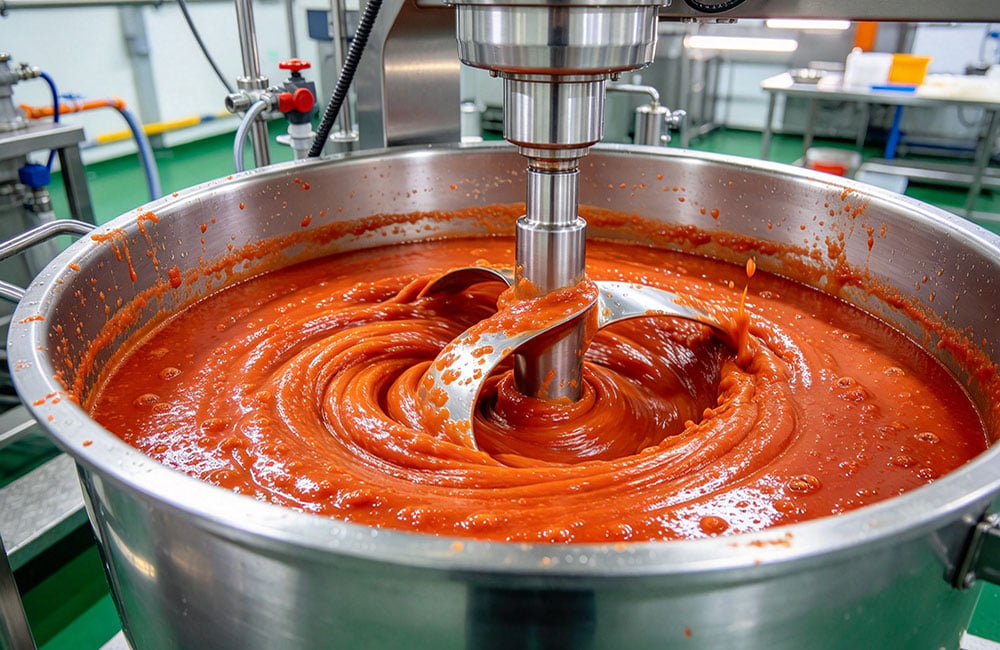

Now the thick concentrate becomes real ketchup. In a jacketed emulsifying mixing tank, sugar, vinegar, salt, spices and sometimes onion or garlic are blended in with the tomato paste and a little water. Gentle heating and stirring dissolve everything evenly. This is where each brand builds its signature taste, so recipes are closely guarded.
Acidity matters here too. Good ketchup usually sits below pH 4, and that acidity is a big reason it keeps so well. Operators test pH and Brix in the tank before the batch moves on. If the numbers are off, it is far easier to adjust now than after the sauce filling machine fills the bottles.
Homogenizing, Deaeration and Sterilization: Getting Ready to Fill
The recipe is done, but the ketchup is not ready to bottle yet. It still needs smoothing, degassing and heat treatment. This stage relies on a few key machines, and it also prepares the sauce for the sauce filling machine:
• Vacuum deaerator: it removes trapped air to prevent dull color, oxidation and foam at the filler
• Tubular sterilizer: it heats the ketchup to roughly 90–105°C for a short time, and it keeps the flavor fresh
• Even, fast heating: it stops the thick sauce from scorching on the pipe walls
• Holding tube: it keeps the sauce at temperature long enough to kill spoilage microbes
• Buffer tank: it stores hot ketchup so the sauce filling machine never runs dry
• Temperature recorder: it logs every batch for food safety checks
• Why stay hot: hot filling also sterilizes the inside of the bottle and cap, and it extends shelf life without heavy preservatives
Bottle Preparation and Filling
While the ketchup waits in the buffer tank, the empty bottles get ready. A bottle unscrambler lines them up on the conveyor. A rinser removes dust and loose particles. For hot filling, you should use glass or heat-resistant PET, because regular plastic can warp at 85–90°C. Clean, sturdy bottles prevent a lot of complaints later, and they also help the sauce filling machine run smoothly.
Capping and Cooling

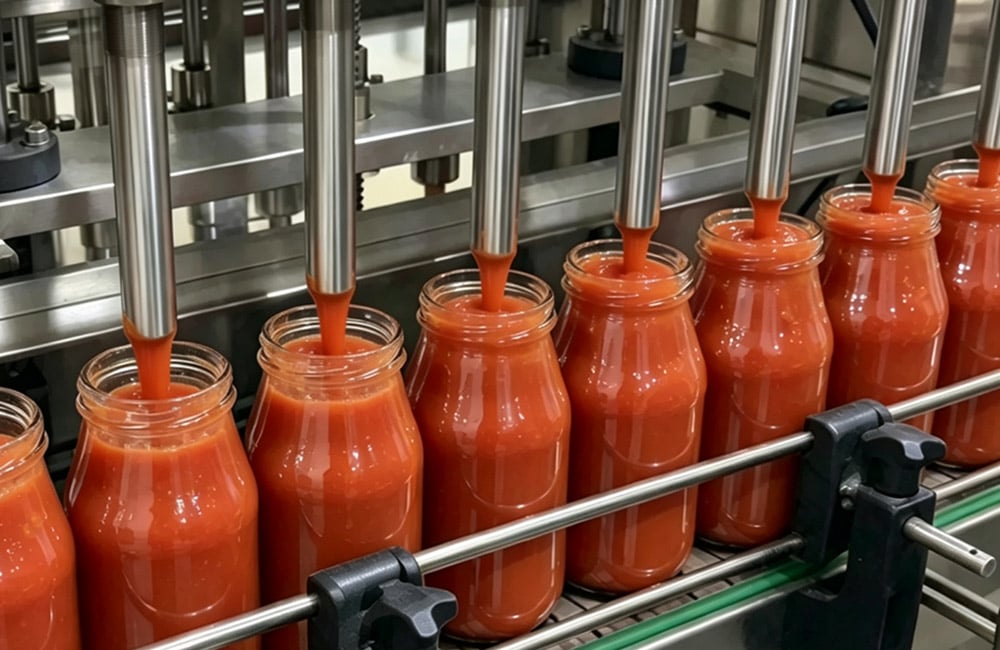

The moment the sauce filling machine fills a bottle, the clock starts ticking. A capping machine screws or presses the cap on while the ketchup is still hot. That tight seal keeps the sauce safe and fresh. Automatic cappers control torque, so bottle number one thousand closes as firmly as bottle number one.
Many plants then tilt or invert the bottles briefly, so the hot ketchup touches the cap and sterilizes it. After that, the bottles travel through a cooling tunnel with water sprays. Gradual cooling protects the color and flavor, since hot ketchup left sitting can keep cooking inside the bottle.
Labeling, Coding, Inspection and Packing
After the sauce filling machine fills them, cool, dry bottles move on to the labeling machine. It applies the brand label neatly and evenly. An inkjet coder then prints the batch number and expiry date. This code is essential for traceability if a customer ever has a question.
Before the bottles leave, an inspection station catches under-filled, crooked or poorly sealed ones. Good bottles go to a carton packer, and it boxes them for shipping. Because this is the last checkpoint, many plants add a metal detector or vision system here for extra peace of mind.
CIP Cleaning and Quality Control
Once the day's run is over, the cleaning begins. Ketchup is sugary and sticky. A CIP (clean-in-place) system pumps hot water and cleaning solution through pipes, tanks and the sauce filling machine without taking anything apart. It saves hours of labor and keeps hygiene consistent.
Quality checks run through the whole line, not just at the end. Staff test Brix, pH, viscosity, color and fill volume at set points. They also check the sauce filling machine for fill accuracy. Catching a small problem early costs almost nothing, while a recalled batch can cost a fortune, so you should make these checks a daily habit.
Your Complete Ketchup Line at a Glance
Now that you have followed the whole journey, here is every machine in order, from receiving dock to finished carton:
• Bubble washing machine: it cleans the raw fruit
• Sorting conveyor: it removes bad tomatoes
• Tomato crusher: it breaks fruit into pulp
• Hot break tank: it stops enzymes and softens the pulp
• Pulper and refiner: they remove skins and seeds
• Vacuum evaporator: it thickens the puree
• Mixing tank: it blends in sugar, vinegar and spices
• Colloid mill or homogenizer: it creates a smooth, stable texture
• Deaerator: it removes air from the sauce
• Tubular sterilizer and holding tank: they heat-treat the ketchup
• Bottle unscrambler and rinser: they prepare empty bottles

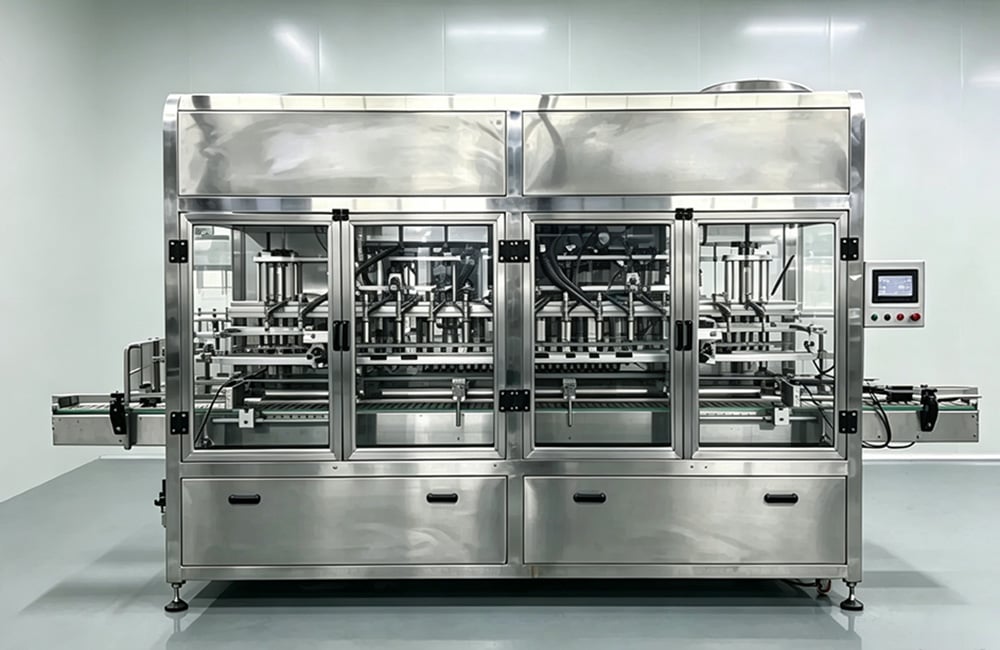

• sauce filling machine: it fills bottles accurately
• Capping machine: it seals every bottle
• Cooling tunnel: it brings bottles down to room temperature
• Labeling and inkjet coding machines: they add labels and batch codes
• Inspection equipment and carton packer: they check quality and box the bottles
• CIP cleaning system: it cleans the whole line without disassembly
From the first wash to the final carton, every step in ketchup production depends on the right machine doing its job. Whether you start with fresh tomatoes or tomato paste, you should match each machine to your output target and keep the line clean. Choose a reliable sauce filling machine, and you will turn out consistent, great-tasting ketchup bottle after bottle. Are you ready to plan your line? Explore our sauce filling machine and talk to our team.
