Pallet Wrapping Machine

The pallet wrapping machine is a highly efficient solution for securing palletized goods with stretch film, offering enhanced stability during storage and transportation. Designed for both ease of use and durability, this machine is a vital asset in packaging operations across various industries.

The stretch wrapper machine is engineered to wrap pallets quickly and securely, using stretch film that tightly conforms to the product, preventing shifting during transit. With customizable settings for tension and speed, the plastic pallet wrapper is ideal for businesses needing a reliable and cost-effective packaging solution.

For businesses looking for automated solutions, the automatic pallet wrapping machine delivers consistent, high-speed wrapping with minimal human intervention. The pallet wrapper for sale comes in a variety of models to fit different production needs, from small-scale applications to high-volume operations. Whether you're looking for a more basic option or a fully automatic pallet wrapping machine, these machines can be integrated into existing production lines to boost efficiency.

A key advantage of the wrapping machine for pallets is its versatility, able to handle different pallet sizes and weights. The automatic pallet wrapper also minimizes manual labor, reducing the risk of packaging errors while improving throughput. For more specialized needs, the pallet packing machine can offer additional features, such as automatic film cutting, sealing, and load detection.

For greater accuracy, the pallet wrapper with scale integrates weighing capabilities, ensuring each pallet's weight is measured during the wrapping process. This is especially useful for shipping or logistics purposes where weight is a critical factor. The stretch wrapper for sale offers competitive pricing while still providing high-quality performance.

The pallet plastic wrap machine is a cost-efficient solution for smaller operations, offering a simple yet effective way to wrap products securely. Meanwhile, the pallet scale and wrapper combines both wrapping and weighing functions in one compact machine, helping businesses streamline their processes.

For industrial use, the industrial pallet wrapper is built to withstand high-frequency use, making it perfect for large-scale packaging operations. The electric pallet wrapping machine is designed to provide energy-efficient and reliable wrapping, reducing operational costs while maintaining high performance.

Lastly, the automatic pallet stretch wrapper is ideal for businesses focused on maximizing efficiency, as it wraps pallets automatically without requiring manual adjustments. This fully automated system is perfect for businesses that need to optimize packaging processes while maintaining high-quality standards.

ZY-2000FZ online wrapping packaging machine structure and function:

1. Human-machine interface control: parameter setting can be completed in the human-machine interface, which is easy to operate and improves safety performance. PLC programmable control, button-type operation panel, simple and clear. Automatic operation, automatic completion of machine setting functions.

2. Frequency converter, slow (soft) start, turntable speed can be adjusted arbitrarily, and items are stable and safe on the pallet.

3. Photoelectric detection function photoelectric switch can automatically track the height of the package

4. Tension adjustment function: users can adjust the tension of the wrapping film at will according to the characteristics of the goods and their own needs to achieve the most perfect and suitable packaging requirements.

5. Local reinforcement function: This function can be realized if the top or bottom of the pallet goods requires multiple layers of reinforcement wrapping

6. Automatic protection function: If the machine encounters some unforeseen faults during operation, the pre-set protection device can play the ultimate safety protection role.

7. Multifunctional packaging method PLC programmable control integrates multiple packaging methods. You can choose standard packaging method, single-layer packaging method or reinforced packaging method according to the needs of the packaging. The number of top and bottom winding layers, times, and reinforcement layers 0-9 can be set directly on the human-machine interface.

8. Automatic reset function: This machine can automatically restore the turntable to its initial state after each use according to user needs, which is convenient for the forklift to enter and exit, and the forklift does not need to move multiple times

9. Simple operation: Just press the automatic operation button to complete the entire packaging process.

10. Automatic manual conversion function: The unique automatic manual conversion function ensures the uninterrupted operation of the equipment, does not affect the normal production under special circumstances, and ensures the normal shipment of the factory.

Control system

PLC programmable control, the number of winding layers and times can be changed

Photoelectric switch automatically senses the height of the goods

Automatic control of film up, film down and film stroking process

Turntable drive

Turntable chain drive, slow start, slow stop, automatic reset

Turntable speed 0~15 rpm frequency conversion speed regulation

Film system

Open-door film rack, more convenient for film threading;

Film rack power frequency conversion pre-stretching mechanism, pre-stretching can reach 250%;

Film rack lifting mechanism double chain traction, walking device closed and self-lubricating;

Film rack rising and falling speeds are frequency-controlled, and film feeding speed is infinitely adjustable;

The number of windings at the top and bottom can be adjusted separately;

Film follow-up system, active film feeding;

Working steps：

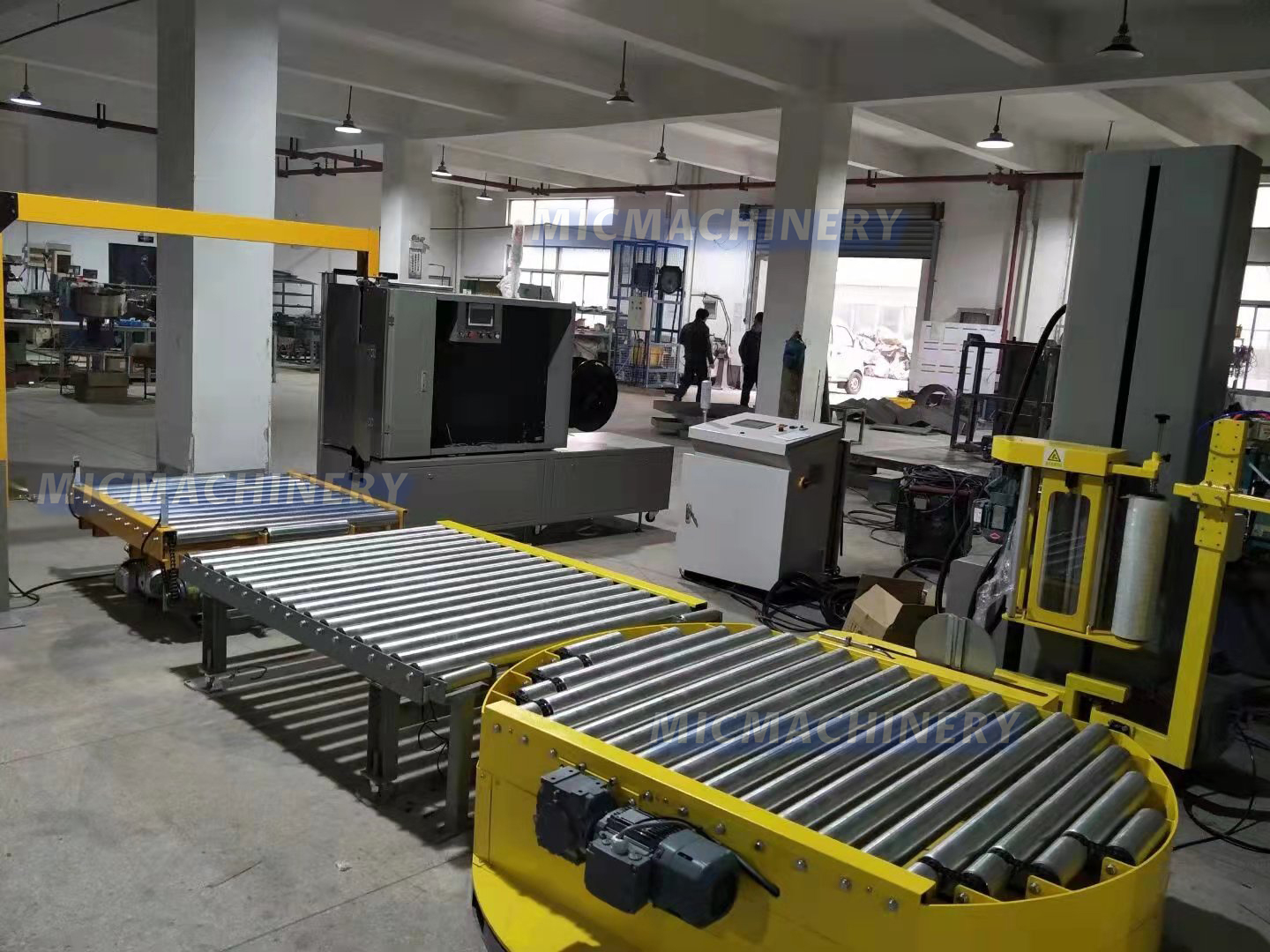

1. After the turntable slows down, the clamping cylinder moves, the plywood stands upright, and the wrapping film wraps the plywood and the pallet together

2. The turntable stops rotating, the swing arm cylinder moves, and after the swing arm cylinder is in place, the magnetic switch sends an electric signal, the clamping cylinder moves, the plywood stands upright, and the wrapping film is clamped, and then the film brushing cylinder moves, and the wrapping film is pressed against the goods through the sponge tube on the swing arm. At the same time, the heating wire is energized to cut the wrapping film.

3. The swing arm returns to its original position, the magnetic switch of the swing arm cylinder sends an electric signal, the film brushing cylinder moves, and the swing arm returns to its original position.

4. The new cargo pallet is sent to the turntable, the turntable rotates, and after winding 2-3 times, plywood 1 and plywood 2 return to their original positions at the same time. Release the wrapping film that has been clamped. Repeat the above actions after the cargo pallet is packed.
