Stretch Wrapper

The stretch wrapper is a highly efficient and versatile machine designed to securely wrap pallets for storage and transportation. It offers superior performance in packaging by applying a tight, durable stretch film around the pallet, ensuring that goods remain stable and protected. This machine is often used in various industries, from food and beverage to manufacturing, for high-speed pallet wrapping.

One of the key benefits of the wrapping machine pallet is its ability to handle large volumes, making it ideal for warehouses or production lines with high output demands. It provides reliable operation and can significantly reduce labor costs. Additionally, the stretch wrapping equipment can be customized to meet the specific needs of different industries, such as load stability and film tension control.

The pallet stretch wrapper features automatic operations, ensuring consistent wrapping quality with minimal human intervention. The automatic pallet stretch wrapping machine can be easily integrated into production lines, streamlining the wrapping process. For businesses looking to enhance efficiency further, an automated stretch wrapper offers advanced features, such as pre-programmed wrapping cycles and automatic film cutting and sealing.

For those seeking an affordable solution, the pallet wrapping machine for sale provides excellent value. Available in a range of models, the pallet stretch wrap machine offers high flexibility, with options for adjusting wrapping tension and speed. If you're concerned about the pallet wrapping machine price, there are various models available to fit different budgets.

For precise wrapping with additional features, the pallet wrapping machine with scale ensures that the weight of the wrapped pallet is automatically measured, helping maintain product integrity. When considering cost-effective solutions, the pallet stretch wrapping machine price varies depending on the features, such as the machine's capacity and automatic functionalities.

The pallet stretch machine can be equipped with different options, including an electric pallet wrapper for smoother operation. If you're looking for a fully automatic pallet wrapper, this machine offers hands-free operation and is perfect for high-volume industries. The pallet packaging machine plays a crucial role in improving packaging efficiency, reducing packaging time, and ensuring the secure transport of goods.

With various configurations and competitive pricing, investing in a pallet stretch wrapping machine helps ensure that goods are securely wrapped, improving both storage efficiency and shipment protection.

Product Introduction：

The working principle of the winding machine is to place the object to be wound in the center of the turntable, start the turntable motor to rotate, and naturally drive the turntable to rotate, so that the object placed in the center of the turntable can be wrapped with a film on the outside. At the same time, the elevator motor is also started, driving the entire assembly of the winding machine mold frame to move up and down to achieve the winding of the object in the height direction, which realizes the wrapping packaging of the entire surface of the object. In the winding process, the main thing is to adjust the tension of the film and wear the film. Generally, the film tension can be achieved by adjusting the turntable speed and adjusting the motor speed. As long as you know that the turntable speed is greater than the film feeding speed, the film will be tighter, and vice versa, the looser it will be. It is not difficult to operate if you master this principle.

It is widely used in the containerization cost of foreign trade exports, food and beverages, plastic chemicals, glass ceramics, electromechanical castings and other products to improve production efficiency, prevent damage to goods during transportation, and play a role in dust, moisture and cleaning.

Main performance:

1.PLC programmable control, winding program optional, various parameters adjustable

2.Photoelectric switch automatically senses cargo height

3. Eye-catching flashing safety warning light and emergency stop switch

4.Pre-stretching automatic film feeding mechanism.

5.Cantilever slow start, slow stop, automatic reset.

6. The number of windings at the top and bottom is controlled separately.

7. Automatic and manual switching is available, and almost no daily maintenance is required.

8. The wires and electrical devices of the whole machine are all from well-known domestic and foreign manufacturers, and only manufacturers that have passed the CE safety certification are qualified to supply our company, without any safety hazards.

9. The whole machine adopts a multi-functional human-machine interface touch display system and PLC control. The large display screen can display the operation status of the equipment in real time; the powerful fault detection system can display fault information in real time and guide maintenance personnel on how to troubleshoot.

Cantilever system：

1. Cantilever variable frequency speed regulation 18 laps/minute.

2. Cantilever automatic reset.

3. Cantilever safe touch automatic shutdown.

4. Cantilever quick loading and unloading method.

5. Cantilever foldable, easy to transport.

6. Cantilever integral slewing support structure

Film rack system：

1. Film rack power pre-stretching mechanism, pre-stretching can reach 200% or 250%, reducing film consumption.

2. The rising and falling speeds of the film rack are adjustable.

3. The film feeding speed is adjustable; controlled by a separate variable frequency AC motor.

4. The top and bottom winding numbers are controlled separately.

5. The film system has a follow-up mechanism, which can be pulled with one pull.

6. The film rack is a carbon steel film rack, which is light and stable.

7. Wear-resistant rubber rollers are selected for long service life.

8. Automatic film cutting system, automatic film clamping, film cutting and film hotting in one go.

9. The film rack system is a new patented open-door film rack, which saves consumables and reduces costs compared to ordinary film racks;

10. The film rack has higher safety performance. The overall lifting of the film rack adopts a wheeled type, with 8 built-in nylon rollers to guide the sliding, which increases safety. At the same time, the service life is more than 5 times longer than that of ordinary nylon U-shaped card type; this design has obtained a national utility model patent;

11. The ends of the film rack rising and falling are both protected by double limit protection to prevent major damage to the machine body itself when errors occur in the program.

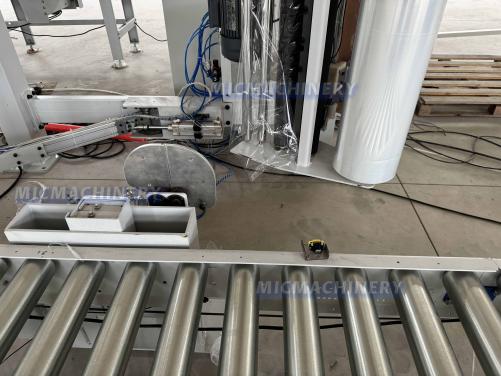

Film cutting system：

1. The film is cut with heating wire.

2. After the film is cut, the tail of the film is fused by heat sealing, leaving no tail.

3. Before the film is cut, the film clamping mechanism pulls the wrapping film down about 200mm to make the film point more solid and more beautiful.

4. Blowing device: When the packaging starts, the tail clamped by the film clamping mechanism will be released. At this time, the blowing device starts, and the film tail can be blown up, and the tail is wrapped with the wrapping film that is rotating and packaging, leaving no tail film.

5. When the wrapping film is broken or there is no film in the middle of the packaging process, it will automatically stop and alarm.

6. The lifting mechanism is controlled by a worm gear reduction motor and a frequency converter. The lifting frame is fixed on the inner side of the two columns. The guide sliding device adopts a linear guide type, which is stable, self-lubricating and noiseless. The translation mechanism adopts upper and lower tube guidance, which is made of high-strength wear-resistant nylon roller skates, durable and easy to install.

7. The conductive slip ring cover on the top of the rocker machine is added to prevent dust particles from entering, which greatly improves the working environment of the conductive slip ring and extends the service life of the conductive slip ring.

8. The reinforced conductive slip ring shaft and tapered roller bearing components enhance the safety of the entire rocker arm machine

9. The rocker arm column is made of the optimal 150*150*6T square tube, taking into account the anti-deformation ability and deadweight.

Quick installation：

1. The four-column legs are divided in the middle and fixed with hinges. When installing, just lift the top frame with a forklift and then lock it with a connecting plate;

2. The rocker arm frame is foldable. For disassembly and assembly, just loosen the mounting nut and fold the rocker arm column to fix it.

Online signal docking：

1. After the wrapping machine is ready (the wrapping machine is in place), the wrapping machine outputs the passive signal of the wrapping machine ready to the conveying system. We reserve the wiring terminal of this signal for easy wiring. At this time, the conveying system can convey the goods directly below the wrapping machine.

2. After the goods are conveyed to the bottom of the machine, the conveying system sends a passive start wrapping machine signal. The wrapping machine will immediately start the wrapping machine to start packaging after receiving this signal. We will reserve the wiring terminal of this signal for easy wiring.

3. After the wrapping machine is finished, it will output a passive signal of winding completion to the conveying system. We will reserve the wiring terminals of this signal for easy wiring. At this time, the conveying system can transport the goods out.

4. After the conveying system transports the goods to the next conveyor, it will send a passive signal of arrival to the wrapping machine. After receiving this signal, the wrapping machine will disconnect the signal of winding completion and prepare the signal for the wrapping machine again. This cycle will repeat. We will reserve the wiring terminals of this signal for easy wiring.
