Machine Introduction:

1. Fast machine adjustment: The conversion of bottle products is fast, and there is a formula saving function. After saving parameters, one button can complete machine adjustment, saving time, which is very convenient and practical.

2. Suitable for a wide range of bottle types: as long as various special-shaped bottles can stand on the line without falling down and the bottle mouth is vertically upward, they are also suitable without special adjustment. The bottles can be freely placed and transported, greatly reducing the labor intensity of workers.

3. Wide range of products: suitable for cream and oil products in the cosmetics and food industries, such as shampoo, laundry detergent, hand sanitizer, shower gel, hair conditioner, yogurt, essential oils, food/industrial oils, etc.

4. High efficiency: fast filling speed, good stability, servo motor control for filling, high filling accuracy.

Introduction to Sauce Filling and Bottling Machines

In the fast-paced food production industry, sauce filling machines and sauce bottling machines are essential for efficient, high-quality packaging. These machines are designed to handle various sauces, including tomato sauce, hot sauce, and mustard, ensuring precise filling and faster production. The growing demand for automatic sauce filling machines allows for higher efficiency, reducing human error and improving accuracy.

Sauce Bottling Equipment: Streamlining Production

Sauce bottling equipment automates the entire process from filling to sealing, handling sauces of varying viscosities with precision. These machines minimize waste and guarantee consistent product quality, essential for large-scale production. They are highly versatile, making them suitable for different types of sauces and packaging speeds.


Automatic Sauce Filling Machines: Enhanced Efficiency

The automatic sauce filling machine offers a significant advantage in speed and accuracy. These systems are designed to fill bottles quickly, reducing labor costs and boosting productivity. Their automated nature ensures a consistent fill volume, making them ideal for large production lines.

Tomato Sauce Filling Machines: Specialized Solutions

Tomato sauce filling machines are specially designed to handle the unique consistency of tomato-based sauces. With adjustable pumps and nozzles, these machines fill bottles without spills or clogs, maintaining product integrity throughout the process.

Conclusion

In conclusion, sauce filling machines and sauce bottling machines are vital to the food industry, improving efficiency and consistency. Whether filling tomato sauce or other condiments, automatic sauce filling machines provide the precision and speed needed to meet high-demand production needs.

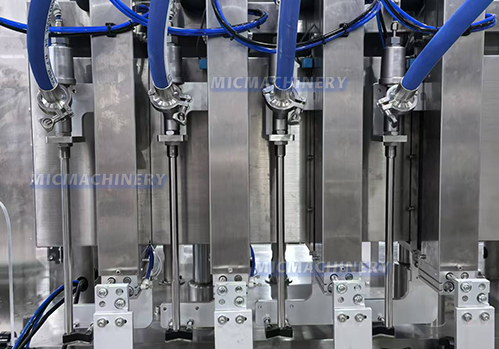

Fast and accurate filling

Automatic Tracking Technology: The machine uses sensors or cameras to track the position of containers, adjusting the filling head accordingly for perfect placement.

Adjustable Filling Heads: These machines are equipped with multiple adjustable heads, allowing them to fill different bottle sizes and types without requiring extensive downtime or manual recalibration.

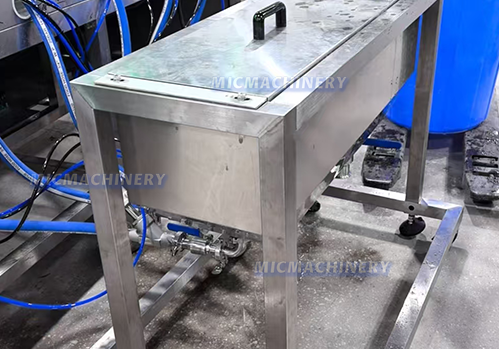

Keep material tank hopper


This machine keep material tank, tank all made from stainless steel and machine tank connect liquid level detector, can check the liquid level in the tank automatically.


If you want to know more models of filling machine, you can refer to the table below:


Model

MIC V01

MIC-ZF4

MIC-ZF6

MIC-ZF8

MIC-ZF12

MIC-ZF16

MIC-ZF20

Application

High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On

Packing Type

Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc

Speed

(basis on 50-500ml)

1500 B/h

2000B/h

2500B/h

3000 B/h

4000B/h

5000 B /h

6000 B/h

Filling Arrange

10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)

Power

30W

3.5Kw

3.6kw

3.7kw

3.8kw

3.9Kw

4.0Kw

Size

1000*480*700

mm

1400*1450*2270

mm

1400*1450*2270

mm

1700*1450*2270

mm

2000*1450*2270

mm

2300*1450*2270

mm

2600 *1450*2270

mm

Weight

35 Kg

500kg

600kg

700kg

800Kg

900 kg

1000 kg


  In addition to,If you're looking for sauce filling machine,tomato sauce filling machine,chili sauce filling machine,hot sauce filling machine,mayonnaise filling machine,tomato paste filling machine,hot sauce bottle filling machine,sauce bottle filling machine,automatic sauce filling machine,sauce filling machine price,it is a pleasure for you to visit our website anytime.


    In short, we will try our best to provide you with satisfactory service,the following is our customer feedback:s ←

Filling Nozzle

6 Nozzles

Filling Volume

500ml-5000ml

Speed

3000-3600 BPH (Base on 1L), 1200-1800 BPH (Base on 5L)

Voltage

220V/380V

Power

8KW

Suitable Bottle Diameter

Can customize

Filling Error

≤±1%

Work Pressure

0.56Mpa-0.8Mpa

Air Consumption
6~7m³/min
Size
4000*1200*1700mm

Weight

300kg


Parts Brand

Touch Screen

Xinjie/COTRUST/INOVANCE

PLC Programmable

Xinjie/COTRUST/INOVANCE

Solenoid Valve

AirTac

Pneumatic Components

AirTac

Photoelectric Systems

LEUZE

Gas Processing

Taiwan AirTac

Button and other low-voltage electrical

Schneider

Alarm

Real time fault alarm, important

failure can stop automatically

Servo Motor

Xinjie/COTRUST/INOVANCE
