This cosmetic filling machine is mainly used for Plastic & Laminated tube filling and sealing.
It has been widely used in the fields of Pharmacy, cosmetic, food and chemical etc.
The function of cosmetic filling machine :
1. Automatic tube loading
2. Automatic benchmarking (Cursor positioning)
3. Automatic tube filling sealing & No tube no filling
4. Automatic heating sealing (Inner & Outer heating)
5. Material hopper can heating and stirring
6. Automatic printing the batch dates code
7. Automatic cut the over part after sealing then output finish product
8. Can update with European accessories like Siemens, Omron and Schneider etc.
This machine is suitable for filling, sealing, printing and cutting of plastic tubes of various specifications. The shape of the sealing tail is beautiful and neat, the sealing is firm, the measuring accuracy is high, and the stability is good. According to customer material viscosity could be heating and stirring hopper and diving filling system.

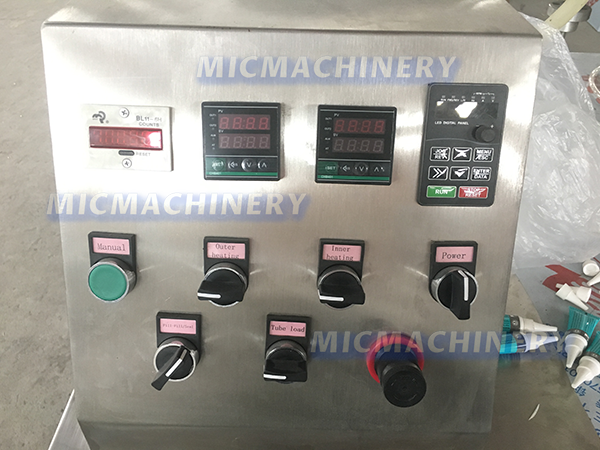

The control panel
The control panel on the filling machine is the core of the machine, the function is clear, the operation is simple, as long as adjust the corresponding button, the internal program will control the machine to run smoothly

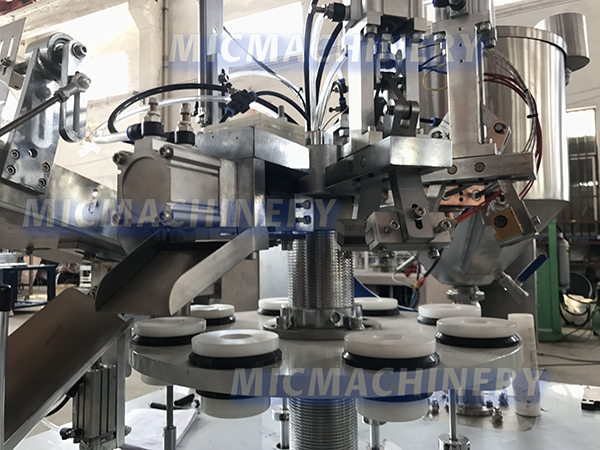

The main platform
Pictures include turntables, filling heads, sensors, heating heads, cutting and date printing stations. Its function is clear and easy to clean.
Main workflow: automatic on-line through pipeline. When the pipe comes, the sensor automatically recognizes it, sends a signal to the gas station, and begins refueling. After filling, the end of the pipe is heated, flattened, cut, date printed, and finally the pipe is topped.
We can customize this turntable, filling head, etc
Sensor and Sensor rod
Main role is to sense the tube, and automatically turn the tube to ensure the standard.
Workflow: When the tube enters the machine bench, the sensor is automatic, adjusts the position of the pipe, and sends a signal to the next filling station. The internal program controls automatic filling
If you want to know more models of filling machine, you can refer to the table below:
|
Model |
L30 |
L30I |
L45 |
L45I |
L60 |
L60I |
R30 |
R30I |
R45 |
R60 |
|
Application |
Pharmacy, cosmetic, food and chemical ,super glue, glue 502. etc. |
|||||||||
|
Packing Type |
Soft tube,aluminum tube,plastic tube. Etc |
|||||||||
|
Speed |
10-50 t/m |
25-45 t/m |
30-75 t/m |
40-45 t/m |
50-60 t/m |
50-60 t/m |
20-30 t/m |
20-30 t/m |
30-35 t/m |
30-65 t/m |
|
Filling Arrange |
1-300ml,2-300ml,3-20ml,5-75ml, 15-75ml, 75-250ml,5-75ml/75-150ml /150-300ml |
|||||||||
|
Power |
1.1Kw |
1.1kw |
2.2Kw |
2.2Kw |
2.2Kw |
2.2Kw |
1.1kw |
1.1Kw |
4KW |
5.5Kw |
|
Size |
1130*750*1680 mm |
1500*700*1800 mm |
1950*800*1850 mm |
1950*800*1850 mm |
1900*1400*2000 mm |
1900*1400*2000 mm |
1230*700*1400 mm
|
1230*700*1400 mm |
1450*1050*1750 mm |
1850*950*1980 mm |
|
Weight |
250Kg |
300Kg |
850Kg |
800 Kg |
850Kg |
1200 Kg |
250Kg |
250Kg |
475Kg |
850Kg |
In addition to,we have cosmetic filling machine,cosmetic cream filling machine,cosmetic liquid filling machine,cosmetic jar filling machine,cosmetic bottle filling machine,cosmetic packaging machine,cosmetic tube filling machine,manual cosmetic cream filling machine,small cosmetic cream filling machine,manual filling machine for cosmetics,cream jar filling machine.
If you are more than interested in the machine ,you can contact us at market@micmachinery.com
In short,we will try our best to provide you with satisfactory service,the following is our client feedback
