  • FEATURES
  • PARAMETER
  • CONFIGURATION


This machine is suitable for filling a liquid and cream products, especially for high viscosity materials, the effect is obvious.

Meet food health standard, could filling tomato sauce , chili sauce , mayonnaise and so on.

1. Adopt PLC programmable control system with touch screen interface.

2. Automatic bottle feeding, automatic filling, automatic bottle.

3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.

4. Adopt double-ball screw rod filling the filling nozzle dive

5. It can be used with capping machine, labeling machine supporting the formation of the production line

6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7. Having a stable and reliable operation, high production efficiency, strong adaptability.

Introduction:

In the dynamic realm of food processing and packaging, the demand for precision and efficiency has given rise to specialized equipment, and among these, the hummus filling machine, hummus packaging machine, and hummus bottling machine emerge as key players in the packaging of diverse liquid and semi-liquid products. With a focus on advanced product characteristics, versatile applications, and intricate mechanical principles, these machines redefine the art of filling sauce, hummus, and honey into bottles, meeting the rigorous standards of the food industry.

Product Characteristics:

The hummus filling machine, designed with precision in mind, boasts advanced characteristics that elevate the packaging process. These machines are equipped with high-speed filling capabilities, ensuring swift and accurate dispensing of diverse products such as sauces, hummus, and honey. The adaptability to various container sizes and materials is a standout feature, allowing for the seamless packaging of different products. Moreover, user-friendly interfaces and customizable settings enhance operational efficiency, providing flexibility for producers to cater to varying packaging needs. Robust construction and adherence to hygiene standards underscore the product characteristics, ensuring durability and compliance with stringent food safety regulations.

Product Application:

The applications of hummus filling machines, hummus packaging machines, and hummus bottling machines extend beyond the singular focus on hummus. These versatile machines are pivotal in the efficient packaging of a spectrum of liquid and semi-liquid products, including sauces, hummus, and honey. From small-scale producers to large-scale manufacturers, these machines offer scalability to meet diverse production requirements. Their adaptability makes them indispensable in the food industry, facilitating the precise and hygienic packaging of a variety of products destined for retail shelves.

Mechanical Principle:

The mechanical principles embedded in hummus filling machines are designed to accommodate the unique characteristics of sauces, hummus, and honey. These machines often employ advanced volumetric or piston filling systems, ensuring precise measurement and dispensing of the products into bottles. Auger fillers may be utilized for thicker consistencies, maintaining accuracy in the packaging process. Automated sensors and controls play a pivotal role in monitoring and regulating the filling process, preventing overfilling or spillage. The mechanical design prioritizes not only speed and accuracy but also the gentle handling of the products, preserving their quality during the filling and bottling stages.

In conclusion, the hummus filling machine, hummus packaging machine, and hummus bottling machine redefine the standards of precision and efficiency in the packaging of sauces, hummus, and honey. With their advanced product characteristics, wide-ranging applications, and intricate mechanical principles, these machines represent the forefront of innovation, ensuring the seamless and hygienic bottling of diverse liquid and semi-liquid products for the discerning needs of the food industry

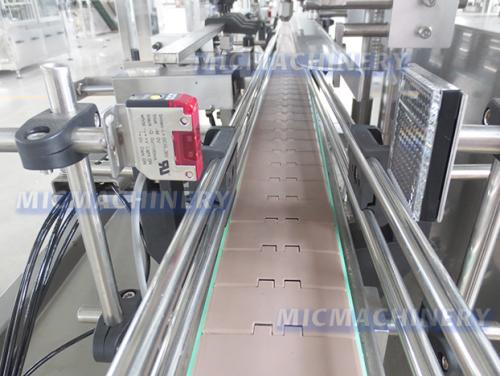

Conveyor belt

    When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time .

    This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved.

    on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap


Measuring cylinder

The function of measuring cylinder cylinder is mainly quantitative filling, its use can make your filling accuracy higher, driven by servo motor, control the movement of the piston rod, the Piston moving down extract the material from the material cylinder to the measuring cylinder cylinder, and then the piston moves up to the dose of the cylinder cylinder in the material to the filling pipeline.

(The size of dose cylinder can be customized according to your needs)

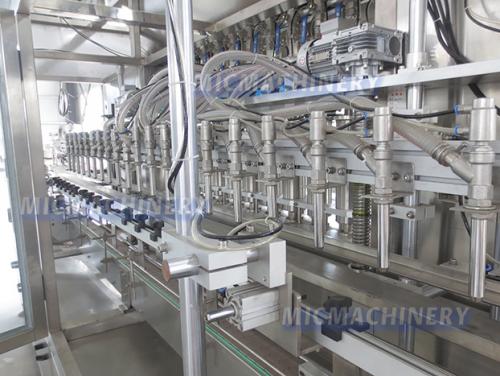

filling head



The hummus is put into the material cylinder, the piston to pump the hummus into the measuring cylinder. Then the piston moves up to send the hummus to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling.After filling, the conveyor belt will automatically send the bottle to the capping station.

(Filling process without drip leakage, the number of filling head can be customized according to your needs)





If you want to know more models of filling machine, you can refer to the table below:


Model

MIC V01

MIC-ZF4

MIC-ZF6

MIC-ZF8

MIC-ZF12

MIC-ZF16

MIC-ZF20

Application

High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On

Packing Type

Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc

Speed

(basis on 50-500ml)

1500 B/h

2000B/h

2500B/h

3000 B/h

4000B/h

5000 B /h

6000 B/h

Filling Arrange

10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)

Power

30W

3.5Kw

3.6kw

3.7kw

3.8kw

3.9Kw

4.0Kw

Size

1000*480*700

mm

1400*1450*2270

mm

1400*1450*2270

mm

1700*1450*2270

mm

2000*1450*2270

mm

2300*1450*2270

mm

2600 *1450*2270

mm

Weight

35 Kg

500kg

600kg

700kg

800Kg

900 kg

1000 kg



In addition to,we have jam filling machine,jam packing machine,jam jar filling machine,jam packaging machine,manual jam filling machine,sauce filling machine,tomato sauce filling machine,hot sauce bottling machine,sauce bottling machine.

If you are more than interested in the machine ,you can contact us at market@micmachinery.com

in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Filling head

20 heads

Filling volume range

200ml-2500ml

Production speed

≤4000 Bph basis on1L bottle

Voltage

220V/380V

Power

3.0Kw

Suitable bottle’s diameter

Ф40mm-Ф100mm

Filling error

≤±3

Work pressure

0.55Mpa-0.65Mpa

Size

2800mm × 1400mm× 2500mm

Weight

1000 kg






Touch screen

Canada xinjie color

PLC

Schneider

Solenoid valve

Taiwan Airtac

Optoelectronic system

OPTEX

Micro differential pressure switch

Netherlands

Servo motor

Taiwan TECO

Air source treatment

Taiwan Airtac

Button and low voltage electric appliance

Schneider

Ball screw

Taiwan

Reducer

Taiwan VGM

Switching power supply

Taiwan meanwell

Material

Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel
