Introduction:
Product Characteristics:
The Bean Oil Filling Machine stands out with exceptional characteristics meticulously engineered for efficiency and accuracy. Crafted from high-quality materials, often stainless steel, it ensures durability while adhering to the stringent hygiene standards for food-grade applications. Featuring automated bottle feeding, precise filling, and capping mechanisms, the machine epitomizes a harmonious blend of speed and accuracy in bean oil production. User-friendly interfaces equipped with programmable controls accommodate various bottle sizes and bean oil viscosities, ensuring each product receives a consistent and precise fill. Anti-drip features and customizable settings preserve the quality of bean oil formulations, delivering products that resonate with both efficiency and the promise of superior taste.
Product Applications:
The applications of the Bean Oil Filling Machine span the entire spectrum of bean oil manufacturing, providing a comprehensive solution for efficient and automated filling. Whether producing standard cooking oils, specialty bean oils, or unique blends, this machine ensures uniformity in dosage and presentation. Its adaptability caters to the dynamic requirements of the food industry, where each bean oil variant requires a tailored approach to dispensing, capping, and preserving its unique flavor profile.
Mechanical Principle:
At its core, the Bean Oil Filling Machine operates on advanced mechanical principles designed for precision, speed, and automation. Utilizing volumetric or gravimetric filling systems, filling nozzles, and capping mechanisms, the machine accurately measures and dispenses the specified quantity of bean oil into individual bottles. Automated capping ensures a secure seal, preserving the freshness and flavor of the oil. Integrated sensors and programmable logic controllers (PLCs) oversee the entire process, ensuring uniformity, minimizing errors, and enhancing the overall efficiency of bean oil filling operations.
In conclusion, the Bean Oil Filling Machine symbolizes manufacturing excellence in the food industry. Its exceptional product characteristics, diverse applications, and advanced mechanical principles make it an indispensable asset for bean oil producers globally. Embracing cutting-edge technology, this machine not only ensures the precision and speed of bean oil filling but also upholds the highest standards of presentation, consistency, and flavor preservation. As a fundamental component in various production workflows, it continues to shape the way bean oil products are filled, ensuring each bottle embodies the essence of automation and the promise of superior taste.

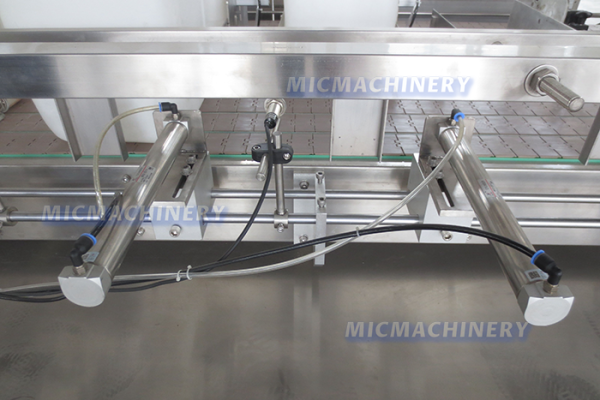

barrel block air cylinder
When the barrel can reach a certain number, there is a special infrared sensor on the barrel track to receive the induction, and then automatically stuck behind the barrel, in front of the barrel after the barrel filling, and then let the behind the barrel to fill the vacancy, so as to achieve no barrel no filling

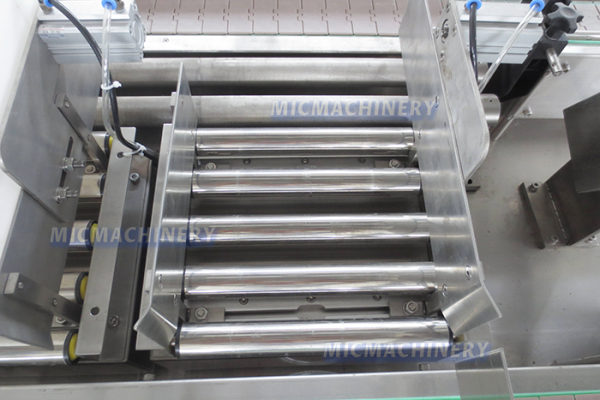

Glide wheel conveyor
This kind of roller track is particularly suitable for the use of large capacity barrels, because large capacity barrels are not convenient to move, time-consuming and laborious, if the machine is equipped with this kind of rolling track can be convenient to move, effectively save manpower.
2.Use fixed flow pipeline to set parameter.
3. Adopt large flow quality to control to reach approaching numerical( the set flow quality,such as set 20L, it will flow large quality to approaching 20L)
4.Then through small flow quality to supplement remain quality, in order to reach set quality filling, promise the filling quality is accuracy, and do not waste the material.
5.Filling volume range can adjust between 5L-25L.
6.This machine meeting GMP standard.
If you want to know more models of filling machine, you can refer to the table below:
Model |
||||||
Application |
pesticides,chemical,cosmetic and other corrosive,High Viscosity Materials, Liquid soap , oil product ,Lotion And So On |
|||||
Packing Type |
Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc |
|||||
Speed (basis on 50-500ml) |
2000B/h |
2500B/h |
3000 B/h |
4000B/h |
5000 B /h |
6000 B/h |
Filling Arrange |
10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l) |
|||||
Power |
3.5Kw |
3.6kw |
3.7kw |
3.8kw |
3.9Kw |
4.0Kw |
Size |
1400*1450*2270 mm |
1400*1450*2270 mm |
1700*1450*2270 mm |
2000*1450*2270 mm
|
2300*1450*2270 mm |
2600 *1450*2270 mm |
Weight |
500kg |
600kg |
700kg |
800Kg |
900 kg |
1000 kg |
In addition to,If you're looking for Barrel Filling Machine,automatic barrel filling machine,it is a pleasure for you to visit our website anytime
In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.
Filling head
4 heads
Filling volume range
5L-25L
Production speed
192-220 b/h (25L for example)
Voltage
380V three-phase four-wire
Power
3.0Kw
Long barrels
180mm-300mm
Wide application barrels
120mm-250mm
Apply high barrel
280mm-450mm
Filling error
≤±3‰
Air consumption
0.6m3/min
Work pressure
0.55Mpa-0.65Mpa
Size
2500mm × 1600mm× 2500mm
Weight
700 kg
Touch screen |
Canada xinjie color |
PLC |
Schneider |
Solenoid valve |
Taiwan Airtac |
Optoelectronic system |
OPTEX |
Micro differential pressure switch |
Netherlands |
Servo motor |
Taiwan TECO |
Air source treatment |
Taiwan Airtac |
Button and low voltage electric appliance |
Schneider |
Ball screw |
Taiwan |
Reducer |
Taiwan VGM |
Switching power supply |
Taiwan meanwell |
Material |
Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel |
