Introduction:
Product Characteristics:
The Vegetable Oil Filling Machine stands out with exceptional characteristics meticulously engineered for efficiency and accuracy. Constructed from high-quality materials, often stainless steel, it ensures durability while adhering to the stringent hygiene standards for food-grade applications. Featuring automated bottle feeding, precise filling, and capping mechanisms, the machine epitomizes a harmonious blend of speed and accuracy in vegetable oil production. User-friendly interfaces with programmable controls accommodate various bottle sizes and vegetable oil viscosities, ensuring each product receives a consistent and precise fill. Anti-drip features and customizable settings preserve the quality of vegetable oil formulations, delivering products that resonate with both efficiency and the promise of superior taste.
Product Applications:
The applications of the Vegetable Oil Filling Machine span the entire spectrum of vegetable oil manufacturing, providing a comprehensive solution for efficient and automated filling. Whether producing standard cooking oils, olive oils, or artisanal blends, this machine ensures uniformity in dosage and presentation. Its adaptability caters to the dynamic requirements of the food industry, where each vegetable oil variant requires a tailored approach to dispensing, capping, and preserving its unique flavor profile.
Mechanical Principle:
At its core, the Vegetable Oil Filling Machine operates on advanced mechanical principles designed for precision, speed, and automation. Utilizing volumetric or gravimetric filling systems, filling nozzles, and capping mechanisms, the machine accurately measures and dispenses the specified quantity of vegetable oil into individual bottles. Automated capping ensures a secure seal, preserving the freshness and flavor of the oil. Integrated sensors and programmable logic controllers (PLCs) oversee the entire process, ensuring uniformity, minimizing errors, and enhancing the overall efficiency of vegetable oil filling operations.
In conclusion, the Vegetable Oil Filling Machine symbolizes manufacturing excellence in the food industry. Its exceptional product characteristics, diverse applications, and advanced mechanical principles make it an indispensable asset for vegetable oil producers globally. Embracing cutting-edge technology, this machine not only ensures the precision and speed of vegetable oil filling but also upholds the highest standards of presentation, consistency, and flavor preservation. As a fundamental component in various production workflows, it continues to shape the way vegetable oil products are filled, ensuring each bottle embodies the essence of automation and the promise of superior taste.

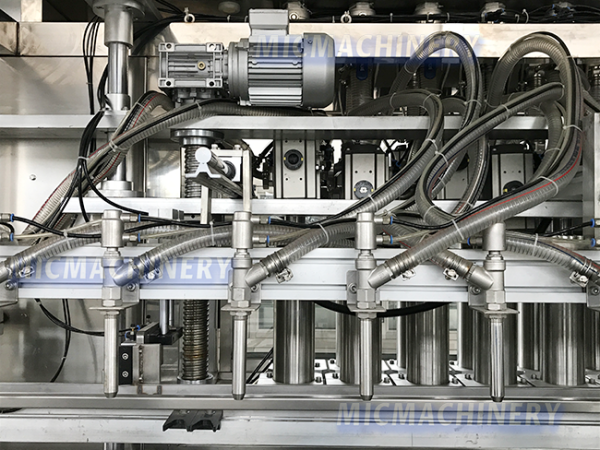

filling head
The Peanut Butter is put into the material cylinder, the piston to pump the Peanut Butter into the measuring cylinder. Then the piston moves up to send the Peanut Butter to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.
(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)

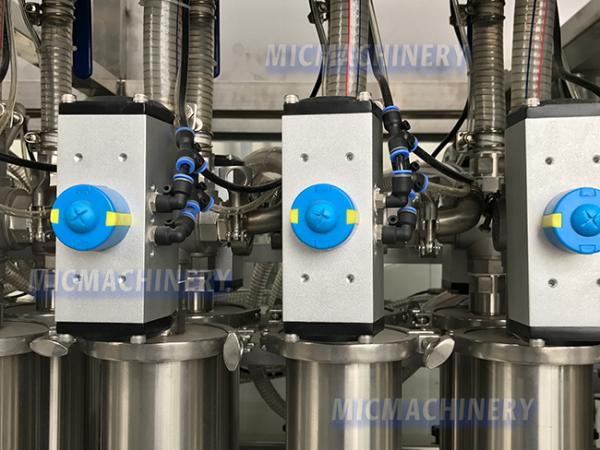

the three-way valve
the three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.
Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling

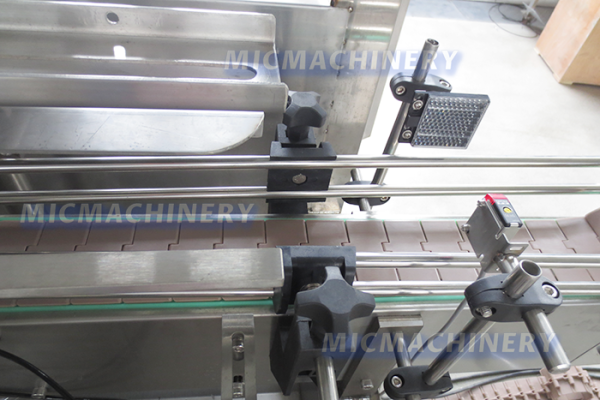

Conveyor belt
When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time .
This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved.
on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap
1. Adopt PLC programmable control system with touch screen interface.
2. Automatic bottle feeding, automatic filling, automatic bottle.
3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
4. Adopt double-ball screw rod filling the filling nozzle dive
5. It can be used with capping machine, labeling machine supporting the formation of the production line
6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.
7. Having a stable and reliable operation, high production efficiency, strong adaptability.
If you want to know more models of filling machine, you can refer to the table below:
Model |
MIC V01 |
MIC-ZF4 |
MIC-ZF6 |
MIC-ZF8 |
MIC-ZF12 |
MIC-ZF16 |
MIC-ZF20 |
Application |
High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On |
||||||
Packing Type |
Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc |
||||||
Speed |
5-25 B/M |
192-220 B/h (basis on 25L) |
1300-1500 B/h (basis on100ml bottle) |
≤1800 B/h ( basis on 1000ml bottle) |
3000B/h (basis on 350ml) |
3200 B /h |
≤4000 B/h (basis on1L bottle) |
Filling Arrange |
10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l) |
||||||
Power |
30W |
3.0Kw |
2.8kw |
3kw |
2.8kw |
2Kw |
3.0Kw |
Size |
1000*480*700 mm |
2500*1600*2500 mm |
1840*1400*2500 mm |
2000*1400*2500 mm |
1600*1400*2300 mm
|
2440*1240*2350 mm |
2800 *1400*2500 mm |
Weight |
35 Kg |
700 kg |
600kg |
1000kg |
3000Kg |
700 kg |
1000 kg |
In addition to,we have jam filling machine,jam packing machine,jam jar filling machine,jam packaging machine,manual jam filling machine,sauce filling machine,tomato sauce filling machine,hot sauce bottling machine,sauce bottling machine.
If you are more than interested in the machine ,you can contact us at market@micmachinery.com
in short, we will try our best to provide you with satisfactory service,the following is our customer feedback.
Filling head
20 heads
Filling volume range
200ml-2500ml
Production speed
≤4000 Bph basis on1L bottle
Voltage
220V/380V
Power
3.0Kw
Suitable bottle’s diameter
Ф40mm-Ф100mm
Filling error
≤±3‰
Work pressure
0.55Mpa-0.65Mpa
Size
2800mm × 1400mm× 2500mm
Weight
1000 kg
Touch screen |
Canada xinjie color |
PLC |
Schneider |
Solenoid valve |
Taiwan Airtac |
Optoelectronic system |
OPTEX |
Micro differential pressure switch |
Netherlands |
Servo motor |
Taiwan TECO |
Air source treatment |
Taiwan Airtac |
Button and low voltage electric appliance |
Schneider |
Ball screw |
Taiwan |
Reducer |
Taiwan VGM |
Switching power supply |
Taiwan meanwell |
Material |
Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel |
