Introduction:
Product Characteristics:
The Cooking Oil Filling Machine stands out with exceptional characteristics meticulously engineered for efficiency and accuracy. Crafted from high-quality materials, often stainless steel, it ensures durability while adhering to the highest standards of hygiene for food-grade applications. Featuring automated bottle feeding, precise filling, and capping mechanisms, the machine epitomizes a harmonious blend of speed and accuracy in cooking oil production. User-friendly interfaces equipped with programmable controls accommodate various bottle sizes and cooking oil viscosities, ensuring each product receives a consistent and precise fill. Anti-drip features and customizable settings preserve the quality of cooking oil formulations, delivering products that resonate with both efficiency and the promise of superior taste.
Product Applications:
The applications of the Cooking Oil Filling Machine span the entire spectrum of edible oil manufacturing, providing a comprehensive solution for efficient and automated filling of cooking oil bottles. Whether producing standard vegetable oils, olive oils, or artisanal blends, this machine ensures uniformity in dosage and presentation. Its adaptability caters to the dynamic requirements of the food industry, where each cooking oil variant requires a tailored approach to dispensing, capping, and preserving its unique flavor profile.
Mechanical Principle:
At its core, the Cooking Oil Filling Machine operates on advanced mechanical principles designed for precision, speed, and automation. Utilizing volumetric or gravimetric filling systems, filling nozzles, and capping mechanisms, the machine accurately measures and dispenses the specified quantity of cooking oil into individual bottles. Automated capping ensures a secure seal, preserving the freshness and flavor of the oil. Integrated sensors and programmable logic controllers (PLCs) oversee the entire process, ensuring uniformity, minimizing errors, and enhancing the overall efficiency of cooking oil filling operations.
In conclusion, the Cooking Oil Filling Machine symbolizes manufacturing excellence in the food industry. Its exceptional product characteristics, diverse applications, and advanced mechanical principles make it an indispensable asset for cooking oil producers globally. Embracing cutting-edge technology, this machine not only ensures the precision and speed of cooking oil filling but also upholds the highest standards of presentation, consistency, and flavor preservation. As a fundamental component in various production workflows, it continues to shape the way cooking oil products are filled, ensuring each bottle embodies the essence of automation and the promise of superior taste.

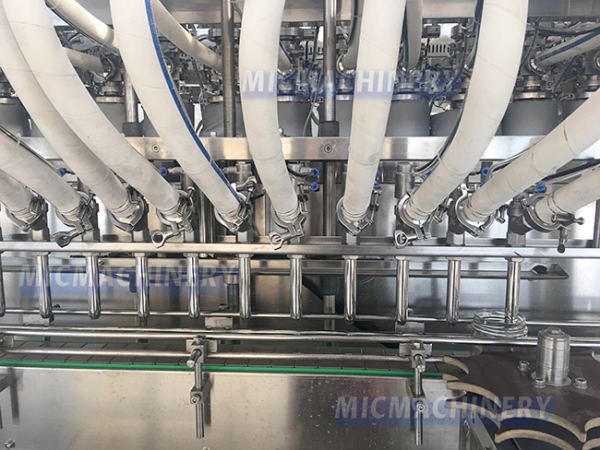

Oil filling head
The oil is put into the material cylinder, the piston to pump the oil into the measuring cylinder. Then the piston moves up to send the oil to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.
(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)

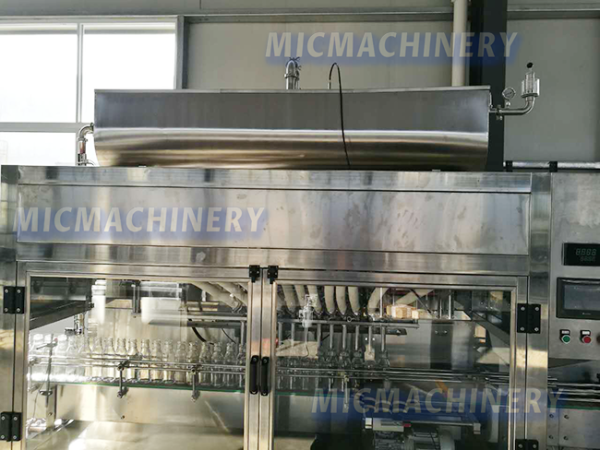

Material box
The top of the machine is the material box, the material box is used to store the materials you want to fill, his capacity is large enough to reduce the number of times you add materials, this is very convenient.In addition, it is placed on the top of the machine to effectively save you more space.
When filling, the piston moves down to take material from the material box and stops when it reaches the capacity of the cylinder, after which the piston drives to start filling

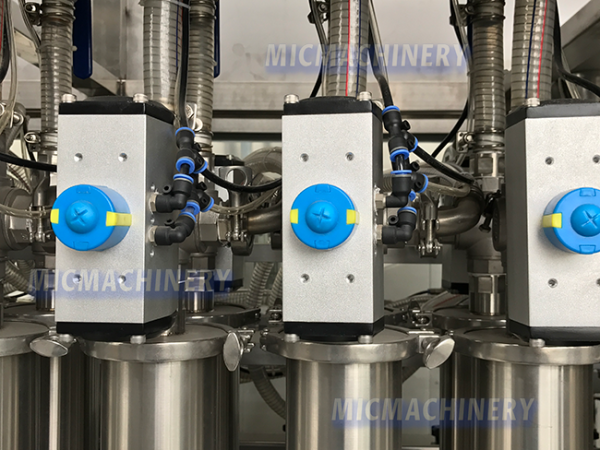

The three-way valve
The three-way valve is controlled by PLC system, The three-way valve rotates internally to adjust the connection between the material box and the measuring cylinder cylinder or the measuring cylinder cylinder and the filling pipe. Accordingly it controls the movement of materials from the material tank to the dosing cylinder and then to the filling pipe.
Main working process: downward movement of the piston to fill the material from the material cylinder to the measuring cylinder, and then controls the upward movement of the piston to send the material to the filling pipe and start filling
1. Adopt PLC programmable control system with touch screen interface.
2. Automatic bottle feeding, automatic filling, automatic bottle.
3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
4. Adopt double-ball screw rod filling the filling nozzle dive
5. It can be used with capping machine, labeling machine supporting the formation of the production line
6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.
7. Having a stable and reliable operation, high production efficiency, strong adaptability.
If you want to know more models of filling machine, you can refer to the table below:
|
Model |
Mic 18-4 |
MIC-18-6 |
MIC-ZF4 |
MIC-ZF6 |
MIC-ZF8 |
MIC-ZF12 |
MIC-ZF16 |
MIC-ZF20 |
|
Application |
vegetable oil , cooking oil , olive oil, edible oil, sunflower oil, peanut oil etc liquid like oil products, Sauce, Ketchup, Syrup, Detergent, Honey, Shampoo, Lotion, Lubricant oil, etc. |
|||||||
|
Packing Type |
Metal Cans, jar, Glass Bottle ,Plastic Bottle Etc |
|||||||
|
Speed (basis on 50-5000ml) |
1800-2200B/H |
2000-6000B/H |
2000B/h |
2500B/h |
3000 B/h |
4000B/h |
5000 B /h |
6000 B/h |
|
Filling Arrange |
10-20ML. 25-250ML. 50-1000ml, 50-500ML,0.5-2L.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l) |
|||||||
|
Power |
1.5Kw |
3Kw |
3.5Kw |
3.6kw |
3.7kw |
3.8kw |
3.9Kw |
4.0Kw |
|
Size |
2570*2300*2650 mm |
2400*1400*2500 mm |
1400*1450*2270 mm |
1400*1450*2270 mm |
1700*1450*2270 mm |
2000*1450*2270 mm
|
2300*1450*2270 mm |
2600 *1450*2270 mm |
|
Weight |
5000Kg |
2500kg |
500kg |
600kg |
700kg |
800Kg |
900 kg |
1000 kg |
In addition to,we have oil filling machine，edible oil filling machine，olive oil filling machine，cooking oil filling machine，vegetable oil filling machine，olive oil bottling machine，sunflower oil filling machine.
