Experienced supplier of lubricant filling machine,lube oil filling machine,Lubricating oil filling machine

This machine is suitable for filling a liquid and cream products, especially for high viscosity materials,lube oil, lubricating oil,butter,mayonnaise,honey,tomato sauce. the effect is obvious.

1. Adopt PLC programmable control system with touch screen interface.

2. Automatic bottle feeding, automatic filling, automatic bottle.

3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.

4. Adopt double-ball screw rod filling the filling nozzle dive

5. It can be used with capping machine, labeling machine supporting the formation of the production line

6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7. Having a stable and reliable operation, high production efficiency, strong adaptability.

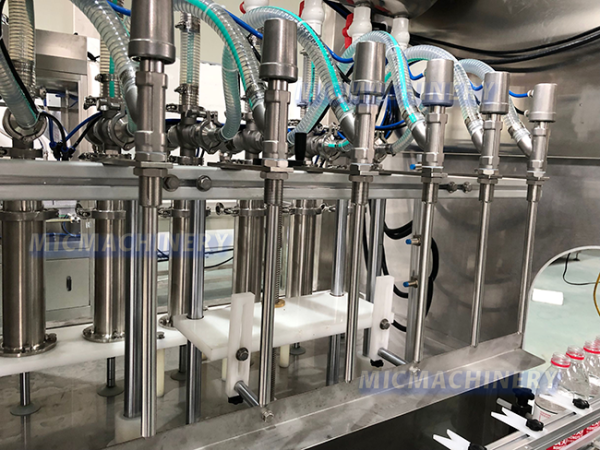

filling head

The Lubricant oil is put into the material cylinder, the piston to pump the Lubricant oil into the measuring cylinder. Then the piston moves up to send the Lubricant oil to the filling pipe. At the same time, when the bottle enters the filling machine through the conveyor belt, the filling head moves down to start filling. After filling, the conveyor belt will automatically send the bottle to the capping station.

(Filling process without drip leakage, the number of filling head can be customized according to your needs and diameter of filling head basis on the diameter of your barrel’s mouth)

Conveyor belt

When the bottle is placed on it, the conveyor belt takes the bottle into the filling machine and starts filling. After filling, it is sent out through the conveyor belt. The whole process is convenient to save time.

This conveyor belt can be different size of bottle,The width between the two pipes can be adjusted according to your container,ensure smooth bottle safely from the conveyor belt moved .

on the side of the conveyor is equipped with sensors that can automatically identify when the bottle to go out or, in order to send signals to filling station of screw cap.

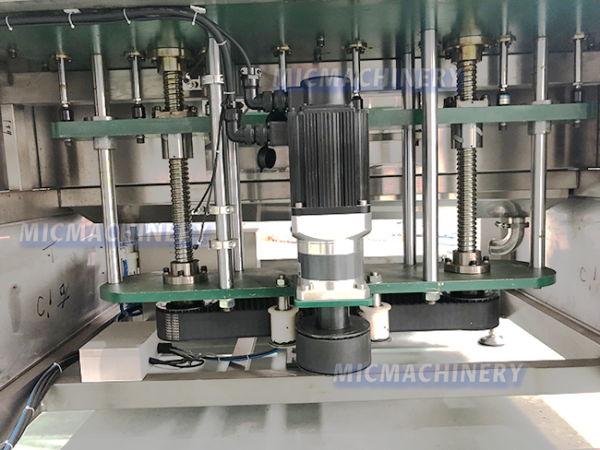

Servo motor

This filling machine adopts servo motor drive, servo motor high efficiency, small volume and relatively high power, can drive the machine more stable, smooth filling. In addition, the servo motor operation noise is small, will not cause too much noise burden to the workshop.

If you want to know more models of filling machine, you can refer to the table below:

Model	MIC V01	MIC-ZF4	MIC-ZF6	MIC-ZF8	MIC-ZF12	MIC-ZF16	MIC-ZF20
Application	High Viscosity Materials,Butter,Mayonnaise,Honey,Tomato Sauce,Cream , Liquid soap , oil product ,Lotion And So On
Packing Type	Metal Cans, jar, Glass Bottle , Bag, Plastic Bottle Etc
Speed (basis on 50-500ml)	1500 B/h	2000B/h	2500B/h	3000 B/h	4000B/h	5000 B /h	6000 B/h
Filling Arrange	10-20ML. 25-250ML. 50-1000ml, 50-500ML.100-1000ML.250-2500ML. 1000-5000ML 100ml-5L.(10ml-5l)
Power	30W	3.5Kw	3.6kw	3.7kw	3.8kw	3.9Kw	4.0Kw
Size	1000480700 mm	140014502270 mm	140014502270 mm	170014502270 mm	200014502270 mm	230014502270 mm	2600 14502270 mm
Weight	35 Kg	500kg	600kg	700kg	800Kg	900 kg	1000 kg

In addition to,If you're looking for lubricant oil filling machine,lube oil filling machine,lubricant filling machine,engine oil filling machine,motor oil filling machine,lubricant filling line,automatic engine oil filling machine,lubricant oil packing machine price,mobil oil packing machine,automatic lubricant oil filling machine,it is a pleasure for you to visit our website anytime

In short, we will try our best to provide you with satisfactory service,the following is our customer feedback.

Filling head	8 heads
Filling volume range	50-1000ml(Use 1000ml piston cylinder)
Production speed	≤1800 Bph basis on 1000ml bottle
Voltage	220v/380v
Power	3kw
Suitable bottle’s diameter	Ф40mm-Ф100mm
Filling error	≤±1‰
Work pressure	0.55Mpa-0.65Mpa
Size	2000mm × 1400mm× 2500mm
Weight	1000kg

Touch screen	Canada xinjie color
PLC	Schneider
Solenoid valve	Taiwan Airtac
Optoelectronic system	OPTEX
Micro differential pressure switch	Netherlands
Servo motor	Taiwan TECO
Air source treatment	Taiwan Airtac
Button and low voltage electric appliance	Schneider
Ball screw	Taiwan
Reducer	Taiwan VGM
Switching power supply	Taiwan meanwell
Material	Contact with the material parts of the 316 materials, and the rest of the 304 stainless steel

Car lubricate oil filling machine (MIC-ZF8 piston oil filling capping machine)
